Husqvarna CTH2642 TRE - 96051005700 (2012-04) Riding Tractor

Model: CTH2642 TRE - 96051005700 (2012-04)

Back To Assemblies

Save Part Not Listed?
product name

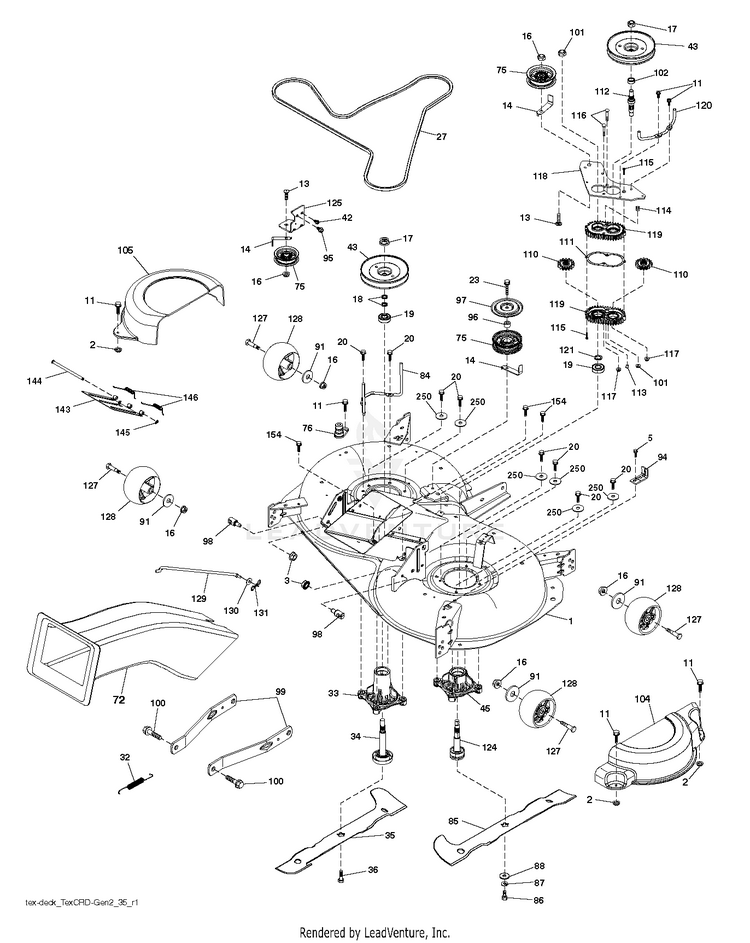

MOWER DECK / CUTTING DECK

...
...
94
BRKT.CLUTCH.CABLE HUS-532197250
...
116
Bolts HUS-594976601
...
91
GSPH HUS-596134901
...
131
PIN.COTTER.5/16.BOW TI HUS-532194208
...
115
SCREW.TORX#10-24X1 HUS-583608901
...
110
CRD.SPUR.GEAR HUS-587934801
...
121
WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
42
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
100
BOLT.SHOULDER HUS-532196539
...
20
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
- -
KIT,MANDREL,NONGREASE,REVOL MANDREL ASSEMBLY TALL PART NO. 580856001 (Includes Housing (key #33), (Shaft key #34) and (Bearing key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-587820201
...
23
BOLT HUS-599972501
...
84
KEEPER.BELT.MANDREL PULLEY HUS-583567901
...
127
Bolts HUS-596434404
...
19
BEARING HUS-532110485
...
118
ARM.CLUTCHING.107.TEX.CRD HUS-583567701
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
97
SHIELD.IDLER.MOWER.CRD. HUS-583119101
...
43
PULLEY.MANDREL.5.438 PD HUS-583568201
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
125
IDLER.BRACKET.ASM. HUS-583548001
...
75
CLG HUS-597025001
...
2
PALNUT 1/4 HUS-532423062
...
112
SHAFT.CRD.GEARCASE.ADAPTER HUS-583571601
...
1
DECK SVCX 107HP EZMUL 498 HUS-581928401
...
120
KEEPER.RH.MANDREL.BELT HUS-583568001
...
154
SCREW.1/4-20X.50-0T30 HUS-583254901
...
32
SPRING.DRVE.107&97CM.ELEC.DECK HUS-583584001
...
146
SPRING.EZ.MULCH.DOOR HUS-583582001
...
104
COVER.MANDREL.107.RH.GEN.2 HUS-581714001
...
27
BELT.ELECT.MOWER.DRIVE 97.8 EL HUS-532445887
...
85
BLADE.107.RH.SINGLE.NON.QD HUS-581518001
...
- -
MANDREL.ASM.SHORT.LH/THD. MANDREL ASSEMBLY SHORT PART NO. 58086901 (Includes Housing (key #45), Shaft Assembly (key #124), and Bearing (key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-581650501
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
86
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
130
GSPH HUS-596134901
...
88
WASHER.BLADE HUS-532140296
...
76
PORT.WASHOUT HUS-532415598
...
119
GEAR.CASE.SUBASM. HUS-583527601
...
98
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
145
E-RING.5/16" HUS-532437988
...
45
MANDREL.ASM.SHORT.LH/THD. HUS-581650501
...
124
MANDREL.ASM.SHORT.LH/THD. HUS-581650501
...
99
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
117
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
72
CHUTE.SLOTTED.HOLES.TEX.CRD.II HUS-581454103
...
101
Hardware HUS-596040601
...
128
WHEEL.GAUGE.RALLY HUS-589527301
...
17
Nuts HUS-596134801
...
35
BLADE.107.LH.SINGLE.NON.QD HUS-581517901
...
113
1/8-27.NPT.OIL.PLUG HUS-583533001
...
34
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
13
GSPW Bolts HUS-596136101
...
87
Washers HUS-596238701
...
102
SPACER BEARING HUS-532402511
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
250
WASHER HUS-819111212
...
96
SPACER.NORAM.CRD HUS-583261101
...
144
PIN.HINGE HUS-583507401
...
143
DOOR.EZ.MULCH.107.CRD HUS-583527801
...
105
COVER.MANDREL.107.LH.GEN.2 HUS-532444755
...
--
NEEDS DESCRIPTION HUS-583911901
...
114
VENT.BREATHER.1/8 NPT HUS-588170501
...
3
GSPW Nuts HUS-596135701
...
111
GASKET.GEARCASE.97.CRD (2 2) HUS-583514001
...
95
SCREW, 3/8-16X3/4 HUS-817000612
...
33
KIT,MANDREL,NONGREASE,REVOL HUS-587820201
...
129
ROD.SWAY.97&107.CRDI&II HUS-583568101
...
14
Keepers HUS-597024901
