Husqvarna CTH2642 TRE - 96051005700 (2012-04) Riding Tractor

Husqvarna CTH2642 TRE - 96051005700 (2012-04) Riding Tractor

Model: CTH2642 TRE - 96051005700 (2012-04)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Screw Hexagon Head Tapping Srw HUS-596321701

Screw 3/8-16X1-1 1/4 HUS-817060620

Screw 3/8-16X1 5Smgml Tap/Rb HUS-817000616

Keeper HUS-596501502

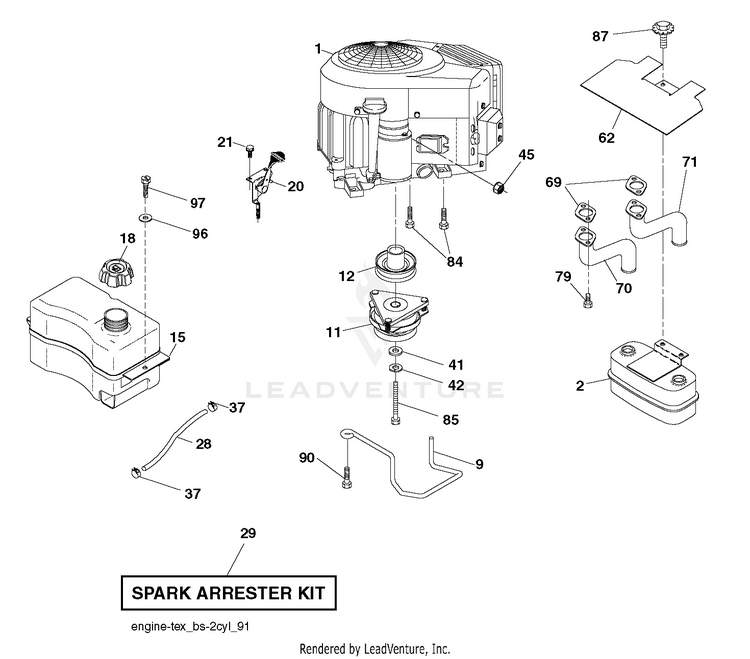

ENGINE

20

CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502

71

EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001

12

PULLEY.ENGINE.TUFFTORQ HUS-532405097

90

SCREW 3/8-16X1 HUS-817000616

41

WASHER HUS-532126197

42

Washers HUS-596238901

84

SCREW.3/8-16 HUS-817060620

97

SPILL.CUP HUS-532441461

11

KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336

15

TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101

85

BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501

29

KIT.SPARK ARRESTOR 794945 B&S HUS-532137180

18

CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501

96

Washers HUS-596135301

37

HOSE CLAMP HUS-532123487

9

Keepers HUS-596501502

87

BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877

28

HOSE 1/4" LOW PERMEATION FUEL HUS-587044820

45

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

21

Screws HUS-596321701

79

Screws HUS-596134202

70

EXHAUST.TUBE.LH.BS/TWIN HUS-581881101

1

ENGINE B&S MODEL NO. 44P777-1573-G5 HUS-000000000

69

GASKET.MUFFLER HUS-532165391

62

SERVICE KIT HEAT SHIELD HUS-531154901

2

MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
