Husqvarna CTH2642 TE - 96061033800 (2011-05) Riding Tractor

Model: CTH2642 TE - 96061033800 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

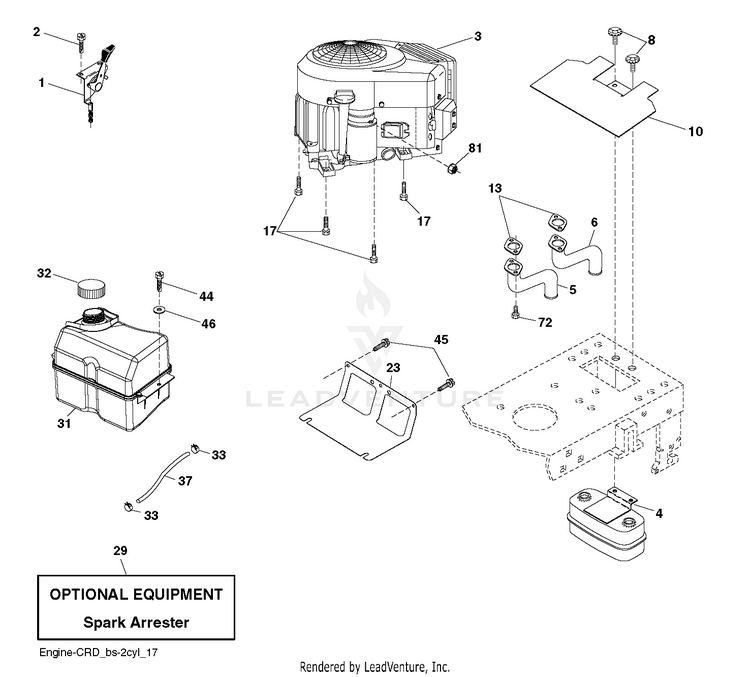

ENGINE

...
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
6
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
31
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
23
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
13
GASKET.MUFFLER HUS-532165391
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
72
Screws HUS-596134202
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
17
SCREW.3/8-16 HUS-817060620
...
1
CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
3
ENGINE B&S MODEL 44P777-1573-G5 (442257) HUS-000000000
...
2
Screws HUS-596321701
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
46
Washers HUS-596135301
...
33
HOSE CLAMP HUS-532123487
