Husqvarna CTH2642 TE - 96061033800 (2011-05) Riding Tractor

Model: CTH2642 TE - 96061033800 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

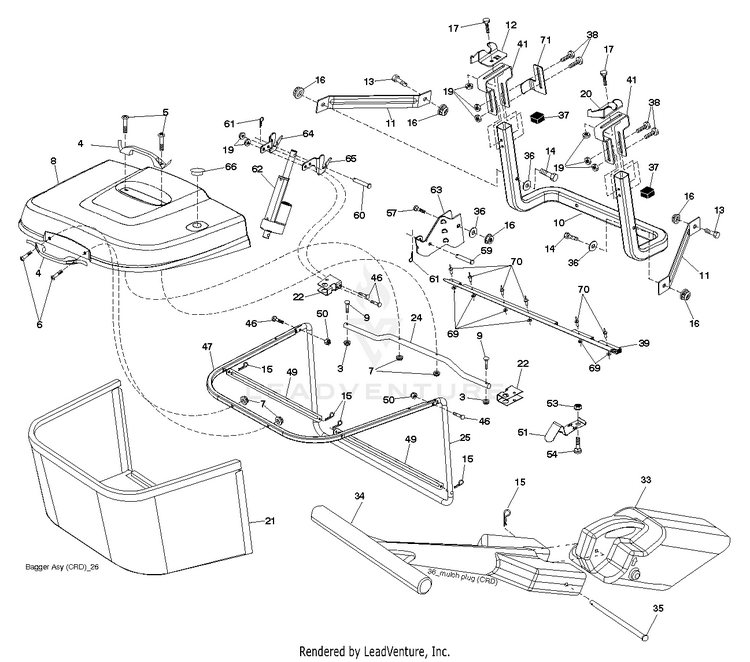

BAGGER

...
...
17
GSPW Bolts HUS-595901601
...
10
TUBE.SUPPORT.BAGGER.CRD HUS-583110201
...
59
HUS-532430422
...
62
HUS-532428239
...
6
SCREW HUS-532750029
...
69
MEGA-FIRE ELECTR HUS-575180801
...
21
BAGGER.ASM.CRD.2007 HUS-532406180
...
60
BAGGER SWAGE TUBE HANDLE ASSY HUS-579785402
...
19
GSPW Nuts HUS-596135701
...
49
BAR.SPREADER.BAGGER.CRD HUS-583208201
...
36
GSPH HUS-596134901
...
41
BRACKET.BAGGER.SD.ELECTRIC.CRD HUS-532432755
...
50
Hardware HUS-596040501
...
11
BRACKET.SUPPORT.UPPER.BAG.CRD HUS-532165719
...
24
TUBE.PIVOT.BAG.CRD.BLACK HUS-532165783
...
12
BRKT.PIVOT.LH.CRD HUS-583173701
...
37
Plug Support Bagger CRD HUS-532175401
...
54
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
39
SEAL.BAGGER.CRD HUS-532416257
...
33
MULCHING.PLUG.107.CRD.(2 2) HUS-532428683
...
20
BRKT.PIVOT.RH.CRD HUS-532188847
...
7
NUT HUS-873401000
...
64
HUS-532438311
...
47
TUBE.UPPER.BAGGER.CRD HUS-583211501
...
5
SCREW.PAN.HEAD HUS-874981024
...
38
BOLT.5/16-18X2.5 HUS-872010520
...
9
Bolt Carriage 1/4-20 x 2.25d x Gr.5 HUS-872140418
...
65
HUS-532438312
...
4
HANDLE.BAGGER.W/LVRS.BLK.CRD HUS-532169916
...
71
HUS-532438313
...
25
TUBE.FRONT.BAGGER.CRD HUS-583211601
...
8
BAGGER.COVER.SEAL.ASM.CRD.668 HUS-532441587
...
70
RIVET.POP.125X.750 HUS-583506001
...
14
Bolts HUS-596564404
...
34
HANDLE.MULCHER.92.CRD (2 2) HUS-532165570
...
13
BOLT HUS-874760612
...
35
PIN HUS-532165572
...
46
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
57
BOLT HUS-872110622
...
51
SERVICE KIT LATCH.SPRING.BAGGE HUS-529846601
...
15
RETAINER-SPRNG RB HUS-532124670
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
3
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
22
BRACKET.BAGGER.SD.ELECTRIC.CRD HUS-532428236
...
66
HUS-532430424
...
61
RETAINER M HUS-532004497
...
53
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
63
HUS-532428238
