Husqvarna CTH2642 TE - 96061033800 (2011-05) Riding Tractor

Model: CTH2642 TE - 96061033800 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS / FRAME

...
...
5
BUMPER DASH HUS-532407590
...
170
HUS-532199488
...
186
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
198
NUT HUS-532168937
...
171
Bolts HUS-596337801
...
214
SIDE.TRIM.RH.GT.HUSQ.II HUS-532439730
...
306
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
163
BRKT.EXTEN.CHASSIS.RH.CRD HUS-583100901
...
28
Grilles HUS-597247201
...
25
GSPH HUS-596134901
...
213
SIDE.TRIM.LH.GT.HUSQ.II.GRAY HUS-532439729
...
13
PANEL DASH RH HUS-532178298
...
33
FOOTREST.LH.BLACK HUS-532182507
...
295
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
17
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
31
BRACKET SUPPORT FENDER HUS-532165156
...
258
LENS.HEADLIGHT.RH.GTII.2011 HUS-532443385
...
155
HUS-532408691
...
58
AIR.DUCT.GTV.BLACK HUS-532439774
...
24
Bolts HUS-596564401
...
154
HUS-532408690
...
278
Screws HUS-596321701
...
264
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH HUS-587464501
...
179
ROD.PIVOT.FBI.CRD HUS-583100601
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
2
DRAWBAR.CRD HUS-583101001
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
175
DOOR.TRAP.FBI.CRD.2004 HUS-583707801
...
9
NEEDS DESCRIPTION HUS-532442698
...
305
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
--
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
26
Nuts HUS-596322601
...
15
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
256
COVER FENDER CRD HUS-532181361
...
89
CONSOLE.CRD.AUTO.GRY HUS-532441574
...
1
CHASSIS HUS-532174620
...
185
KNOB.BRAKE.PARKING.ROD HUS-532441416
...
145
ROD.PIVOT.HOOD HUS-532409167
...
273
VENT.SIDE.LH.GT.HUSQ.II.498 HUS-532439727
...
216
SCREW 14-20 X 5/8 HUS-817060410
...
165
COVER.BATTERY.BAG.ELE.CRD.498 HUS-532441772
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
--
PLUG HUS-532187801
...
64
HUS-532199395
...
30
FENDER.PNT.CRD.MS-668 HUS-532441265
...
6
SADDLE.FLAT.LT/YT/CRD.2003 HUS-583133601
...
263
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH HUS-587464801
...
39
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
11
PANEL DASH LH HUS-532167203
...
10
Bolts HUS-596728201
...
189
LOCKWASHER #10 HUS-810071000
...
205
Bolts HUS-596564001
...
272
VENT.SIDE.RH.GT.HUSQ.II. HUS-532439728
...
265
SEAL.SIDE.RH.BAGGER.CRD HUS-583146701
...
297
CLIP.RETAINER.TINNER. HUS-532199145
...
38
BRACKET ARM.PIVOT.REAR HUS-583117401
...
34
FOOTREST.RH.BLACK HUS-532182508
...
18
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
164
SUPPORT HUS-532165605
...
8
CLIP,INSULATOR HUS-532126471
...
37
Screws HUS-596030701
...
299
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
162
BRKT.EXTEN.CHASSIS.LH.CRD HUS-583100801
...
16
Hardware HUS-596040501
...
190
Screws HUS-596039001
...
69
Screws HUS-596134101
...
35
Bolts HUS-596136001
...
187
Nuts HUS-596987401
...
172
GSPH HUS-596134901
...
173
NUT HUS-873510600
...
266
SIDE.SEAL.LH.BAGGER.CRD HUS-583146601
...
188
WASHER HUS-819061216
...
259
LENS.HEADLIGHT.LH.GTII.2011 HUS-532439733
...
184
BRACKET.ACTUATOR.BAGGER.SRD HUS-532174662

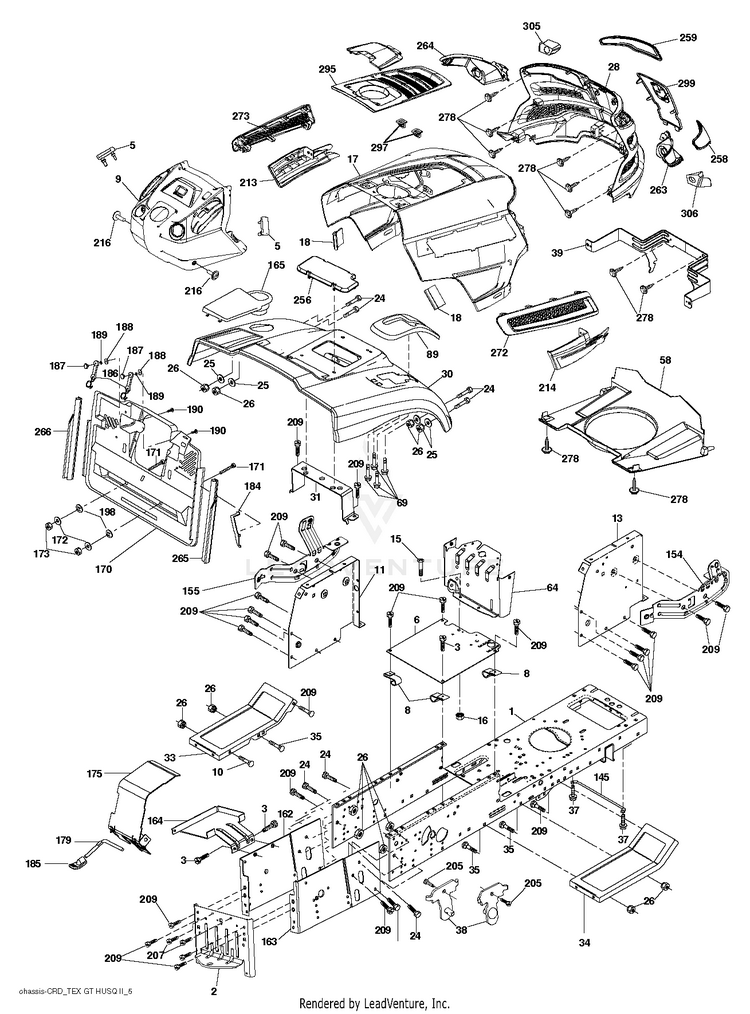

Schematic Image Zoomed
