Husqvarna CTH224 T - 96051003500 (2012-02) Riding Tractor

Model: CTH224 T - 96051003500 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

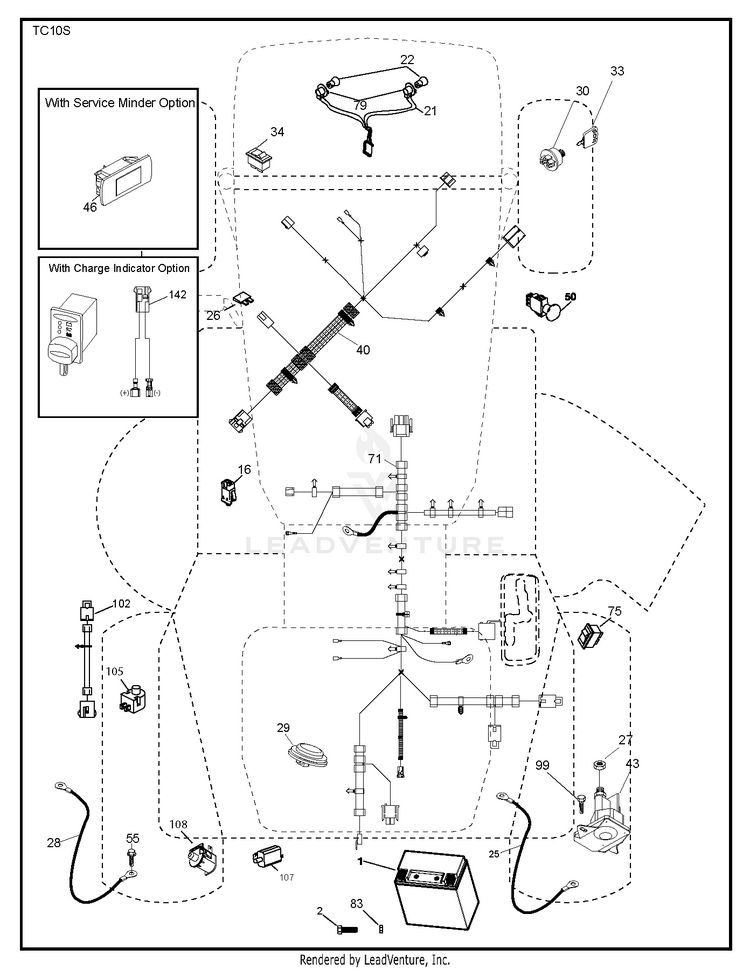

ELECTRICAL

...
...
1
AGM BATTERY HUS-536147701
...
79
BULB HOLDER ASM. HUS-532175242
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
71
HARNESS.CH.TCRD.HYD.TWIN.ELD HUS-580688901
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
2
Bolts HUS-596320101
...
99
Screws HUS-596437001
...
22
LIGHTBULB HUS-532004152
...
105
REVERSE SWITCH HUS-532407568
...
108
SWITCH.SNAPMOUNT.NC HUS-532421062
...
25
CABLE.RED.20.8AWG.M6.CRD HUS-583556401
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
102
HARNESS.JUMPER.TT.TEXCRD HUS-583555601
...
142
CTEK CHARGE PORT W/HARNESS HUS-583593501
...
43
Solenoids HUS-582042802
...
107
SWITCH.FBI.CRD HUS-583100701
...
34
SWITCH LT HUS-532110712
...
75
SWITCH.BAG.DUMP HUS-583575501
...
28
CABLE.BLACK.20.8AWG.M6.CRD HUS-583556501
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
83
NUT SQUARE M6, 11X8.5 ZPB HUS-594086501
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
40
HUS-532448036
...
26
FUSE 20AMP HUS-532175158
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
