product name

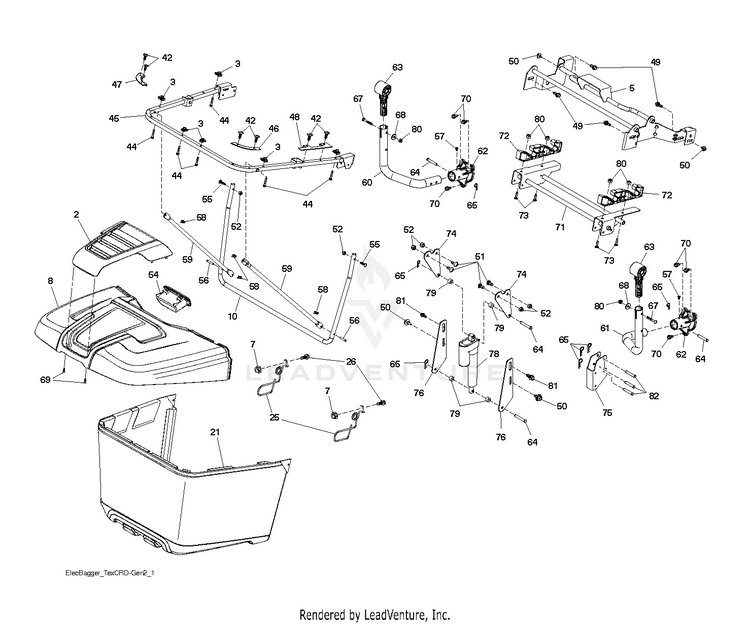

Husqvarna CTH224 T - 96051003500 (2012-02) Riding Tractor

Model: CTH224 T - 96051003500 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

BAGGER

...
...
73
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
44
SCREW HUS-532199687
...
52
Hardware HUS-596040501
...
57
SCREW.1/4-20X.50-0T30 HUS-583254901
...
59
BAGGER SPRD.TUBE.TEX.CRD.GEN2 HUS-583826601
...
2
APPLIQUE BAGGER HUS-583765001
...
82
HUS-877101236
...
47
LH.BAG.CRNER.CLOSE-OUT.TEXCRD HUS-583573001
...
46
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD HUS-583580501
...
54
BAGGER TOP.FRONT.HANDLE HUS-583827701
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
51
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
67
HUS-532448039
...
80
GSPW Nuts HUS-596135701
...
10
BAGGER.FRAME.LOW.UTUBE.TEX.CRD HUS-583825801
...
69
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
8
HUS-580436801
...
64
HUS-532430422
...
56
PIN.CLEVIS.183 HUS-532420306
...
55
Bolts HUS-596030801
...
68
WASHER HUS-819111610
...
45
TCRD.-GEN2.UPPR.U.FRAME.WLDMT HUS-583570301
...
78
HUS-532445257
...
70
SCREW, 3/8-16X3/4 HUS-817000612
...
79
NYLN.SPCR.375 X .75 X .4375.L HUS-583590601
...
42
CHRISTMAS.TREE.CLIP HUS-583548101
...
21
BAGGER.ASM.FABRIC.CRD.GII.HUSQ HUS-581337103
...
60
HUS-532444105
...
74
HUS-532445243
...
75
HUS-532445245
...
61
HUS-532444106
...
25
LATCH.BAG.CRD.GEN2 HUS-583580301
...
71
HUS-532445238
...
72
HUS-532445236
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
48
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII HUS-583573101
...
81
SHOULDER BOLT 5/16-18TT HUS-532170165
...
50
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
76
HUS-532445244
...
49
BOLT, SHOULDER 5/16-18 HUS-532171873
...
58
RETAINER CLIP PM HUS-532085179
...
62
HUS-532444542
...
3
1/4-20 U NUT HUS-532174814
...
63
GRASS BAG N/A BAGGER.PIVOT.EL HUS-583826401
...
65
RETAINER M HUS-532004497
...
5
HUS-532445248
