Husqvarna CTH224 T - 96051003500 (2012-02) Riding Tractor

Model: CTH224 T - 96051003500 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

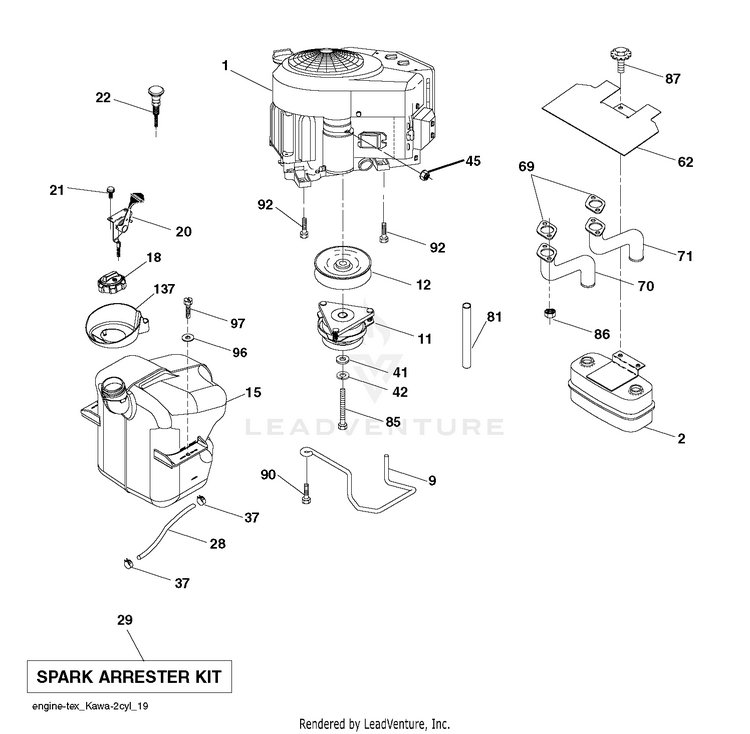

ENGINE

...
...
42
Washers HUS-596238901
...
69
GASKET HUS-532178151
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
18
CAP.ASM.FUEL.2.25"TOP.TURN HUS-532441462
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
37
HOSE CLAMP HUS-532123487
...
90
SCREW 3/8-16X1 HUS-817000616
...
1
ENGINE KAWASAKI MODEL NO. FS651V-BS50 (445368) HUS-000000000
...
21
Screws HUS-596321701
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
96
Washers HUS-596135301
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
15
TANK.ASSY.XTERNAL.FILL.GT2.TEX HUS-583507201
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
9
Keepers HUS-596501502
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
97
SPILL.CUP HUS-532441461
...
41
WASHER HUS-532126197
...
11
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
137
SPILL.CUP HUS-532441461
...
92
SCREW 3/8-16X1 HUS-817120616
