Husqvarna CTH2038 - 96061030401 (2010-06) Riding Tractor

Model: CTH2038 - 96061030401 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

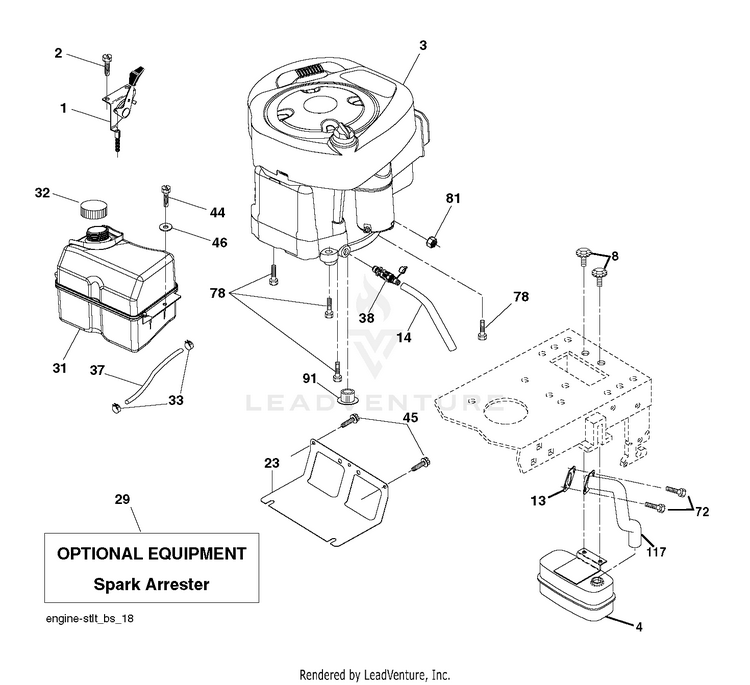

ENGINE

...
...
3
ENGINE B&S 33M677-1494-B1 HUS-000000000
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
4
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
78
SCREW.3/8-16 HUS-817060620
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
72
Screws HUS-596134201
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
1
CONTROL.TH/CK.C.BLACK HUS-532176636
...
117
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
91
BUSHING.1.375OD HUS-532187495
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
38
VALUE.OIL.DRAIN HUS-532428287
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
46
Washers HUS-596135301
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
2
Screws HUS-596321701
...
31
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
33
HOSE CLAMP HUS-532123487
