Husqvarna CTH200 - 96061022701 (2008-11) Riding Tractor

Model: CTH200 - 96061022701 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

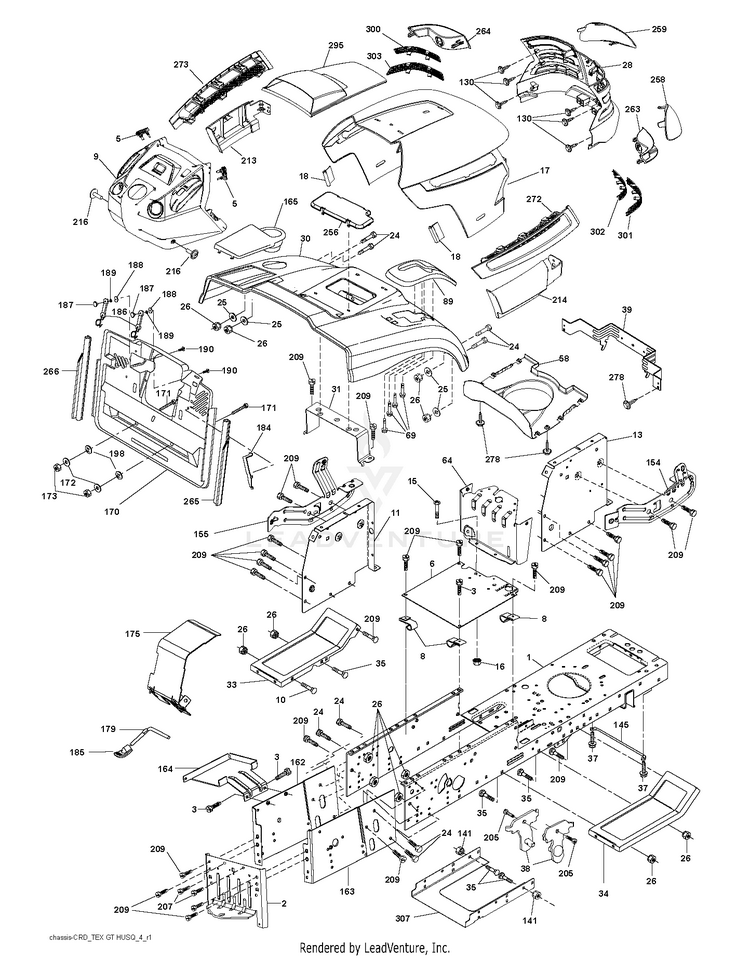

CHASSIS & ENCLOSURES

...
...
179
ROD.PIVOT.FBI.CRD HUS-583100601
...
34
FOOTREST.RH.BLACK HUS-532182508
...
173
NUT HUS-873510600
...
165
COVER.BATT.CUPHOLDER.CRD HUS-532441516
...
170
HUS-532199488
...
10
Bolts HUS-596728201
...
272
VENT.SIDE.HOOD.HUSQ.RH.GREY HUS-532403048
...
37
Screws HUS-596030701
...
162
BRKT.EXTEN.CHASSIS.LH.CRD HUS-583100801
...
213
SKIRT.HOOD.SIDE.HUSQ.LH.GREY HUS-532401711
...
205
Bolts HUS-596564001
...
273
VENT.SIDE.HOOD.HUSQ.LH.GRAY HUS-532403076
...
304
SCREW 14-20 X 5/8 HUS-817060410
...
300
INSERT.HEX.GRILL.HUSQ. HUS-532199131
...
172
GSPH HUS-596134901
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
43
LENS.RH.TEX.GT.HUSQ.CL HUS-532198906
...
11
PANEL DASH LH HUS-532167203
...
184
BRACKET.ACTUATOR.BAGGER.SRD HUS-532174662
...
9
NEEDS DESCRIPTION HUS-532408911
...
186
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
69
Screws HUS-596134101
...
189
LOCKWASHER #10 HUS-810071000
...
171
Bolts HUS-596337801
...
64
HUS-532199395
...
30
CONSOLE.CRD.AUTO.GRY HUS-532197376
...
16
Hardware HUS-596040501
...
278
Screws HUS-596321701
...
190
Screws HUS-596039001
...
42
LENS.LH.TEX.GT.HUSQ.CL HUS-532198907
...
39
HOOD PIVOT BRACKET HUS-532410250
...
155
HUS-532408691
...
17
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
266
SIDE.SEAL.LH.BAGGER.CRD HUS-583146601
...
301
INSERT.HEX.GRILL.HUSQ.GREY HUS-532199130
...
154
HUS-532408690
...
256
COVER FENDER CRD HUS-532181361
...
26
Nuts HUS-596322601
...
24
Bolts HUS-596564401
...
187
Nuts HUS-596987401
...
263
BEZEL.RH.TEX.GT.HUSQ HUS-532197198
...
302
INSERT.HEX.GRILL.HUSQ. HUS-532199132
...
58
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
163
BRKT.EXTEN.CHASSIS.RH.CRD HUS-583100901
...
214
SKIRT.HOOD.SIDE.HUSQ.RH.GREY HUS-532401709
...
33
FOOTREST.LH.BLACK HUS-532182507
...
265
SEAL.SIDE.RH.BAGGER.CRD HUS-583146701
...
25
GSPH HUS-596134901
...
13
PANEL DASH RH HUS-532178298
...
145
ROD.PIVOT.HOOD HUS-532409167
...
5
BUMPER DASH HUS-532407590
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
295
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
31
BRACKET SUPPORT FENDER HUS-532165156
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
185
HUS-532181101
...
2
DRAWBAR.CRD HUS-583101001
...
28
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
164
SUPPORT HUS-532165605
...
307
NEEDS DESCRIPTION HUS-532420919
...
6
SADDLE.FLAT.LT/YT/CRD.2003 HUS-583133601
...
303
INSERT.HEX.GRILL.HUSQ. HUS-532199133
...
15
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
89
CONSOLE.CRD.AUTO.GRY HUS-532441574
...
188
WASHER HUS-819061216
...
1
CHASSIS HUS-532174620
...
18
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
198
NUT HUS-532168937
...
8
CLIP,INSULATOR HUS-532126471
...
141
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
175
DOOR.TRAP.FBI.CRD.2004 HUS-583707801
...
35
Bolts HUS-596136001
...
264
BEZEL.LH.TEX.GT.HUSQ HUS-532197199
...
38
BRACKET ARM.PIVOT.REAR HUS-583117401
