Husqvarna CTH200 - 96061022600 (2007-10) Riding Tractor

Model: CTH200 - 96061022600 (2007-10)

Back To Assemblies

Save Part Not Listed?
product name

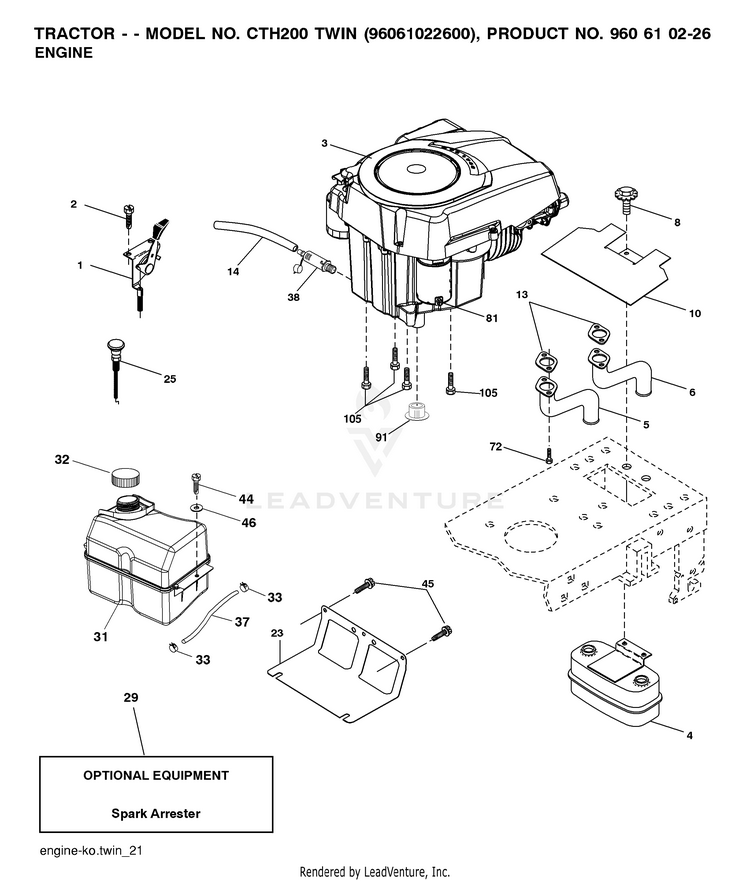

ENGINE

...
...
31
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
5
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
2
Screws HUS-596321701
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
25
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
72
Screws HUS-596134201
...
1
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
105
SCREW 3/8-16X1 HUS-817120616
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
13
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
33
HOSE CLAMP HUS-532123487
...
46
Washers HUS-596135301
...
38
VALUE.OIL.DRAIN HUS-532428287
...
6
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
91
BUSHING.1.375OD HUS-532187495
