product name

Husqvarna CTH172 - 96061000501 (2005-04) Riding Tractor

Model: CTH172 - 96061000501 (2005-04)

Back To Assemblies

Save Part Not Listed?
product name

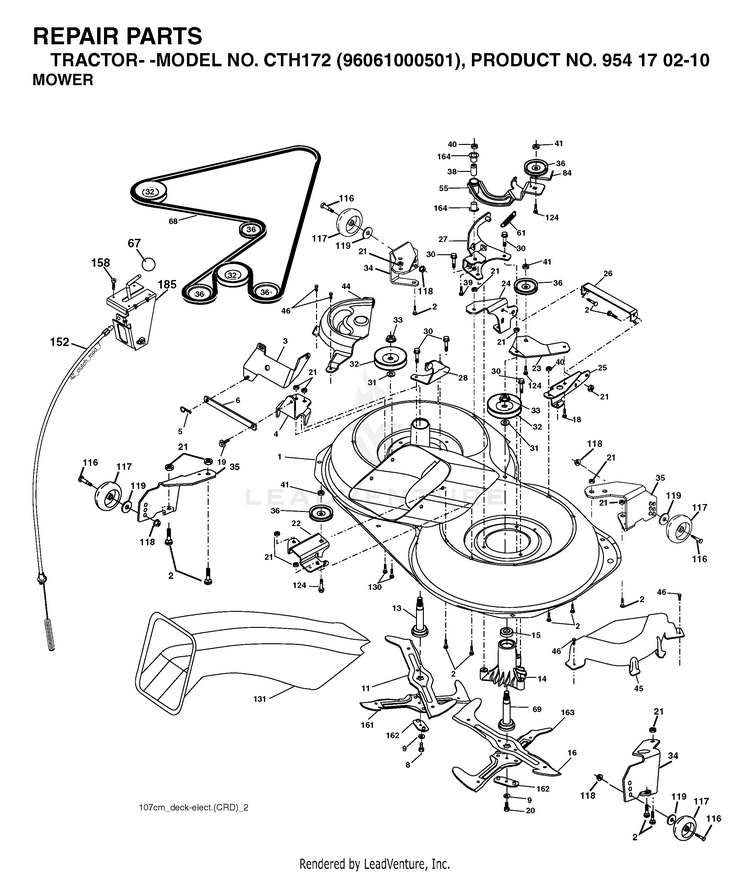

MOWER DECK / CUTTING DECK

...
...
2
GSPW Bolts HUS-595901601
...
6
BAR.SWAY.92.CRD HUS-532165557
...
35
NEEDS DESCRIPTION HUS-532176292
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
11
BLADE.3N1.LH.CRD HUS-532180583
...
- -
MANDREL SAM.CRD.LH.THRD HUS-583118301
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
27
BRACKET HUS-532169172
...
162
HUS-532180878
...
41
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
19
BOLT SHD 5/16-18 HUS-532132827
...
152
HUS-532176074
...
158
Screws HUS-596437001
...
25
BRACKET.SUSPENSION.RF.107.CRD HUS-532169171
...
164
BEARING.STEERING.COLUMN HUS-532003366
...
39
BOLT HUS-872110622
...
84
Keepers HUS-597024901
...
55
SERVICE KIT ARM.IDLER ARM.IDLE HUS-531149401
...
22
BRACKET.IDLER.RR.107.CRD HUS-532169165
...
9
Washers HUS-596238701
...
- -
MANDREL.ASM.CRD HUS-583118201
...
28
BRACKET.ASM.SUSP.LR.107.CRD HUS-583029401
...
44
NEEDS DESCRIPTION HUS-532175538
...
21
Hardware HUS-596040501
...
- -
NEEDS DESCRIPTION HUS-532181770
...
117
WHEEL GAGE DONUT HUS-532133957
...
38
SPACER HUS-532169851
...
3
BRACKET HUS-532165569
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
15
BEARING HUS-532110485
...
23
BRACKET HUS-532169166
...
32
NEEDS DESCRIPTION HUS-532175707
...
34
NEEDS DESCRIPTION HUS-532179509
...
131
CHUTE BAGGER HUS-532165661
...
4
BRACKET HUS-532169167
...
118
Nuts HUS-596322601
...
163
BLADE.CROSS.RH.CRD.107 HUS-532180425
...
18
Bolts HUS-596136001
...
61
NEEDS DESCRIPTION HUS-532175159
...
26
BRACE.SUSP.FRONT.CRD/36.2006 HUS-583259301
...
1
Housing Asm. Mower 107 CRD HUS-532169160
...
8
BOLT.3/8-24X1.25 GR8 HUS-583116901
...
119
GSPH HUS-596134901
...
40
Nuts HUS-596322601
...
116
Bolts HUS-596434404
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
69
SHAFT.ASM.W/LWR.BRG.RH.THREAD HUS-532165482
...
13
KIT MANDREL W/NUT HUS-532137646
...
20
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
68
DRIVE BELT HEX-BELT 107 MOWER HUS-547597001
...
24
BRACKET HUS-532169170
...
33
Nuts HUS-596134801
...
36
PULLEYS HUS-593787801
...
130
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
161
HUS-532180424
...
124
GSPW Bolts HUS-596136101
...
45
COVER.MANDREL.RH.CRD HUS-532175539
...
5
RETAINER-SPRNG RB HUS-532124670
...
16
BLADE.3N1.RH.CRD HUS-532180584
