Husqvarna CTH164 T - 96051003100 (2011-11) Riding Tractor

Model: CTH164 T - 96051003100 (2011-11)

Back To Assemblies

Save Part Not Listed?
product name

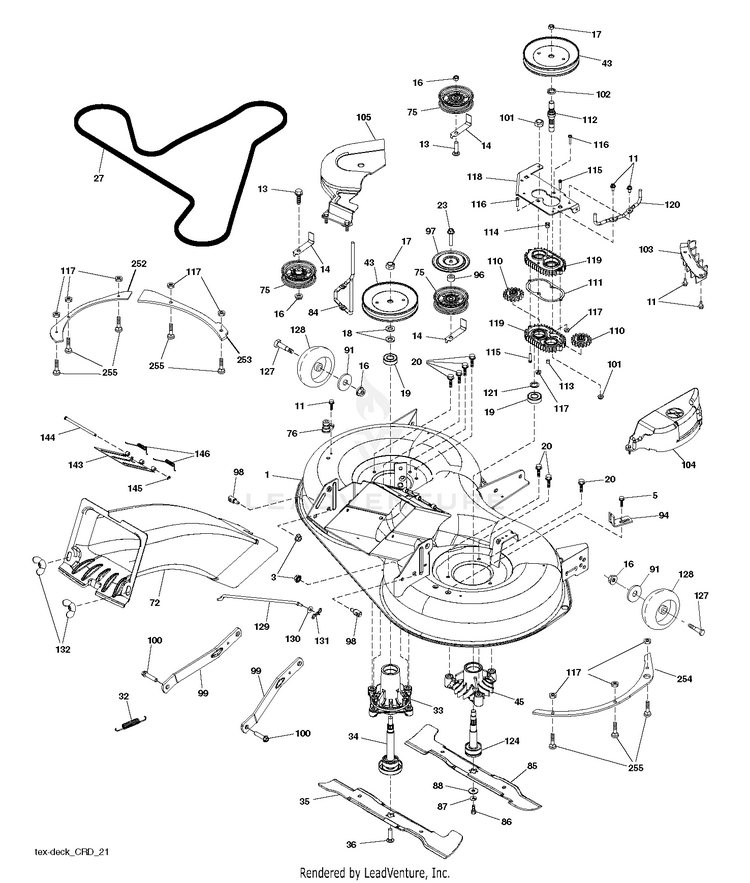

MOWER DECK / CUTTING DECK

...
...
84
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
100
BOLT.SHOULDER HUS-532196539
...
115
SCREW.TORX#10-24X1 HUS-583608901
...
75
CLG HUS-597025001
...
113
1/8-27.NPT.OIL.PLUG HUS-583533001
...
254
PLATE.REINFORCEMENT.LHS.X431 HUS-585309005
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
112
HUS-532436988
...
145
E-RING.5/16" HUS-532437988
...
34
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
33
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
96
SPACER.NORAM.CRD HUS-583261101
...
130
GSPH HUS-596134901
...
1
KIT.SVC.DECK.WLD.97.EZ_MUL.428 HUS-547664501
...
118
ARM.CLUTCHING.97.TEX HUS-583514401
...
114
VENT.BREATHER.1/8 NPT HUS-588170501
...
104
HUS-532441479
...
35
BLADE.3N1.LH.CRD.97 HUS-532427984
...
117
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
87
Washers HUS-596238701
...
121
WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101
...
17
Nuts HUS-596134801
...
13
GSPW Bolts HUS-596136101
...
103
GUARD.FRONT.VENT.97.CRD HUS-583514601
...
43
PULLEY.MANDREL.5.438.P HUS-532195945
...
45
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
143
DOOR.MULCH HUS-583505301
...
72
CHUTE.SLOTTED.HOLES.TEX.CRD.II HUS-581454103
...
105
HUS-532441478
...
132
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
14
Keepers HUS-597024901
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
20
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
144
PIN.HINGE HUS-583507401
...
91
GSPH HUS-596134901
...
19
BEARING HUS-532110485
...
102
SPACER BEARING HUS-532402511
...
111
GASKET.GEARCASE.97.CRD (2 2) HUS-583514001
...
131
PIN.COTTER.5/16.BOW TI HUS-532194208
...
120
KEEPER.BELT.RH.MANDREL.97.CRD HUS-583514501
...
110
CRD.SPUR.GEAR HUS-587934801
...
127
Bolts HUS-596434404
...
86
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
255
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
253
PLATE.REINFORCEMENT.LHS.X431 HUS-585308805
...
98
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
101
Hardware HUS-596040601
...
128
WHEEL.GAUGE.RALLY HUS-589527301
...
85
BLADE.3N1.RH.CRD.97 HUS-532427985
...
76
PORT.WASHOUT HUS-532415598
...
119
GEAR.CASE.SUBASM. HUS-583527601
...
27
BELT.97CM.ELECTRIC HUS-583581401
...
- -
KIT.MANDREL.NONGREASE.TALL NOT SHOWN HUS-587819701
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
116
Bolts HUS-594976601
...
88
WASHER.BLADE HUS-532140296
...
124
MANDREL SHAFT NON/GREASEABLE HUS-583514201
...
146
SPRING.EZ.MULCH.DOOR HUS-583582001
...
32
SPRING.DRVE.107&97CM.ELEC.DECK HUS-583584001
...
252
PLATE.REINFORCEMENT.X431 HUS-585308705
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
129
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
3
GSPW Nuts RH HUS-596135701
...
23
BOLT HUS-599972501
...
94
BRKT.CLUTCH.CABLE HUS-532197250
...
97
SHIELD.IDLER.MOWER.CRD. HUS-583119101
...
99
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
- -
"Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-532447901
