Husqvarna CTH163 T - 96051001700 (2011-05) Riding Tractor

Model: CTH163 T - 96051001700 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

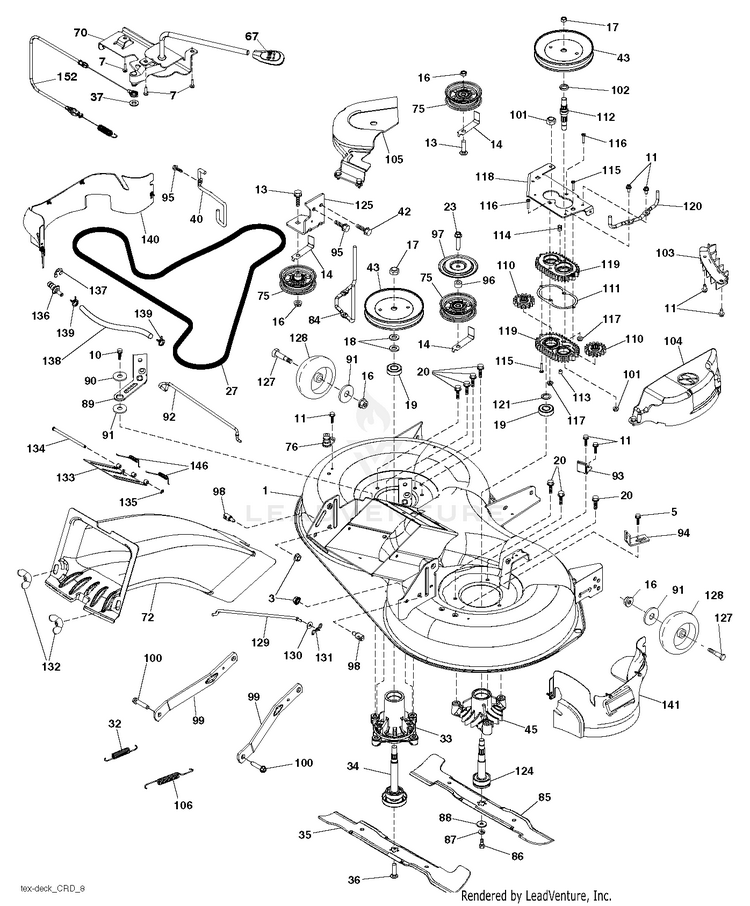

MOWER DECK / CUTTING DECK

...
...
125
IDLER.BRACKET.ASM. HUS-583548001
...
130
GSPH HUS-596134901
...
117
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
106
SPRING.BRAKE.RETURN.38" HUS-532193216
...
133
DOOR.MULCH HUS-583505301
...
116
Bolts HUS-594976601
...
- -
"Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-532441130
...
119
GEAR.CASE.SUBASM. HUS-583527601
...
20
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
99
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
96
SPACER.NORAM.CRD HUS-583261101
...
89
SERVICE.KIT ARM.BRAKE.97.LH AR HUS-529846801
...
23
BOLT HUS-599972501
...
45
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
17
Nuts HUS-596134801
...
124
MANDREL SHAFT NON/GREASEABLE HUS-583514201
...
1
KIT.SVC.DECK.WLD.97.EZ_MUL.428 HUS-547664501
...
127
Bolts HUS-596434404
...
95
SCREW, 3/8-16X3/4 HUS-817000612
...
84
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
- -
KIT.MANDREL.NONGREASE.TALL NOT SHOWN HUS-587819701
...
92
ROD.BRAKE.97.CRD HUS-583514701
...
135
E-RING.5/16" HUS-532437988
...
27
RP BELT.DRIVE.MWR.MECHN.97CRD HUS-583544901
...
35
BLADE.3N1.LH.CRD.97 HUS-532427984
...
86
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
136
WASHOUT.PORT.REMOTE.HOOKUP HUS-583544201
...
112
SHAFT.CRD.GEARCASE.ADAPTER HUS-583571601
...
111
GASKET.GEARCASE.97.CRD (2 2) HUS-583514001
...
152
HUS-532440555
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
102
SPACER BEARING HUS-532402511
...
40
SERVICE KIT BELT KEEPER HUS-531169501
...
19
BEARING HUS-532110485
...
34
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
118
ARM.CLUTCHING.97.TEX HUS-583514401
...
33
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
113
1/8-27.NPT.OIL.PLUG HUS-583533001
...
72
CHUTE.TEX.CRD.GEN I.97 UPPER HUS-582035601
...
138
HOSE 3/8ID, RUBBER 12" HUS-587924812
...
121
WASHER.687.I.D.X.1 OD.X.062THK HUS-583514101
...
93
ARM.BRAKE.97.RH HUS-583527101
...
137
RING CLIP HUS-812000029
...
98
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
129
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
140
SUBASM.TX.CRD.97CM.LH.FR.GUARD HUS-583597801
...
131
PIN.COTTER.5/16.BOW TI HUS-532194208
...
75
CLG HUS-597025001
...
114
VENT.BREATHER.1/8 NPT HUS-588170501
...
97
SHIELD.IDLER.MOWER.CRD. HUS-583119101
...
87
Washers HUS-596238701
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
134
PIN.HINGE HUS-583507401
...
13
GSPW Bolts HUS-596136101
...
94
BRKT.CLUTCH.CABLE HUS-532197250
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
14
Keepers HUS-597024901
...
105
HUS-532441478
...
100
BOLT.SHOULDER HUS-532196539
...
103
GUARD.FRONT.VENT.97.CRD HUS-583514601
...
70
CLUTCH.ASM.MANUAL.YT.PREDATORQ HUS-532199972
...
115
SCREW.TORX#10-24X1 HUS-583608901
...
88
WASHER.BLADE HUS-532140296
...
3
GSPW Nuts RH HUS-596135701
...
120
KEEPER.BELT.RH.MANDREL.97.CRD HUS-583514501
...
128
WHEEL.GAUGE.RALLY HUS-589527301
...
43
PULLEY.MANDREL.5.438.P HUS-532195945
...
91
GSPH HUS-596134901
...
10
SCREW 3/8-16X1 HUS-817000616
...
132
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
146
SPRING.EZ.MULCH.DOOR HUS-583582001
...
101
Hardware HUS-596040601
...
85
BLADE.3N1.RH.CRD.97 HUS-532427985
...
110
CRD.SPUR.GEAR HUS-587934801
...
32
SPRING RETURN HUS-532401872
...
42
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
141
SUBASM.TEX.CRD.97CM.RH.FRN.GRD HUS-583596401
...
7
Screws HUS-596321701
...
76
1/2" BARB.DECK.WASHOUT.PORT HUS-583544301
...
104
HUS-532441479
...
139
HOSE.3/8.CLAMP (2 2) HUS-532440742
...
90
SPACER.RETAINER HUS-532199092
