Husqvarna CTH163 T - 96051001700 (2011-05) Riding Tractor

Model: CTH163 T - 96051001700 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

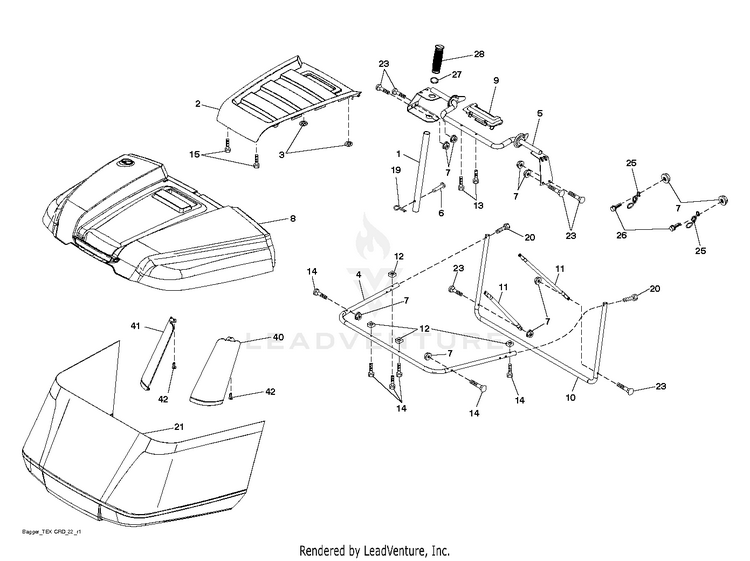

BAGGER

...
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
SRD.BAGGER.TOP.SUB.ASM HUS-583503801
...
9
INSERT.HANDLE.BAGGER.SRD HUS-583365801
...
13
SCREW.1/4X1.150.HXWSH HUS-583391201
...
5
FRAME.ASM.TOP.BAGGER.SRD HUS-583365901
...
23
BOLT HUS-872040410
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
4
BAGGER SWAGE TUBE HANDLE ASSY HUS-579785402
...
14
BOLT.SHOULDER.HX.WSH.1/4X1.150 HUS-583392001
...
25
SPRING.LATCH.BAGGER.SRD (3 2) HUS-583389801
...
10
FRAME FRONT TUBE TEX CRD BLACK HUS-585384501
...
1
SERVICE KIT TUBE TUBE.HANDLE.B HUS-531151701
...
3
NUT.PUSH.156 HUS-583343001
...
2
APPLIQUE.TOP.BAG.SRD.ORANGE HUS-532441358
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
41
HUS-532439435
...
27
GROMMET.RUBBER.SRD HUS-583387201
...
21
HUS-532438162
...
6
RIVET,DRILLED HUS-532126875
...
20
SCREW.HEXCAP.1/4-20X1.375(2 2) HUS-585368801
...
15
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
11
BRACE.SIDE.TUBE.TEX/CRD.BLACK HUS-583511601
...
12
NUT.SQUARE.1/4 HUS-583391701
...
40
HUS-532439418
...
42
CHRISTMAS.TREE.CLIP HUS-583548101
...
28
GRIP.HANDLE.BLACK HUS-532165787
