Husqvarna CTH163 T - 96051000300 (2011-03) Riding Tractor

Model: CTH163 T - 96051000300 (2011-03)

Back To Assemblies

Save Part Not Listed?
product name

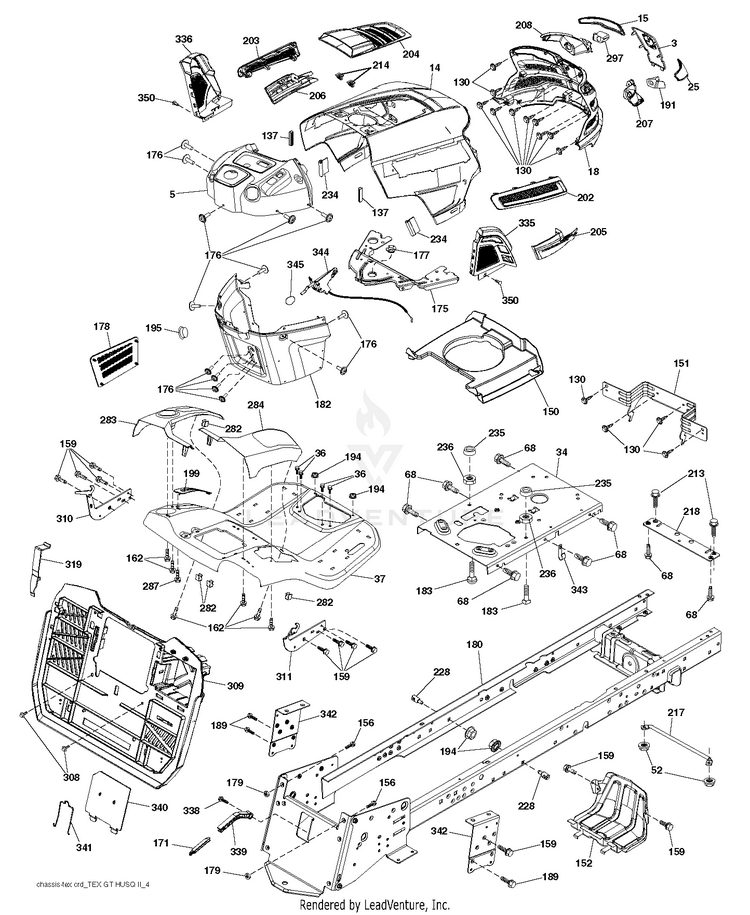

CHASSIS / FRAME

...
...
338
BOLT.SHOULDER.5/16-18.X.88 HUS-583510201
...
284
CONSL.SHFT.PEDAL.RH.SRD.TEXCRD HUS-532440530
...
339
SUBASM.BAGGER.FULL.LVER.(2 2) HUS-583510301
...
15
LENS.HEADLIGHT.LH.GTII.2011 LH HUS-532439733
...
156
Bolts HUS-596987501
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
342
SUPPORT.PNT.FENDER.CRD.TEX HUS-582826802
...
25
LENS.HEADLIGHT.RH.GTII.2011 RH HUS-532443385
...
283
CONSL.DECKLIFT.LH.SRD.TEX.CRD HUS-532440531
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
204
HUS-532435715
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
319
BRACKET.ACTUATOR.BAGGER.SRD HUS-532174662
...
343
CLIP HUS-582671501
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
311
RH.ADJUST.HANGER.BRACKET.ASM HUS-583586601
...
235
Spacers HUS-596564201
...
18
Grilles HUS-597247201
...
183
Screws HUS-595305701
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
162
Screws HUS-596134101
...
179
NUT HUS-532168937
...
310
LH.ADJUST.HANGER.BRACKET.ASM HUS-583586501
...
287
SCREW 1/4X20 HUS-817600406
...
137
BUMPER DASH HUS-532407590
...
37
FENDER.TEX.SRD.CRD.BASE HUS-532441419
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
199
PLATE.DECKLIFT.SRD HUS-583371401
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
217
ROD.PIVOT.HOOD HUS-532409167
...
350
CLIP.X-MAS.TREE HUS-532445143
...
150
AIR DUCT.GTV2(1.66"RING HEIGHT HUS-532439731
...
52
Hardware HUS-596040501
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
345
KNOB - SHIFT HUS-539132624
...
171
SUBASM.BAGGER.FULL.LVER.(2 2) HUS-583510301
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
130
Screws HUS-596321701
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
309
HUS-532436626
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
344
CONTROL.EZ.MULCH.TEX/CRD HUS-583536701
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
341
LATCH.BATTERY.DOOR.TCRD HUS-582060801
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
180
HUS-532435472
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
182
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT HUS-583536501
...
5
HUS-532437474
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
194
GSPW Nuts HUS-596135701
...
177
BUSHING, STEERING HUS-532195227
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
335
COVER.RH.CLOSE.OUT.BLACK HUS-532439847
...
3
DASH.UPR.ASSY.GT2.SRV.MIND.MAN HUS-583520401
...
340
DOOR.PNT.BATTERY.TRY.TEX.CRD. HUS-532440931
...
308
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
336
COVER.LH.CLOSE.OUT HUS-532439846
...
68
Screws HUS-596030701
