Husqvarna CTH160 - HECTH160B (1999-03) Riding Tractor

Model: CTH160 - HECTH160B (1999-03)

Back To Assemblies

Save Part Not Listed?
product name

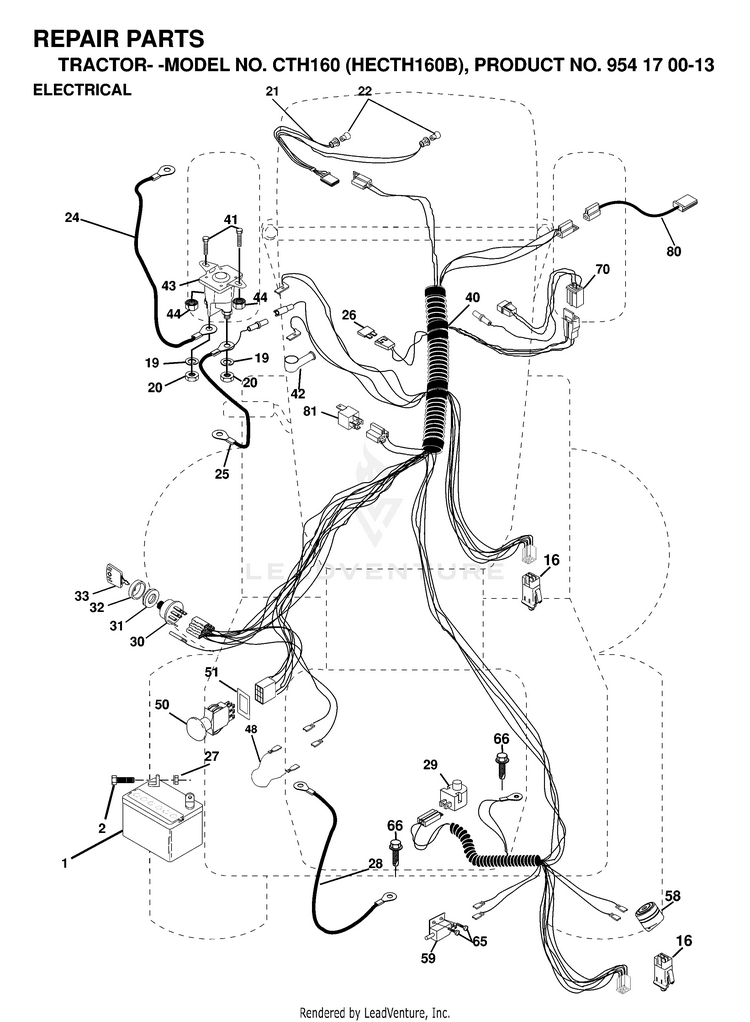

ELECTRICAL

...
...
26
FUSE 15 AMP HUS-532166180
...
42
COVER.TERMINAL.RED HUS-532154336
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
51
FRAME RETAINING RING HUS-532140405
...
25
CABLE BATTERY HUS-532165987
...
40
CABLE ASS[ HUS-532166158
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
44
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
24
BATTERY CABLE HUS-532004799
...
32
COVER SWITCH KEY HUS-532141226
...
58
BUZZER HUS-532165993
...
70
CABLE ASS[ HUS-532166668
...
21
HARNESS HUS-532166181
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
59
SWITCH HUS-532166299
...
19
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
48
ADAPTER.AMMETER HUS-532140844
...
22
LIGHTBULB HUS-532004152
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
31
NUT IGNITION HUS-532124211
...
81
RELAY.ASSY.T HUS-532109748
...
33
KEY.MOLDED.GENERIC HUS-532122147
...
66
Bolts HUS-596564001
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
41
Screws HUS-596437001
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
30
SWITCH.IGNITION.4.POSITION HUS-532140301
...
80
HARNESS, CLUTCH HUS-532146685
...
43
KIT SOLENOID .95 HUS-532146154
...
28
CABLE GROUND HUS-532127725
...
65
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
