Husqvarna CTH160 - HECTH160B (1999-03) Riding Tractor

Model: CTH160 - HECTH160B (1999-03)

Back To Assemblies

Save Part Not Listed?

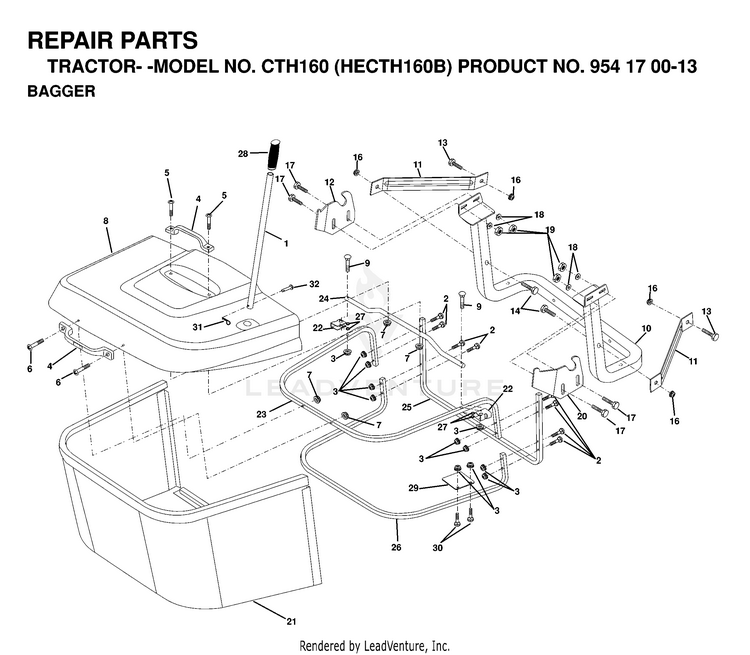

product name

BAGGER

...
...
7
NUT HUS-873401000
...
10
ROD HUS-532165716
...
23
TUBE.UPPER.BAG.CRD HUS-532165782
...
28
GRIP.HANDLE.BLACK HUS-532165787
...
22
BRKT.SIDE.BAG.CRD HUS-532165781
...
9
Bolt Carriage 1/4-20 x 2.25d x Gr.5 HUS-872140418
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
TUBE HUS-532165784
...
27
GASKET HUS-532165786
...
26
TUBE.LOWER.BAG.CRD HUS-532165785
...
24
TUBE.PIVOT.BAG.CRD.BLACK HUS-532165783
...
32
RIVET,DRILLED HUS-532126875
...
11
BRACKET.SUPPORT.UPPER.BAG.CRD HUS-532165719
...
30
Bolt Carriage 1/4-20 x 1 Gr.5 HUS-872140410
...
21
GRASS BAG HUS-532180880
...
6
SCREW HUS-532750029
...
31
RETAINER M HUS-532004497
...
2
Bolt Carriage 1/4-20 x 2.0 Gr.5 HUS-872140416
...
17
GSPW Bolts HUS-595901601
...
13
Bolts HUS-596136001
...
19
Hardware HUS-596040501
...
8
COVER.BAGGER.CRD.ORANGE HUS-532165715
...
1
TUBE HANDLE BAGGER HUS-532170690
...
5
SCREW.PAN.HEAD HUS-874981024
...
18
Washer 11/32 x 1-1/4 x 16 Ga. HUS-819112016
...
4
HANDLE HUS-532165693
...
3
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
BRACKET HUS-532165736
...
12
BRACKET HUS-532165735
...
29
PLATE HUS-532165839
...
14
Bolt Hex 3/8-16 x 2-1/2 Gr. 5 HUS-874520640
