Husqvarna CTH160 - HECTH160B (1999-03) Riding Tractor

Model: CTH160 - HECTH160B (1999-03)

Back To Assemblies

Save Part Not Listed?
product name

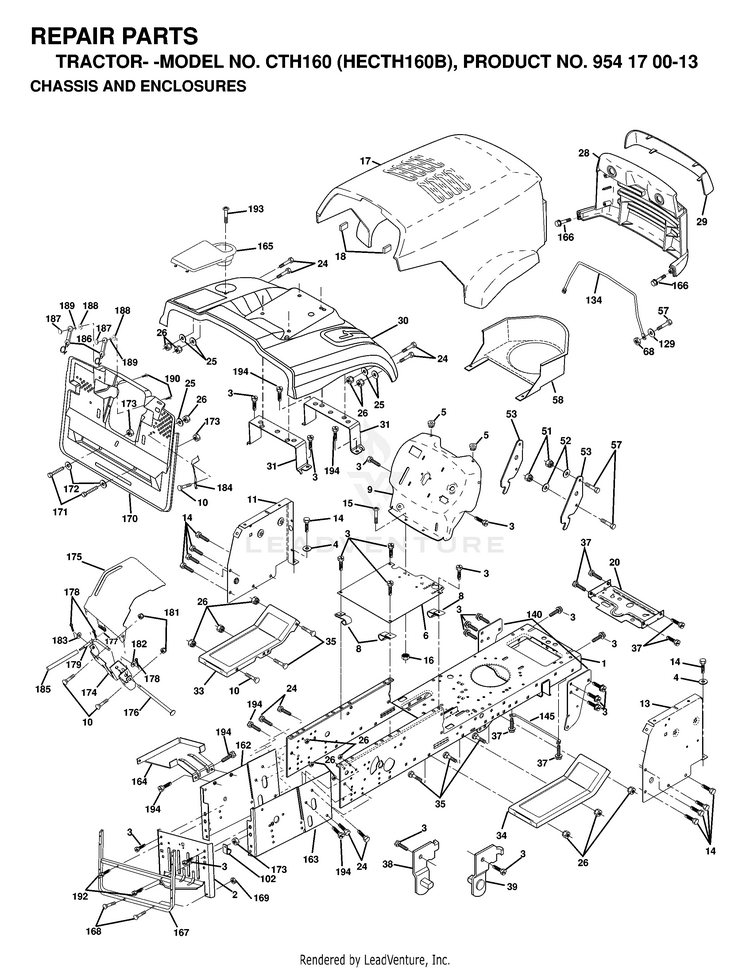

CHASSIS & ENCLOSURES

...
...
31
BRACKET SUPPORT FENDER HUS-532165156
...
187
Nuts HUS-596987401
...
58
DUCT, INTAKE AIR HUS-532174930
...
145
ROD.PIVOT.HOOD HUS-532409167
...
14
Bolts HUS-596564001
...
175
GUARD HUS-532166212
...
171
Bolt Hex 3/8-16 x 2-1/2 Gr. 5 HUS-874520640
...
190
Screws HUS-596039001
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
129
Washers HUS-596582301
...
37
Screws HUS-596030701
...
17
HOOD - LT/YT HUS-532156051
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
13
DASH PANEL RH HUS-532172108
...
35
Bolts HUS-596136001
...
167
SUPPORT.ASM.BACKPLATE HUS-532165779
...
173
NUT HUS-873510600
...
170
COVER BACKPLATE HUS-532165607
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
184
BRACKET HUS-532166139
...
194
SCREW, 3/8-16X3/4 HUS-817000612
...
4
Washer 13/32 X 3/4 X 16 Ga. HUS-819131216
...
168
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
26
Nuts HUS-596322601
...
9
PANEL HUS-532167977
...
39
BRACKET RH PIVOT HUS-532139887
...
52
Washers HUS-596135301
...
8
CLIP,INSULATOR HUS-532126471
...
169
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
6
SADDLE FLAT HUS-532155923
...
25
GSPH HUS-596134901
...
2
DRAWBAR HUS-532165606
...
177
SPRING COVER LH HUS-532132796
...
193
Bolts HUS-596582501
...
15
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
189
LOCKWASHER #10 HUS-810071000
...
176
BAGGER.HINGE.PIN HUS-532192786
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
10
Bolts HUS-596728201
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
33
FOOT REST LH HUS-532147203
...
185
TUBE LEVER HUS-532165940
...
18
BUMPER HOOD T HUS-532126938
...
188
WASHER HUS-819061216
...
186
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
178
Pins HUS-596917601
...
174
BRACKET HUS-532165939
...
134
ROD SUPPORT HOOD LT/PL HUS. HUS-532160219
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
180
Bolts HUS-596580801
...
102
CLIP T HUS-532002751
...
1
CHASSIS HUS-532165480
...
38
BRACKET LH PIVOT HUS-532139886
...
192
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
140
BRACKET SUSPENSION FRONT HUS-532158418
...
24
Bolts HUS-596564401
...
165
COVER.BATTERY.CRD.BLACK.LT HUS-583687501
...
164
SUPPORT HUS-532165605
...
172
GSPH HUS-596134901
...
183
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
30
FENDER HUS-532165713
...
179
ROD PIVOT HUS-532165942
...
166
SCREW.HI-LO#13-16X5/8 HUS-532189747
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
57
Screws HUS-596230901
...
16
Hardware HUS-596040501
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
162
BRACKET HUS-532165672
...
163
BRACKET HUS-532165673
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
182
WASHER HUS-532138200
...
181
Hardware HUS-596040501
