Husqvarna CTH151 - 96061020401 (2007-04) Riding Tractor

Model: CTH151 - 96061020401 (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

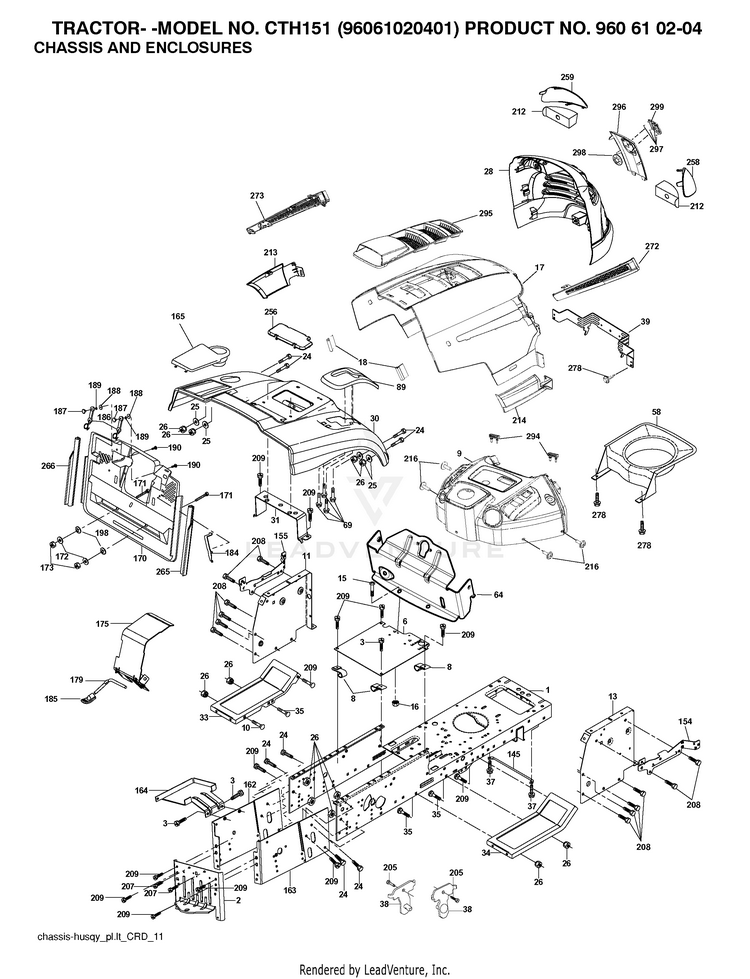

CHASSIS & ENCLOSURES

...
...
256
COVER FENDER CRD HUS-532181361
...
187
Nuts HUS-596987401
...
189
LOCKWASHER #10 HUS-810071000
...
216
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
213
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
16
Hardware HUS-596040501
...
165
COVER.BATT.CUPHOLDER.CRD HUS-532441516
...
38
BRACKET ARM.PIVOT.REAR HUS-583117401
...
1
CHASSIS HUS-532174620
...
-
PLUG.TEX.DASH.SVC.MINDER.GREY HUS-532439976
...
163
BRKT.EXTEN.CHASSIS.RH.CRD HUS-583100901
...
185
HUS-532181101
...
273
VENT SIDE HOOD HUS-532406670
...
214
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE HUS-532406668
...
34
FOOTREST.RH.BLACK HUS-532182508
...
17
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
297
CLIP.RETAINER.TINNER. HUS-532199145
...
28
ASM.GRILLE HUSQVARNA.LT.498 HUS-532439421
...
295
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
26
Nuts HUS-596322601
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
212
INSERT REFLECTIVE HUS-532406665
...
175
DOOR.TRAP.FBI.CRD.2004 HUS-583707801
...
154
HUS-532408122
...
198
NUT HUS-532168937
...
89
CONSOLE.CRD.AUTO.GRY HUS-532441574
...
15
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
278
Screws HUS-596321701
...
299
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
294
BUMPER DASH HUS-532407590
...
30
CONSOLE.CRD.AUTO.GRY HUS-532197376
...
9
NEEDS DESCRIPTION HUS-532409467
...
8
CLIP,INSULATOR HUS-532126471
...
171
Bolts HUS-596337801
...
259
LENS.HUSQVARNA LT.LH HUS-532406664
...
265
SEAL.SIDE.RH.BAGGER.CRD HUS-583146701
...
37
Screws HUS-596030701
...
39
BRACKET PIVOT HUS-532407807
...
35
Bolts HUS-596136001
...
164
SUPPORT HUS-532165605
...
266
SIDE.SEAL.LH.BAGGER.CRD HUS-583146601
...
258
LENS.HUSQVARNA LT.RH HUS-532406663
...
33
FOOTREST.LH.BLACK HUS-532182507
...
179
ROD.PIVOT.FBI.CRD HUS-583100601
...
298
NUT PUSH M HUS-532110452
...
170
HUS-532199488
...
13
PANEL ASM, DASH RH HUS-532172106
...
155
HUS-532408123
...
162
BRKT.EXTEN.CHASSIS.LH.CRD HUS-583100801
...
25
GSPH HUS-596134901
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
10
Bolts HUS-596728201
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
173
NUT HUS-873510600
...
186
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
6
SADDLE.FLAT.LT/YT/CRD.2003 HUS-583133601
...
272
VENT SIDE HOOD HUS-532406671
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
190
Screws HUS-596039001
...
188
WASHER HUS-819061216
...
205
Bolts HUS-596564001
...
145
ROD.PIVOT.HOOD HUS-532409167
...
296
TRIM.HUSQ LT.668 HUS-532407881
...
18
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
64
HUS-532408127
...
2
DRAWBAR.CRD HUS-583101001
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
69
Screws HUS-596134101
...
184
BRACKET.ACTUATOR.BAGGER.SRD HUS-532174662
...
58
DUCT.AIR. HUS-532407537
...
31
BRACKET SUPPORT FENDER HUS-532165156
...
24
Bolts HUS-596564401
...
172
GSPH HUS-596134901
