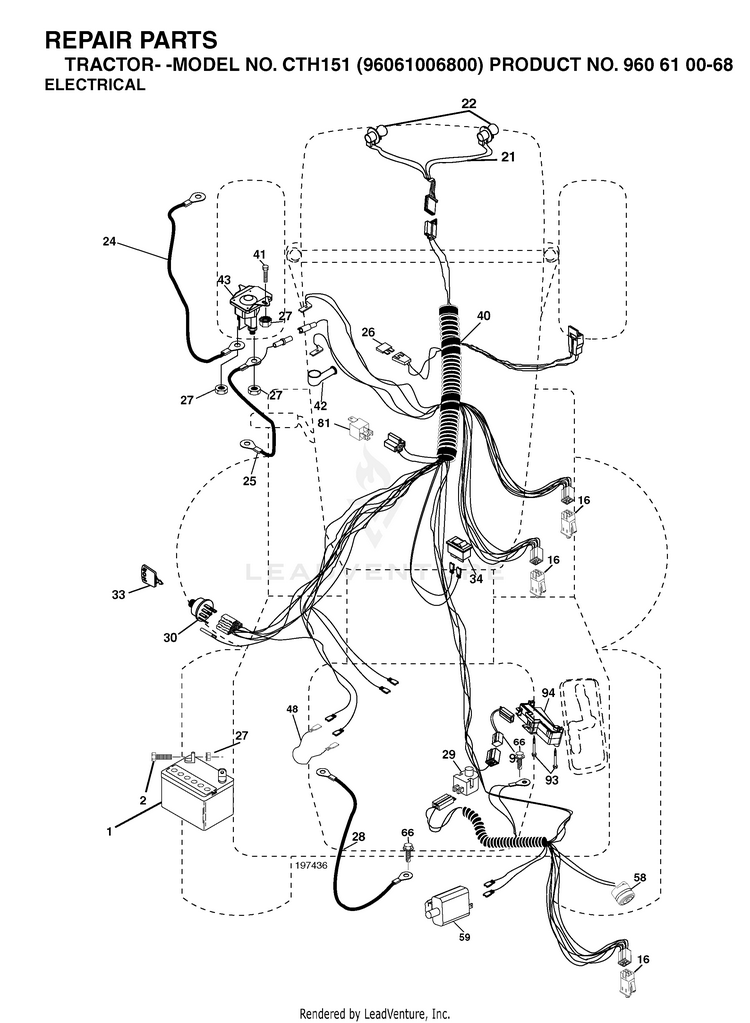

Husqvarna CTH151 - 96061006800 (2006-03) Riding Tractor

Model: CTH151 - 96061006800 (2006-03)

Back To Assemblies

Save Part Not Listed?
product name

ELECTRICAL

...
...
28
CABLE GROUND HUS-532127725
...
94
MODULE.REVERSE.ROS HUS-532191834
...
66
Bolts HUS-596564001
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
34
SWITCH LT HUS-532110712
...
25
CABLE BATTERY HUS-532165987
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
41
Screws HUS-596437001
...
24
BATTERY CABLE HUS-532004799
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HUS-532197436
...
48
ADAPTER.AMMETER HUS-532140844
...
81
RELAY.ASSY.T HUS-532109748
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
93
Bolts HUS-596039601
...
58
KIT.BUZZER.CRD HUS-532169420
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
42
COVER.TERMINAL.RED HUS-532154336
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
26
FUSE 20AMP HUS-532175158
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
43
Solenoids HUS-582042802
...
22
LIGHTBULB HUS-532004152
...
59
SWITCH.FBI.CRD HUS-583100701
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
