Husqvarna CTH14542H (1998) Tractor

Model: CTH14542H (1998)

Back To Assemblies

Save Part Not Listed?
product name

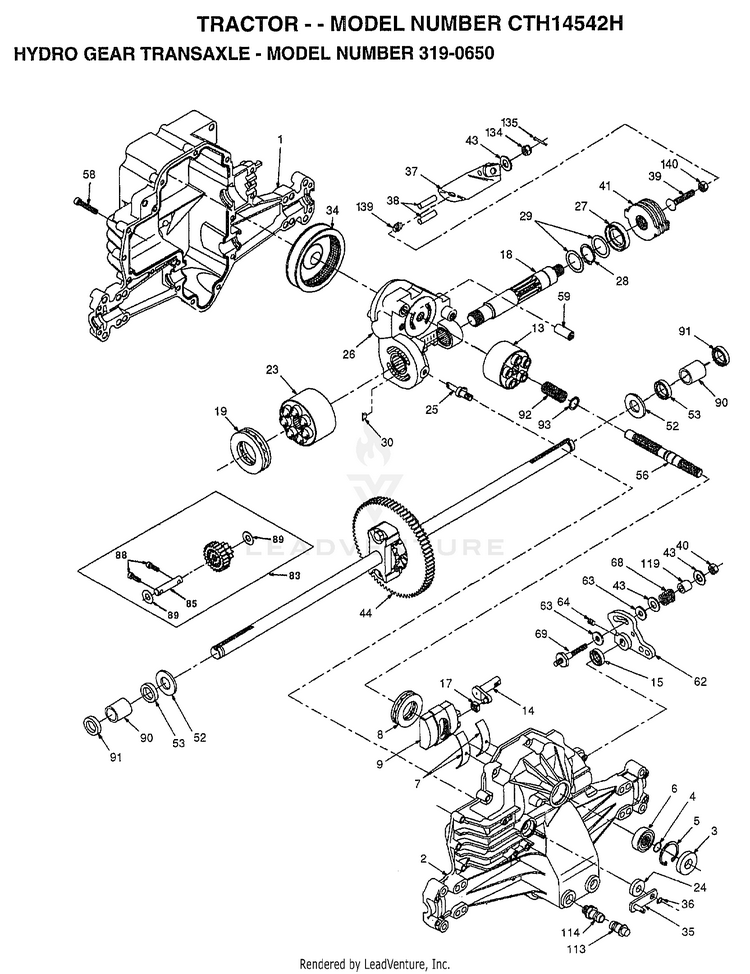

HYDRO GEAR TRANSAXLE

...
...
1
HOUSING.L.50074RM HUS-142930
...
2
HOUSING.UP.70125 HUS-142931
...
3
SEAL.9008000-0128 HUS-142932
...
4
RING.RET.2003016. HUS-142928
...
5
RING.RET.2003052. HUS-142933
...
6
BEARING.(50552)42X68X16 HUS-142934
...
7
CRADLE- 2003023. HUS-142935
...
8
BEARING.THU.50551 HUS-150771
...
9
SWASHPLT.2003087. HUS-142937
...
13
BLOCK.CLYN.70079. HUS-142938
...
14
ARM.TRUN.2003005. HUS-142939
...
15
SEAL.9008000-0126 HUS-142940
...
17
GUIDE.2000015. HUS-142941
...
18
SHAFT.MOTOR.50449 HUS-150772
...
19
BEARING.THU.50552 HUS-150773
...
23
BLOCK.CYLIN.70082 HUS-142944
...
24
SEAL.LIP.45074 HUS-142945
...
25
ACTUATOR.2003555 HUS-142946
...
26
KIT.CEN.SEC.70250 HUS-150774
...
27
SEAL.LIP.45075 HUS-142948
...
28
RING RETAIN 50007 HUS-142949
...
29
WASHER.44872 HUS-142950
...
34
ELEMENT.OIL.44964 HUS-142951
...
35
ARM.BYPASS.50270 HUS-142952
...
36
RING.RETAIN.44870 HUS-142953
...
37
ARM.ACTUAT.23710 HUS-142954
...
38
PIN.ACTUAT.44891 HUS-142955
...
39
BOLT.50316 HUS-150777
...
40
NUT.LOCK.HX.50317 HUS-150778
...
41
KIT.BRAKE.70135 HUS-142958
...
43
WASHER HYD 44130 HUS-142884
...
44
DIFFRENTIAL.70226 HUS-150829
...
52
WASHER.HYD.44875 HUS-142991
...
53
SEAL.HYDRO.45076 HUS-142961
...
56
SHAFT.INPUT.50005 HUS-142963
...
58
BOLT.1/4-20.44876 HUS-142964
...
59
PIN.HYDRO.50002 HUS-142965
...
62
ARM.CONTROL.50254 HUS-142966
...
63
PUCK.DAMPER.50281 HUS-142967
...
64
SCREW.SET.50018. HUS-142920
...
68
SPRING.HYD.50277 HUS-142969
...
69
STUD.5/16-24.DANA HUS-144610
...
83
JACKSHAFT/PINION GEAR.70132 HUS-142971
...
85
PIN.SHAFT 50559 HUS-150806
...
88
SCREW.CAP.50154. HUS-142973
...
89
WASHER.HYD.50132 HUS-142974
...
90
BEARING.SLV.50118 HUS-142975
...
91
SEAL.WIPER.50941 HUS-142976
...
92
SPRING.2003014. HUS-142977
...
93
WASHER.2003017 HUS-142978
...
113
CAP.VENT.70109 HUS-142917
...
114
O-RING.ASM.70110 HUS-142918
...
119
SPACER.HYD.50278 HUS-142980
...
134
NUT.CAS.HYD.44142 HUS-144607
...
135
PIN.COT.HYD.44101 HUS-144608
...
139
SPRING.COMP.50431 HUS-150775
...
140
NUT.HEX.50269 HUS-150776
