Husqvarna CTH14542B (1996) Tractor

Model: CTH14542B (1996)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

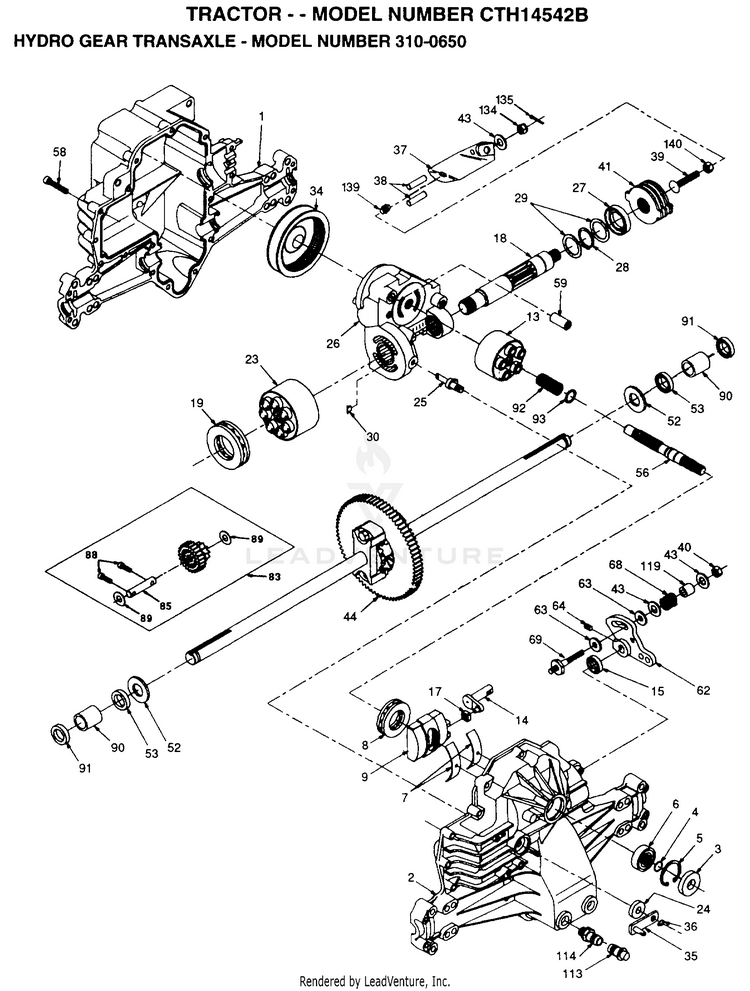

HYDRO GEAR TRANSAXLE

...
...
1
HOUSING.L.50074RM PLN-142930

...
2
HOUSING.UP.70125 PLN-142931

...
3
SEAL.9008000-0128 PLN-142932

...
4
RING.RET.2003016. PLN-142928

...
5
RING.RET.2003052. PLN-142933

...
6
BEARING.(50552)42X68X16 PLN-142934

...
7
CRADLE- 2003023. PLN-142935

...
8
BEARING.THU.50551 PLN-150771

...
9
SWASHPLT.2003087. PLN-142937

...
13
BLOCK.CLYN.70079. PLN-142938

...
14
ARM.TRUN.2003005. PLN-142939

...
15
SEAL.9008000-0126 PLN-142940

...
17
GUIDE.2000015. PLN-142941

...
18
SHAFT.MOTOR.50449 PLN-150772

...
19
BEARING.THU.50552 PLN-150773

...
23
BLOCK.CYLIN.70082 PLN-142944

...
24
SEAL.LIP.45074 PLN-142945

...
25
ACTUATOR.2003555 PLN-142946

...
26
KIT.CEN.SEC.70250 PLN-150774

...
27
SEAL.LIP.45075 PLN-142948

...
28
RING RETAIN 50007 PLN-142949

...
29
WASHER.44872 PLN-142950

...
34
ELEMENT.OIL.44964 PLN-142951

...
35
ARM.BYPASS.50270 PLN-142952

...
36
RING.RETAIN.44870 PLN-142953

...
37
ARM.ACTUAT.23710 PLN-142954

...
38
PIN.ACTUAT.44891 PLN-142955

...
39
BOLT.50316 PLN-150777

...
40
NUT.LOCK.HX.50317 PLN-150778

...
41
KIT.BRAKE.70135 PLN-142958

...
43
WASHER HYD 44130 PLN-142884

...
44
DIFFRENTIAL.70226 PLN-150829

...
52
WASHER.HYD.44875 PLN-142991

...
53
SEAL.HYDRO.45076 PLN-142961

...
56
SHAFT.INPUT.50005 PLN-142963

...
58
BOLT.1/4-20.44876 PLN-142964

...
59
PIN.HYDRO.50002 PLN-142965

...
62
ARM.CONTROL.50254 PLN-142966

...
63
PUCK.DAMPER.50281 PLN-142967

...
64
SCREW.SET.50018. PLN-142920

...
68
SPRING.HYD.50277 PLN-142969

...
69
STUD.5/16-24.DANA PLN-144610

...
83
JACKSHAFT/PINION GEAR.70132 PLN-142971

...
85
PIN.SHAFT 50559 PLN-150806

...
88
SCREW.CAP.50154. PLN-142973

...
89
WASHER.HYD.50132 PLN-142974

...
90
BEARING.SLV.50118 PLN-142975

...
91
SEAL.WIPER.50941 PLN-142976

...
92
SPRING.2003014. PLN-142977

...
93
WASHER.2003017 PLN-142978

...
113
CAP.VENT.70109 PLN-142917

...
114
O-RING.ASM.70110 PLN-142918

...
119
SPACER.HYD.50278 PLN-142980

...
134
NUT.CAS.HYD.44142 PLN-144607

...
135
PIN.COT.HYD.44101 PLN-144608

...
139
SPRING.COMP.50431 PLN-150775

...
140
NUT.HEX.50269 PLN-150776
...
...
...
