Husqvarna CTH140 - 96061028000 (2010-01) Riding Tractor

Model: CTH140 - 96061028000 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
1
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
6
EXHAUST TUBE RH KAWI HUS-532181442
...
3
Engine Kawasaki FH430V-DS11 HUS-000000000
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
136
SCREW.1/4-20X5/8 HUS-532137729
...
91
BUSHING.1.375OD HUS-532187495
...
121
CLIPS HUS-532196688
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
31
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
33
HOSE CLAMP HUS-532123487
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
105
SCREW 3/8-16X1 HUS-817120616
...
13
Muffler Gasket HUS-000000000
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
25
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
5
EXHAUST TUBE LH KAWI HUS-532181444
...
2
Screws HUS-596321701
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
120
GUARD.ENGINE.CRD.RH HUS-583254201
...
46
Washers HUS-596135301
...
119
GUARD.ENGINE.CRD.LH HUS-583254301
...
123
SCREW, 5/16-18 X 1/2 HUS-817670508
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
116
NUT.HEX.FLANGE.TOPLOCK HUS-532184362

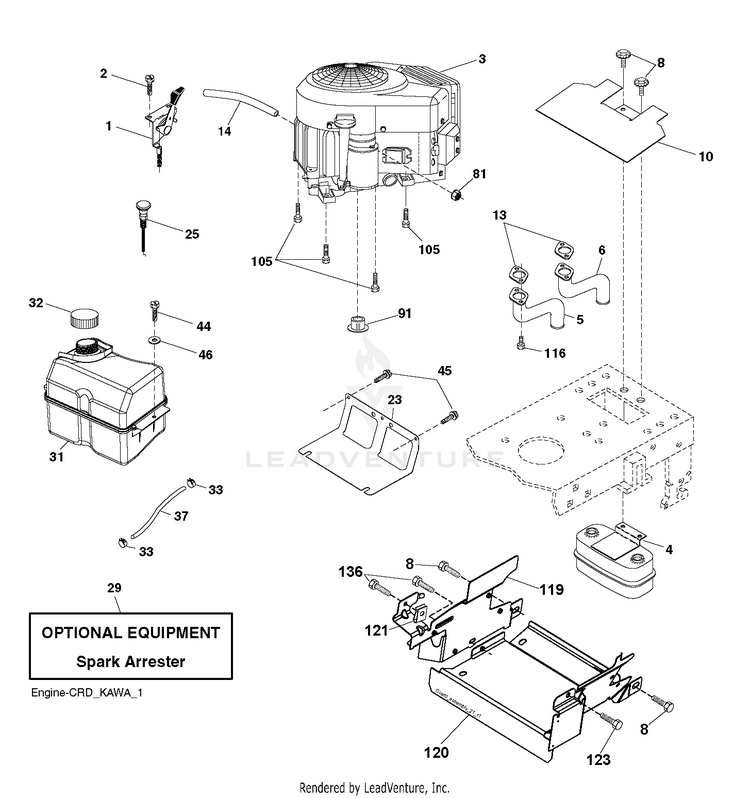

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
