Husqvarna CTH140 - 96061019203 (2009-04) Riding Tractor

Model: CTH140 - 96061019203 (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

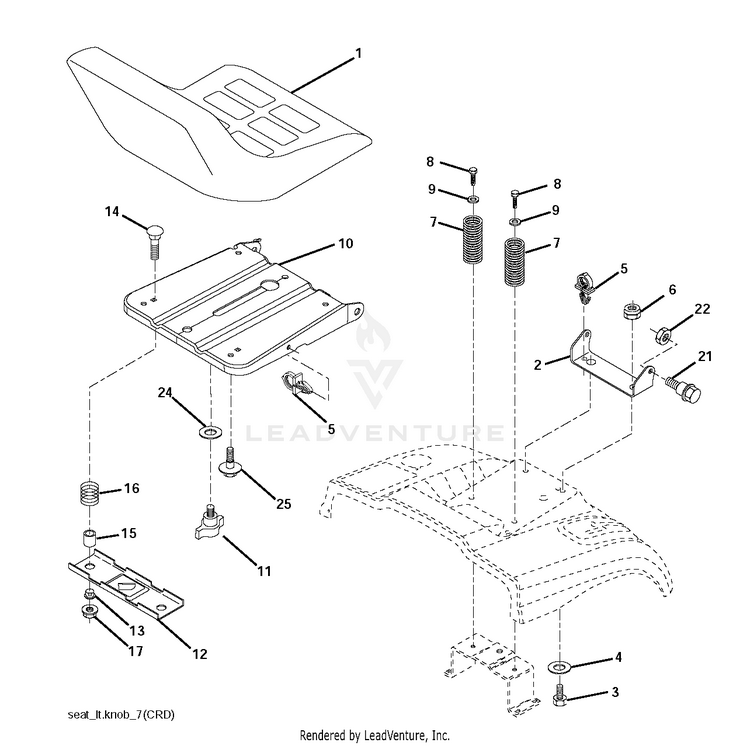

SEAT

...
...
96
Damper HUS-516841100
...
20
SPACER HUS-734116441
...
120
LINK ARM COVER HUS-511918268
...
119
DECK HUS-516873607
...
118
SCREW HUS-516924701
...
1
LOCKNUT M8 HUS-732211801
...
111
Washer HUS-516924400
...
105
SCREW HUS-516924901
...
112
SPRING HUS-516612901
...
93
DECK PROTECTOR RH HUS-516614311
...
45
SCREW HUS-725245371
...
94
DECK PROTECTOR LH HUS-516614411
...
117
Cover HUS-516848911
...
106
DECK FRONT COVER HUS-516873907
...
107
COUNTERWEIGHT HUS-516852200
...
110
BRACKET TOP HUS-512807968
...
82
SCREW HUS-515745046
...
104
SCREW HUS-516924801
...
115
RIVET HUS-516927900
...
109
Shaft HUS-516490201
...
102
Cover HUS-516850511
...
95
SLEEVE HUS-516509601
...
108
COVER HUS-516873807
...
113
BOTTOM PLATE BRACKET HUS-513075400
...
103
COVER HUS-516850411
...
116
Bracket HUS-516492701
...
6
Nuts HUS-596322601
...
16
SPRING COMPRESSED HUS-532123740
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
24
WASHER HUS-819171912
...
22
Hardware HUS-596040501
...
3
BOLT, HEX 3/8-16X1 HUS-871110616
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
25
BOLT,SHOULD HUS-532127018
...
8
SCREW 3/8-16X1 HUS-817000616
...
11
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
4
WASHER PM HUS-819131610
...
15
SPACER SPLIT HUS-532121249
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
9
Washers HUS-596140201
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
5
PUSH CLIP HUS-532145006
...
13
BUSHING HUS-532121248
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
