Husqvarna CTH 150 (954140101A) (1999-10) Ride Mower

Model: CTH 150 (954140101A) (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

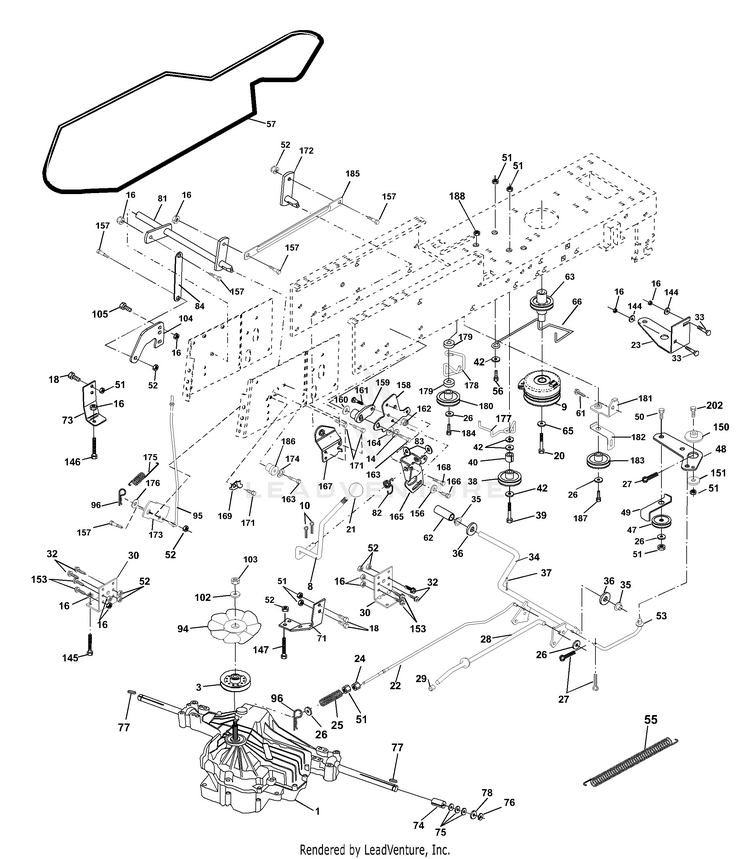

Drive

...
...
3
PULLEY, TRANSAXLE HUS-532143995
...
8
ROD.SHIFT.FENDER.ADJ.LT.CRD HUS-532165619
...
9
CLUTCH HUS-532169992
...
10
Pins HUS-596029601
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
18
Bolts HUS-596564401
...
20
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
21
KNOB.DUCKHEAD.1/2 HUS-532121274
...
22
ROD HUS-532165689
...
23
BRACKET.ASM.CLUTCH HUS-532170171
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
25
SPRING, BRAKE ROD HUS-532151332
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
27
Pins HUS-596029501
...
28
ROD BRAKE PARK LT HUS-532145204
...
29
PLUNGER CAP HUS-532071673
...
30
BRACKET TRANSAXLE HUS-532130807
...
33
GSPW Bolts HUS-595901601
...
34
SHAFT HUS-532165496
...
35
BEARING.NYLON HUS-532120183
...
36
Washers HUS-596933401
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
38
PULLEY.FLAT HUS-532165936
...
39
BOLT HUS-872110622
...
40
SPACER T HUS-532124965
...
42
GSPH HUS-596134901
...
47
PULLEY IDLER HUS-532139245
...
48
BELLCRANK, CLUTCH HUS-532154407
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
50
GSPW Bolts HUS-596136101
...
51
Nuts HUS-596322601
...
52
Hardware HUS-596040501
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
55
SPRING, RETURN LT HUS-532105709
...
56
BOLT HUS-874760620
...
57
V-BELT.0650.CRD.TRACTOR HUS-532165632
...
61
SCREW, 3/8-16X3/4 HUS-817000612
...
62
PAD, FOOT PEDAL HUS-510089501
...
63
PULLEY, CLUTCH ELECT EVX HUS-532145868
...
65
Washers HUS-596238901
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
71
STRAP LH TORQUE HUS-532140158
...
73
STRAP TORQUE RH HYDRO HUS-532156347
...
74
SPACER SPLIT HUS-532121199
...
75
WASHER HUS-532121749
...
76
E-RING LT HUS-812000001
...
77
SQUARE KEY HUS-532123583
...
78
WASHER HUS-532121748
...
81
SHAFT HUS-532165585
...
82
SPRING,TORSION HUS-532123782
...
83
BUSHING HUS-734117771
...
84
LINK TRANSAXLE HUS-532165629
...
94
FAN 7" HYDRO HUS-532140462
...
95
BYPASS CONTROL ASM HUS-532165935
...
96
RETAINER M HUS-532004497
...
102
WASHER HUS-532141322
...
103
NUT.HEX.1/2-20 HUS-873940800
...
104
CONTROL ARM HUS-532140156
...
105
SCREW HUS-871070516
...
144
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
145
Bolts HUS-596136501
...
146
BOLT HUS-874490536
...
147
Bolt hex Flghd 5/16-18 x 1-1/2 HUS-874490524
...
150
BUSHING.BELLCRANK.GRD.DR HUS-532165850
...
151
Washers HUS-596135501
...
153
Bolts HUS-596580801
...
156
Washers HUS-596218801
...
157
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
159
HUB.SHIFT HUS-532444304
...
160
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016
...
161
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
162
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
163
Screws HUS-596230901
...
164
Washer 5/8 x .281 x 10 Ga HUS-819091010
...
165
SERVICE KIT BRACKET BRACKET.PI HUS-531149501
...
166
SCREW HUS-532166880
...
167
BRACKET.SUPT.SHIFT.CRD HUS-532165588
...
168
BOLT.SHOULDER.5/16-18X HUS-532165492
...
169
PLATE.FASTENING.CROSS.SHAFT HUS-532165580
...
172
SHAFT HUS-532165587
...
173
BRACKET HUS-532165934
...
174
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
175
SPRING.BYPASS.CRD HUS-532165931
...
176
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
177
KEEPER HUS-532165932
...
178
KEEPER HUS-532165933
...
179
WASHER HUS-532120958
...
180
PULLEY.FLAT.IDLER HUS-532165630
...
181
BRKT.IDLER.GRD.DR.CRD HUS-532165797
...
182
SERVICE KIT KEEPER.BELT.2.5".V HUS-529846301
...
183
PULLEY.V-IDLER HUS-532165626
...
184
BOLT HUS-596564005
...
185
LINK HUS-532165541
...
186
HUB.TAPERED.ROUND.CRD HUS-532165614
...
188
SNAP BUSHING T HUS-532009151
...
190
Bolts HUS-596564001
...
191
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
192
Hardware HUS-596040501
...
193
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
194
Nuts HUS-596322601
