Husqvarna CTH 130 (954140100A) (1999-10) Ride Mower

Model: CTH 130 (954140100A) (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

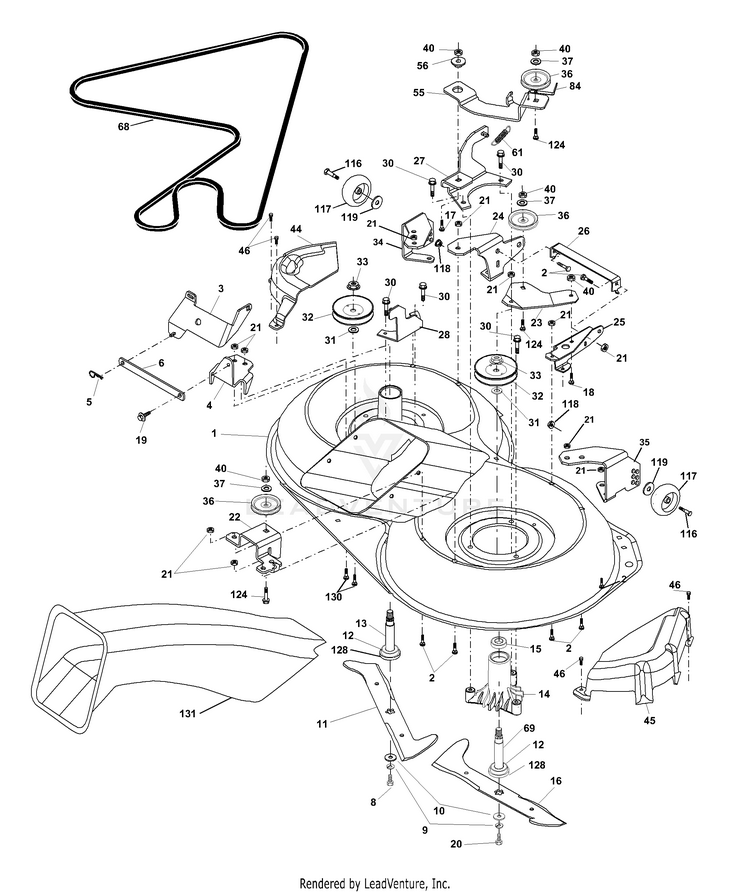

Mower Deck

...
...
1
DECK.SVCX1.92.CRD HUS-532176029
...
2
GSPW Bolts HUS-595901601
...
3
BRACKET HUS-532165569
...
4
BRACKET HUS-532165558
...
5
Pins HUS-596919601
...
6
BAR.SWAY.92.CRD HUS-532165557
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE HUS-532140296
...
11
KIT.SVC.BLADES.3-1.92.CRD HUS-532426323
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BEARING HUS-532110485
...
16
KIT.SVC.BLADES.3-1 L/RH.92.CRD HUS-532426322
...
17
Bolts HUS-595901101
...
18
Bolts HUS-596728201
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
BOLT HUS-532165484
...
21
Hardware HUS-596040501
...
22
BRACKET HUS-532165243
...
23
BRACKET HUS-532165446
...
24
BRACKET HUS-532165242
...
25
BRACKET HUS-532165244
...
26
BRACE.SUSP.FRONT.CRD/36.2006 HUS-583259301
...
27
BRACKET HUS-532165568
...
28
BRACKET HUS-532165567
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
Washer Spacer Mower Vented HUS-532171245
...
32
MANDREL PULLEY HUS-532173434
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
BRACKET HUS-532165239
...
35
BRACKET HUS-532165238
...
36
PULLEYS HUS-593787801
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
40
Nuts HUS-596322601
...
44
COVER.MANDREL.LH.92.CRD HUS-532165724
...
45
COVER.MANDREL.RH.CRD HUS-532175539
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
55
ARM IDLER HUS-532165445
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
61
SPRING.TENSION.BELT HUS-532165945
...
68
BELT.DRIVE.92CM.CRD.2006 HUS-532402008
...
69
SHAFT.ASM.W/LWR.BRG.RH.THREAD HUS-532165482
...
84
Keepers HUS-597024901
...
116
Bolts HUS-596434404
...
117
WHEEL GAGE DONUT HUS-532133957
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
124
GSPW Bolts HUS-596136101
...
128
WASHER FELT HUS-532153390
...
130
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
131
CHUTE BAGGER HUS-532165661
...
xx
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
xx
MANDREL ASM.CRD RH 6PT STAR HUS-532165579
...
xx
DECK MOWER COMP HUS-532165578
