Husqvarna CTH 130 (954140100A) (1999-10) Ride Mower

Model: CTH 130 (954140100A) (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CONTROL.THROTTLE.LT/YT HUS-532170805
...
2
Bolts HUS-596582501
...
4
MUFFLER.KOHL.CV.SINGLE.W/PORT HUS-532159420
...
13
KOHLER GASKET HUS-532163831
...
14
Nipple Pipe 3/8 NPT X 3 - 1/2 HUS-813280328
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
Washers HUS-596238701
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
TANK.ASM.FUEL.FRONT.W/CAP HUS-532184900
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
44
Screw Hexwsh Thdrol 1/4-20 x 3/4 HUS-532171239
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
46
Washers HUS-596135301
...
77
WASHER - 26X6.5X1.6 HUS-734115441
...
80
Bolt Hex Hd 5/16-18 UNC x 1/2 HUS-874760508
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
101
Nuts HUS-596433401
...
104
SCREW 3/8-16X1 HUS-817000616

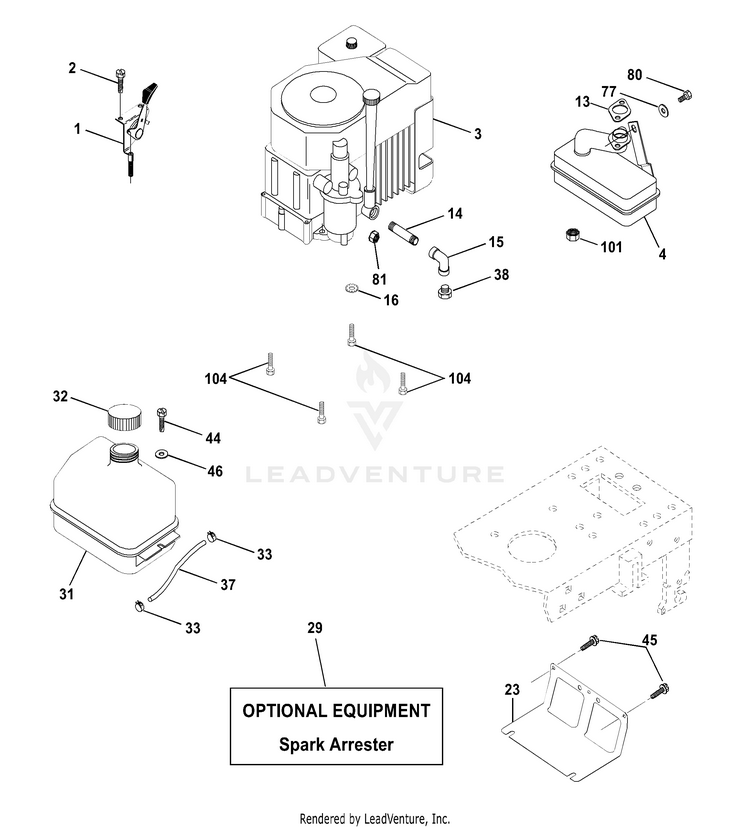

Schematic Image Zoomed
