Husqvarna CTD300D (1996) Tiller

Model: CTD300D (1996)

Back To Assemblies

Save Part Not Listed?
product name

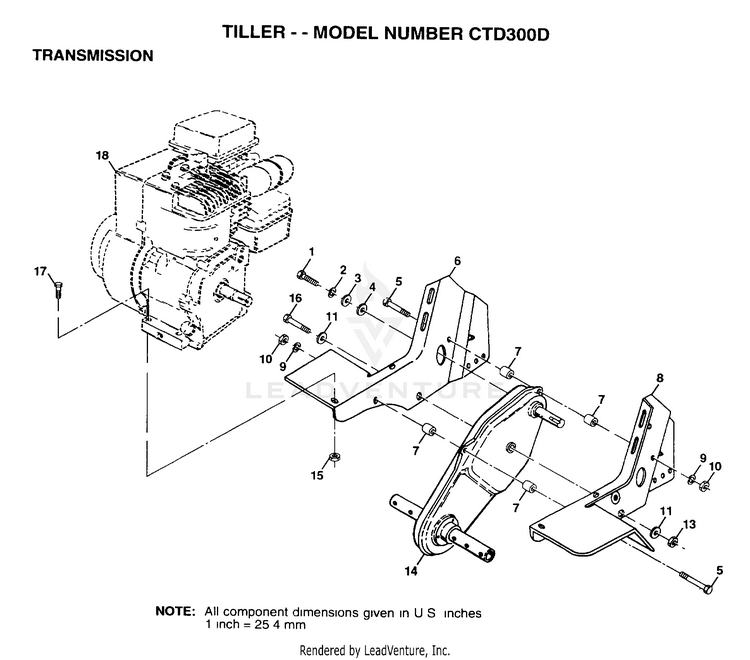

TRANSMISSION

...
...
1
BOLT HUS-74610412
...
2
LOCKWASHER HUS-10040400
...
3
WASHER HUS-19092016
...
4
WASHER HUS-19091412
...
5
SUB= 74780544 HUS-74760544
...
6
BRACKET.ENGINE.RH HUS-2606J550
...
7
SPLIT SPACER RT HUS-9173R
...
8
BRACKET.ENGINE.LH HUS-132212X550
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
WASHER HUS-19131311
...
13
NUT HUS-73800600
...
14
SUB= 165810 HUS-151937
...
15
NUT HUS-73510500
...
16
BOLT HEX 3/8-16 HUS-74780652
...
17
BOLT.HEX.5/16-1.5 HUS-74760524
