Husqvarna CT46185A (1998) Tractor

Model: CT46185A (1998)

Back To Assemblies

Save Part Not Listed?
product name

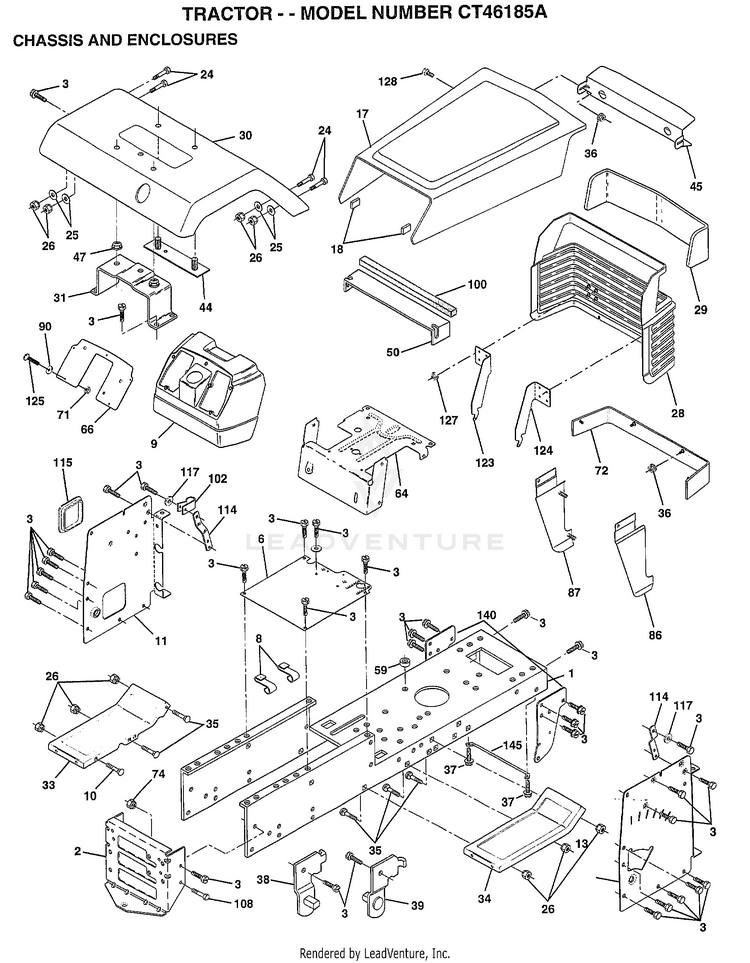

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS HUS-160393
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SADDLE HUS-155923
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH.PLASTIC.BLK HUS-145203
...
10
SUB= 72110608 HUS-72140608
...
11
DASHBRD.PANEL.LH HUS-159954
...
13
DASHBRD.PANEL.RH HUS-159953
...
17
HOOD/GRILLE ASM HUS-123801X550
...
18
SUB= 155934X010 HUS-12401X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE ASM WELD HUS-140671
...
29
LENS T HUS-110898X
...
30
FENDER PNT HUS-140002X550
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST.LH.LT/GT HUS-145244X550
...
34
FOOTREST.RH.LT/GT HUS-145243X550
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
44
STRAP ASM FENDER HUS-140675
...
45
BEZEL.LIGHT.SLVR HUS-132257X417
...
47
NUT-PUSH YT HUS-105531X
...
50
"BAFFLE,HOOD" HUS-124046X
...
59
SUB= 9151R HUS-110436X
...
64
DASH.LOWER.LT HUS-150272
...
66
"PLATE-DASH,SILKSC" HUS-156281X010
...
71
SUB= 73690400 HUS-73680400
...
72
STRAP FENDER ASM HUS-110350X550
...
74
SUB= 73690600 HUS-73680600
...
86
PANEL SIDE RH ASM HUS-123764X550
...
87
PANEL SIDE LH ASM HUS-123765X550
...
90
WASHER PM HUS-19091216
...
100
FOAM STRIP T HUS-109458X
...
102
CLIP T HUS-2751R
...
108
SUB= 74780612 HUS-74760612
...
114
BRACKET.SUPT.DASH HUS-145349
...
115
COVER ACCESS HUS-121794X
...
117
WASHER.SERRATED. HUS-144283
...
123
BRACKET.PICK.LH. HUS-149037
...
124
BRACKET.PICK.RH. HUS-149036
...
125
SCREW HUS-74180412
...
127
PAL NUT HUS-120579X
...
128
SCREW SPECIAL HUS-124201X
...
140
BRKT SUSPENSION HUS-158418
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
153
WASHER GT HUS-19132203
