Husqvarna CT2050B (1994) Tractor

Model: CT2050B (1994)

Back To Assemblies

Save Part Not Listed?
product name

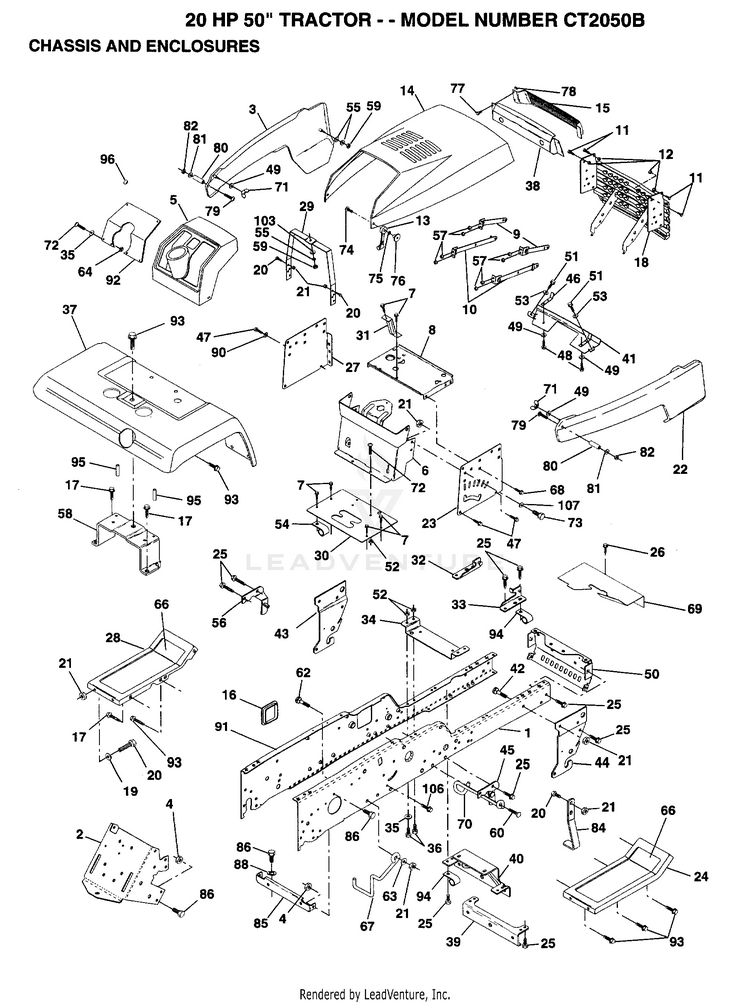

CHASSIS AND ENCLOSURES

...
...
1
SUB= 150383 HUS-140505
...
2
DRAWBAR GT HUS-140506
...
3
PANEL SIDE LH ASM HUS-140678X419
...
4
NUT.7/16 HUS-73800700
...
5
DASHBOARD BLACK HUS-140398
...
6
DASH ASM LOWER HUS-140638
...
7
SCREW HUS-17720408
...
8
SUPPORT BATRY VGT HUS-140229
...
9
SUB= 155013 HUS-104618X
...
10
SUB= 155013 HUS-106784X
...
11
SUB= 7605J HUS-123481X
...
12
NUT HUS-73800400
...
13
HOOD LATCH T HUS-109808X
...
14
HOOD HUS-132635X419
...
15
LENS LT HUS-106395X
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
GRILLE.ASM.PNT.YP HUS-140037X431
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
NUT HUS-73800600
...
22
PANEL SIDE RH ASM HUS-140679X419
...
23
SUB= 532121045 HUS-121045X
...
24
FOOTREST RH HUS-105464X419
...
25
SCREW HUS-17490612
...
26
SCREW HUS-17490512
...
27
SUB= 532121046 HUS-121046X
...
28
SUB= 145244X419 HUS-105465X419
...
29
SUPPORT ASS'Y HUS-124130X
...
30
SADDLE SILKSCRN HUS-137143X014
...
31
BRACE.SUPT.STRG HUS-137556
...
32
BRACKET ASM FRAME HUS-141315
...
33
BRACKET ASM FRAME HUS-141314
...
34
SUB= 142131 HUS-136963
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74780512
...
37
FENDER HUS-121642X419
...
38
SUB= 147717 HUS-124392X417
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
SUB= 156111 HUS-136962
...
41
"STRAP,GRILL " HUS-105419X419
...
42
SUB= 72110608 HUS-72140608
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET.SUS.FT.RH HUS-136940
...
45
SUB= 155887 HUS-138460
...
46
SUB= 532132644 HUS-132644
...
47
SCREW LT HUS-17490608
...
48
SCREW HUS-17490512
...
49
WASHER HUS-19131210
...
50
BRACKET.CHASSIS. HUS-136575
...
51
SCREW HEX CRT HUS-17490412
...
52
NUT HUS-73800500
...
53
WASHER HUS-19091016
...
54
"CLIP,INSULATOR" HUS-126470X
...
55
WASHER PM HUS-19091216
...
56
SUB= 155886 HUS-138461
...
57
NUT HUS-73510400
...
58
BRKT.ASM.FENDER HUS-137113
...
59
SUB= 50675 HUS-73220400
...
60
SCREW HUS-17490620
...
62
BOLT D HUS-72110608
...
63
WASHER HUS-19131614
...
64
NUT HUS-73510500
...
66
FOOTREST PAD HUS-133671
...
67
GUIDE BELT TRANS HUS-140737
...
68
SCREW LT HUS-17490508
...
69
SHIELD.HEAT.MUF HUS-140022
...
70
GUIDE.BELT.MID.SP HUS-137159
...
71
SUB= 146525 HUS-123198X
...
72
SCREW HUS-7480512
...
73
BOLT HUS-74780616
...
74
SCREW HUS-74191008
...
75
LOCKWASHER HUS-10071000
...
76
WELDNUT HUS-2029J
...
77
SCREW LT HUS-17211010
...
78
"""J"" FASTENER LT" HUS-104755X
...
79
SCREW HUS-74981020
...
80
SPACER LT HUS-7206J
...
81
WASHER HUS-19070818
...
82
NUT HUS-73731000
...
84
SUB= 142992 HUS-138952
...
85
SUB= 156404 HUS-120404X
...
86
BOLT HUS-74760716
...
88
LOCKWASHER HUS-10040700
...
90
LOCKWASHER HUS-11050600
...
91
SUB= 151630 HUS-140504
...
92
PLATE SLKSCR YP HUS-140299X012
...
93
SCREW LT HUS-17490608
...
94
CLIP GTV HUS-100207K
...
95
NUT-PUSH YT HUS-105531X
...
96
PLUG-DASH T HUS-8022J
...
103
LOCKWASHER HUS-10040400
...
106
BOLT.5/16-18X1.25 HUS-17580520
...
107
WASHER HUS-19131614
