product name

Husqvarna CT2050A (1993) Tractor

Model: CT2050A (1993)

Save
 Part Not Listed?Part Not Listed?
product name

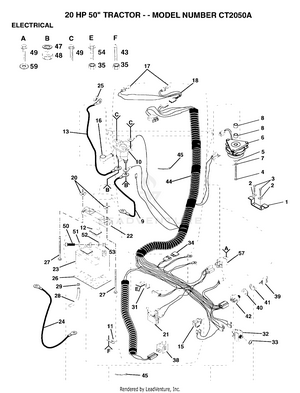

ELECTRICAL

...
...
1
STOP T PLN-110882X
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
3
BOLT PLN-74780612
...
4
SUB= 871130724 PLN-71130724
...
5
WASHER PLN-126197X
...
6
SUB= 133501 PLN-127170X
...
7
LOCKWASHER PLN-10040700
...
8
SPACER-CLUTCH PLN-128224
...
9
CABLE-BATTERY T PLN-4206J
...
10
SUB= 146154 PLN-138406
...
11
CLIP T PLN-4171R
...
12
"CAP,BATTERY " PLN-121264X
...
13
"CABLE,STARTER T" PLN-129458
...
15
SWITCH LT PLN-110712X
...
16
SUB= 154336 PLN-131563
...
17
HEADLAMP BULB PLN-4152J
...
18
"HARNESS,LIGHT SOC" PLN-136850
...
20
SUB= 146525 PLN-123198X
...
21
AMMETER PLN-122822X
...
22
SUB= 150109 PLN-102476X
...
23
SUB= 123899X PLN-121537X
...
24
CABLE T PLN-4207J
...
25
LOCKWASHER PLN-11150400
...
26
"TRAY T, BATTERY" PLN-7603J
...
27
BOLT PLN-72240460
...
28
SUB= 7697J PLN-100541K
...
29
HOSE CLAMP T PLN-109596X
...
31
SWITCH-INTER. GT PLN-104445X
...
32
"SWITCH,PTO" PLN-126017X
...
33
HEX NUT T PLN-4022J
...
34
FUSE HYT PLN-108824X
...
35
"NUT,KEPS" PLN-73951000
...
38
SWITCH SEAT PLN-121305X
...
39
KEY PLN-122147X
...
40
NUT IGNITION PLN-124211X
...
41
SUB= 141226 PLN-123620X
...
42
SUB= STD365402 PLN-4406R
...
43
SUB= 71031008 PLN-74641008
...
44
HARNESS.IGN PLN-138814
...
45
WIRE TIE PLN-7192 J
...
47
SUB= 10040400 PLN-10090400
...
48
NUT PLN-73350400
...
79
SCREW ST PLN-17190408
...
50
BOLT LT PLN-74760412
...
51
WASHER PLN-19091016
...
52
LOCKWASHER PLN-10040400
...
53
SUB= 50675 PLN-73220400
...
54
SCREW PLN-71031008
...
57
RELAY ASSY T PLN-109748X
...
59
LOCKWASHER PLN-11050600

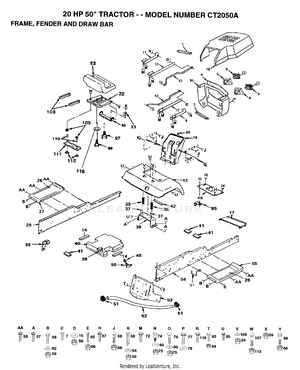

FRAME/FENDER AND DRAW BAR

...
...
1
FOAM STRIP T PLN-106086X
...
2
SUB= 532124586 PLN-124586X
...
4
SUB= 532124443 PLN-124443X
...
8
SUB= 7606J361 PLN-7606J366
...
6
SUB= 7607J361 PLN-7607J366
...
7
SCREW PLN-17990808
...
8
STRAP ASSY T PLN-677A876
...
9
LENS T PLN-109671X
...
10
GRILL.ASM. PLN-122354X419
...
11
STRAP ASSY T PLN-677A875
...
12
STRAP ASSY-REAR T PLN-677A432
...
13
GRILL BRACE PLN-122196X
...
14
PAD IDLER TI PLN-109227X
...
15
WASHER M PLN-19111216
...
17
SUB= 140229 PLN-137563
...
18
SUB= 3607J419 PLN-3607J366
...
19
SUB= 532122438 PLN-122438X
...
20
PLUG-DASH T PLN-8022J
...
22
SUB= 155925 PLN-131451
...
23
SUB= 140121 PLN-127440
...
24
NUT PLN-73800600
...
26
FOOTREST PAD PLN-133671
...
27
SUB= 145244X419 PLN-105465X419
...
29
SUB= 151630 PLN-110893X
...
33
CLIP T PLN-2751R
...
35
SPRING COMPRESSIO PLN-124181X
...
37
NUT-PUSH YT PLN-105531X
...
38
SUB= 137113 PLN-105509X
...
39
SUB= 158990 PLN-123549X
...
40
TANK, FUEL PLN-127344X
...
41
PAD-SPACER LT PLN-106082X
...
42
SUB= 140675 PLN-105511X
...
43
FENDER PLN-121642X419
...
45
SUB= 140551 PLN-126656X
...
46
SADDLE.6SP.GT PLN-106042X018
...
49
BUSHING OUTLET T PLN-3645J
...
50
STEM, TANK FUEL PLN-7810J
...
51
HOSE CLAMP PLN-123487X
...
52
SUB= 8542R PLN-7834R
...
53
SUB= 140506 PLN-7982J
...
54
SUB= 150383 PLN-138597
...
55
FOOTREST RH PLN-105464X419
...
57
SCREW PLN-17490612
...
58
SUB= 74780612 PLN-74760612
...
59
SUB= 73690600 PLN-73680600
...
60
WASHER PLN-19090816
...
64
WASHER PLN-19131316
...
65
SCREW PLN-74180512
...
66
SUB= 73690500 PLN-73680500
...
67
SCREW PLN-17720408
...
68
BOLT PLN-72140506
...
72
SUB= 17521312 PLN-17411310
...
74
BOLT T PLN-7605J
...
75
SUB= 73690400 PLN-73680400
...
76
"BOLT,SHOULDER" PLN-124549X
...
77
SCREW HEX SLTP PLN-17411208
...
78
SUB= 19071018 PLN-8019J
...
83
BOLT PLN-74760716
...
84
NUT GTV PLN-73680700
...
85
SCREW LT PLN-17490608
...
88
SUB= 139888 PLN-105529X
...
91
BELT RETAINER GT PLN-105500X
...
92
WASHER PLN-19131312
...
95
CLIP T PLN-4171R
...
97
"KNOB 1/2"" YT" PLN-120068X
...
99
"BOLT,SHOULDER" PLN-127018X
...
106
WASHER PLN-19131614
...
107
BOLT, CARRIAGE PLN-7205411
...
108
STRIP FORM PLN-121251X
...
109
SPRING COMPRESSED PLN-123740X
...
110
SPACER SPLIT PLN-121249X
...
111
BRKT SWITCH PLN-121246X
...
112
BUSHING PLN-121248X
...
113
SUB= 73900400 PLN-123976X
...
115
WASHER PLN-19171912
...
116
SCREW GTV PLN-17490616

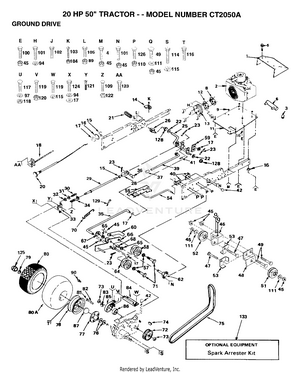

GROUND DRIVE

...
...
1
NUT IGNITION PLN-124211X
...
3
PIPE, EXHAUST PLN-122436X
...
4
"BOLT,HEX" PLN-74780624
...
5
SCREW PLN-17720408
...
6
SUB= 532124532 PLN-124532X
...
8
CHAFF GUARD T PLN-110947X
...
9
SPACER.ENGINE KOH PLN-133692
...
11
"ENG. T, BASE" PLN-110867X
...
12
ADAPTER T PLN-104577X
...
13
SUB= 101343L PLN-121355X
...
14
ACT-SWITCH T PLN-5304J
...
15
SUB= 7810H PLN-73610600
...
16
LOCKWASHER PLN-11050600
...
17
WASHER PLN-19131316
...
18
SUB= 132756 PLN-132775
...
20
SUB= 532132780 PLN-132780
...
21
PEDAL COVER T PLN-8883R
...
22
WASHER PLN-121749X
...
23
SUB= 3145 PLN-76020312
...
25
SHAFT ASSY GT PLN-104375X
...
26
BRKT SWITCH GT PLN-104601X
...
28
YOKE GTV PLN-100604K
...
29
BRAKE ROD T PLN-5308J
...
30
SPRING T PLN-7241J
...
31
WASHER PLN-19131614
...
32
SUB= 7810H PLN-73530600
...
33
BRAKE BRKT ASSY T PLN-677A637
...
34
GUIDE ROD T PLN-7229J
...
35
ROD CLUTCH GTV PLN-101356L
...
36
CLEVIS PIN T PLN-5102J
...
37
SUB= 71673 PLN-7733J
...
69
BRAKE ROD PLN-136284
...
40
ROD BRACKET GT PLN-105598X
...
41
ROLL PIN STD PLN-5142H
...
42
CONTROL KNOB LT PLN-106279X
...
45
SUB= 73690600 PLN-73680600
...
46
SUB= 139995 PLN-121063X
...
47
BOLT PLN-72110614
...
48
BRKT IDLER FLAT PLN-122825X
...
49
BOLT PLN-72140606
...
51
IDLER-FLAT T PLN-102403X
...
52
PULLEY V IDLR GTV PLN-101344L
...
53
GUARD BELT PLN-122824X
...
55
ROD SHIFT HI LO PLN-122253X
...
57
WASHER PLN-19131413
...
58
SUB= 131494 PLN-104360X
...
59
RETAINER SPRING PLN-121358X
...
60
RETAINER BELT PLN-121360X
...
62
BRACKET ASSY GTV PLN-101358K
...
64
SUB= 139123 PLN-121361X
...
65
WASHER T PLN-207J
...
66
BRACKET CLUTCH PLN-121356X
...
67
KLIP RING PLN-12000039
...
68
"LY, BEARING" PLN-105706X
...
70
SPRING EXT CLUTCH PLN-121357X
...
71
BOLT PLN-74760628
...
72
SUB= 532137524 PLN-137524
...
73
NUT STD PLN-9204H
...
74
KEY PLN-9858M1
...
75
BELT-V.98.5.GD.DV PLN-110883X
...
76
WASHER T PLN-7563R
...
77
SUB= 149176X431 PLN-135758
...
78
SUB= 106277X427 PLN-106277X311
...
79
KLIP RING PLN-12000034
...
80
SUB= 122077X PLN-105588X
...
80A
TUBE.23X8/10-12 PLN-7154J
...
81
VALVE CAP PLN-59192
...
82
VALVE STEM LT PLN-65139
...
83
SUB= 2228M1 PLN-2228M
...
84
SUB= 156404 PLN-120404X
...
85
BRAKE BAND ASM PLN-101122M
...
86
BRAKE DRUM T PLN-214J
...
87
"COVER, HUB" PLN-136327
...
89
SUB= 73690400 PLN-73680400
...
90
ZERK FITTING M PLN-6856M
...
94
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
97
LOCKWASHER PLN-10040400
...
100
SUB= 74780612 PLN-74760612
...
101
BOLT PLN-74780616
...
102
SCREW PLN-17190516
...
103
SCREW PLN-74321016
...
104
SUB= 69180 PLN-73631000
...
105
BOLT LT PLN-74760412
...
109
SUB= 72270506 PLN-72110506
...
110
SUB= 73690500 PLN-73680500
...
111
WASHER GT PLN-19131612
...
114
BOLT PLN-74760720
...
115
LOCKWASHER PLN-10040700
...
116
SUB= 140080 PLN-1304H
...
117
BOLT T PLN-72140405
...
118
SUB= 50675 PLN-73220400
...
119
BOLT PLN-74760716
...
120
NUT GTV PLN-73680700
...
121
SCREW PLN-74370612
...
122
SUB= 68478 PLN-1685H
...
123
SCREW LT PLN-17720410
...
124
SUB= 74760616 PLN-74760614
...
125
CAP-HUB GT PLN-104758X
...
126
BOLT PLN-72140506
...
128
NYLINER T PLN-110895X
...
129
COTTER PIN PLN-76020816
...
133
SPARK ARREST KIT PLN-132922

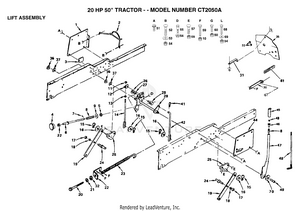

LIFT

...
...
1
SUB= 532121046 PLN-121046X
...
2
"GUARD, BELT" PLN-126651X
...
3
COVER ACCESS PLN-121794X
...
4
KNOB INF 3/8-16 PLN-138057
...
5
NUT T PLN-110807X
...
6
ROD ADJ. T PLN-110811X
...
7
SUB= 3145 PLN-76020308
...
8
SPRING T PLN-2876H
...
9
WASHER PLN-19131016
...
10
SUB= 73690600 PLN-73680600
...
11
NUT PLN-73800600
...
12
BRACKET T PLN-7594J
...
15
SPRING H PLN-9135R
...
16
WASHER PLN-19171616
...
17
NUT PLN-73220800
...
18
LOCKWASHER PLN-10040800
...
19
SUSPENSION ARM GT PLN-105429X
...
20
BOLT-ADJ SPRING T PLN-5328J
...
21
WASHER PLN-19131316
...
22
SUB= 143363 PLN-5329J
...
23
SUB= 918674A247 PLN-674A247
...
24
PIVOT STUD GT PLN-105413X
...
25
SUSP BRACKET T PLN-105501X
...
26
KLIP RING PLN-12000037
...
27
WASHER PLN-19151216
...
28
TRUNION LT PLN-110810X
...
29
SHAFT ASS'Y LIFT PLN-124217X
...
30
NLA PLN-110904X
...
31
SUB= 532124290 PLN-124290X
...
32
NUT PLN-73350600
...
33
SUB= 9151R PLN-110436X
...
35
SUB= 532124220 PLN-124220X
...
36
E-RING PLN-12000022
...
37
WASHER PLN-19292016
...
41
SUB= 85902 PLN-4939M
...
42
LIFT LINK RH T PLN-105503X
...
43
SUB= 125925X PLN-124385X
...
44
SUB= 532121045 PLN-121045X
...
45
GRIP PLN-109413X
...
46
SUB= 125925X PLN-122364X
...
47
SUB= 123096X PLN-121002X
...
48
LEVER ROD LT PLN-121006X
...
49
"BOLT,HEX" PLN-74780624
...
50
SUB= 73690400 PLN-73680400
...
51
SCREW LT PLN-17490608
...
52
BOLT PLN-72140508
...
53
WASHER PLN-19111610
...
54
SUB= 73690500 PLN-73680500
...
55
SHOULDER BOLT T PLN-7901J
...
56
NUT T PLN-73900400
...
57
BOLT PLN-72140606
...
58
NUT, CENTERLOCK PLN-739630600
...
59
BOLT PLN-74760616
...
60
BOLT PLN-74780408
...
61
FOAM STRIP T PLN-109458X
...
68
BOLT PLN-74760512
...
69
WASHER M PLN-19111216
...
70
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600

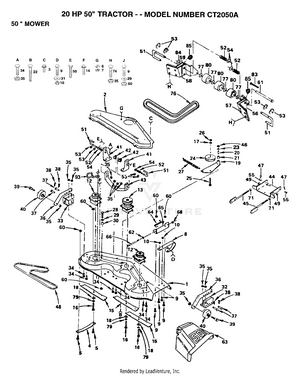

MOWER

...
...
1
SUB= 123760X PLN-121664X
...
2
CVR DRIVE DECK PLN-121811X
...
3
SCREW LT PLN-17490508
...
4
RUNNER-LH M PLN-7631J
...
5
BOLT PLN-72110505
...
6
LOCKWASHER PLN-10040500
...
7
NUT.HEX.5/16-18 PLN-73220500
...
8
SUB= 136320 PLN-120449X
...
9
BOLT PLN-72140506
...
10
SUB= 68478 PLN-1685H
...
12
SUB= 136819 PLN-121658X
...
13
JACKSHAFT PLN-121657X
...
14
SCREW PLN-17490612
...
15
"BLADE.50""STD.LIFT" PLN-121798X
...
16
BOLT.3/8-24X1-1/2 PLN-74610624
...
17
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
18
WASHER PLN-19132012
...
19
ARM ASSY GT PLN-674A213
...
20
SUB= 674A308 PLN-7834J
...
21
SUB= 674A308 PLN-7835J
...
22
BOLT PLN-72110522
...
23
SUB= 52915 PLN-19111816
...
24
IDLER-FLAT T PLN-102403X
...
25
SUB= 74930624 PLN-74760624
...
26
NUT.HEX.3/8-16UNC PLN-73220600
...
27
SPRING T PLN-104361X
...
28
BOLT PLN-74780520
...
29
WASHER M PLN-19111216
...
30
SPACER SPLIT LT PLN-8438J
...
31
WASHER PLN-19111116
...
32
GUAGE WHL BRKT GT PLN-105448X
...
33
GUAGE WHL BRKT GT PLN-105449X
...
34
BOLT PLN-72240606
...
35
SUB= 73690600 PLN-73680600
...
36
GUAGE WHL BAR GT PLN-105453X
...
37
PIN.CLEVIS PLN-139031
...
38
SUB= 85902 PLN-4939M
...
39
BOLT.SHOULDER PLN-137644
...
40
WHEEL GAGE DONUT PLN-133957
...
41
SUSP BRKT GT PLN-105433X
...
42
SPACER GT PLN-110237X
...
43
SUSP BRACE GT PLN-105434X
...
44
SUB= 140741X431 PLN-109778X
...
45
BRACKET.SUSPEN.AS PLN-109771X
...
46
JAM NUT TI PLN-73350500
...
47
RETAINER.SPRING PLN-3146R
...
48
V-BELT M PLN-3703J
...
49
NUT LTV PLN-73680800
...
50
Bolt, Hex 3/8-16 x 1-3/8 PLN-74760622
...
51
RELEASE PIN GT PLN-105435X
...
52
SPRING M PLN-3720R
...
53
KLIP RING PLN-12000039
...
54
WASHER GT PLN-19171612
...
55
CLEVIS PIN GT PLN-105440X
...
56
BRACKET T PLN-105458X
...
57
BRACKET T PLN-109773X
...
58
BRACKET T PLN-110997X
...
59
BRACKET T PLN-120000X
...
60
SUB= 73690500 PLN-73680500
...
61
PIVOT PIN T PLN-109776X
...
62
WASHER PLN-19111016
...
63
DEFLECTOR PLN-110509X
...
64
SUB= 123713X PLN-106734X
...
65
BRKT DEFLECTOR PLN-137607
...
66
ROD-HINGE T PLN-106735X
...
68
NUT PUSH M PLN-110452X
...
71
NUT PLN-73220800
...
74
BOLT PLN-72240608
...
76
BELT-V.93.5.MWR PLN-110884X
...
77
WASHER T PLN-19151610
...
79
SUB= 10040600 PLN-10030600
...
80
ROLLER T PLN-109729X
...
83
COTTER PIN PLN-76020412
...
84
SUB= 19171616 PLN-19151616
...
85
SPACER T PLN-120135X
...
93
BELT RETIANER PLN-121352X
...
xx
DECK.MWR.50.COMP. PLN-138513

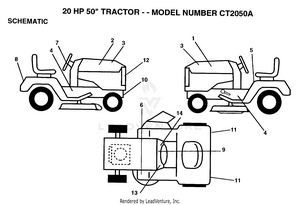

SCHEMATIC

...
...
1
DECAL.STRIPE.HOOD PLN-137967
...
2
NLA PLN-137966
...
3
DECAL.HOOD.INS PLN-137969
...
4
DECAL.CHASSIS 6SP PLN-137968
...
5
DECAL PLN-133796
...
6
DECAL T PLN-4900J
...
7
DECAL.STG.WHL.INS PLN-137965
...
8
DECAL.FENDER PLN-137962
...
9
DECAL DASH PLN-123175X
...
10
DECAL T PLN-108367X
...
11
REFLECTOR-TAIL YT PLN-106202X
...
12
DECAL.GRILLE PLN-137964
...
13
"DECAL,CLUTCH " PLN-125772X
...
14
"DECAL,LIFT " PLN-125771X
...
xx
MANUAL.O.CT2050A PLN-138847

SCHEMATIC

...
...
1
DECAL.STRIPE.HOOD PLN-137967
...
2
NLA PLN-137966
...
3
DECAL.HOOD.INS PLN-137969
...
4
DECAL.CHASSIS 6SP PLN-137968
...
5
DECAL PLN-133796
...
6
DECAL T PLN-4900J
...
7
DECAL.STG.WHL.INS PLN-137965
...
8
DECAL.FENDER PLN-137962
...
9
DECAL DASH PLN-123175X
...
10
DECAL T PLN-108367X
...
11
REFLECTOR-TAIL YT PLN-106202X
...
12
DECAL.GRILLE PLN-137964
...
13
"DECAL,CLUTCH " PLN-125772X
...
14
"DECAL,LIFT " PLN-125771X
...
xx
MANUAL.O.CT2050A PLN-138847

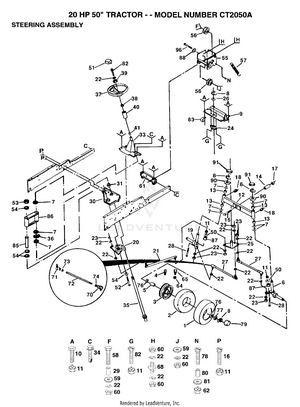

STEERING

...
...
1
SUB= 122075X PLN-106230X
...
2
TUBE.16X6.5/7.5-8 PLN-8134H
...
3
SUB= 106228X427 PLN-106228X311
...
4
FITTING LT PLN-278H
...
5
"FLANGE, BEARING" PLN-9040H
...
6
SPINDLE RH T PLN-106045X
...
7
WASHER .T PLN-6266H
...
8
RING PLN-12000029
...
9
AXLE BRACKET T PLN-5284J
...
10
SUB= 74780612 PLN-74760612
...
11
SUB= 73690600 PLN-73680600
...
12
AXLE ASSEMBLY PLN-674A243
...
13
BRNG. T PLN-1309H
...
17
SPACER BEARING PLN-136518
...
15
BOLT PLN-74781044
...
16
BOLT PLN-74780616
...
17
LOCKNUT M PLN-73681000
...
18
ZERK M PLN-6855M
...
19
SPINDLE ASSY T PLN-106046X
...
20
SECTOR T PLN-120424X
...
21
LINK.DRAG.T PLN-110497X
...
22
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
23
SUB= 7810H PLN-73610600
...
24
SUB= 140342 PLN-5292J
...
25
"T, BELLCRANK" PLN-108137X
...
26
WASHER PLN-19292016
...
27
TIE ROD T PLN-109849X
...
28
BOLT PLN-74520628
...
29
SPLIT SPACER YTV PLN-102933X
...
30
SUB= 144668 PLN-102439X
...
31
"FLANGE GT, BEAR." PLN-104239X
...
33
SUPPORT ASSY T PLN-101274N
...
34
SCREW PLN-17490612
...
35
SHAFT ASSY GT PLN-102458X
...
36
KLIP RING PLN-12000034
...
37
SUB= 150547 PLN-133741
...
38
ADAPTER LT PLN-100711L
...
39
WASHER T PLN-19133808
...
40
SLEEVE LTV PLN-100714L
...
41
"T, BEARING" PLN-9038R
...
50
WASHER T PLN-19131212
...
51
ST WHL INSERT CAP PLN-133742
...
52
BOLT T PLN-74780880
...
53
NUT LTV PLN-73680800
...
54
WASHER GT PLN-19172610
...
55
IDLER BRKT T PLN-120542X
...
56
IDLER-INSIDE T PLN-677A451
...
57
SPRING PLN-7190J
...
58
BOLT PLN-74760636
...
59
WASHER PLN-19131413
...
60
NUT.HEX.3/8-16UNC PLN-73220600
...
61
FRAME BRACKET GT PLN-5213J
...
62
SUB= 73690500 PLN-73680500
...
64
VALVE STEM LT PLN-65139
...
65
VALVE CAP PLN-59192
...
68
SUB= 677A928 PLN-106615X
...
70
JOINT.RH PLN-109850X
...
71
JOINT.LH PLN-109851X
...
72
SUB= 121159X PLN-7919J
...
73
NUT PLN-73700600
...
74
NUT PLN-73360600
...
76
WASHER PLN-121749X
...
77
WASHER PLN-121748X
...
78
BOLT GT PLN-74930516
...
79
HUB CAP PLN-104757X
...
80
BUSHING LT PLN-100644K
...
81
WASHER PLN-19111416
...
82
BOLT PLN-74760616
...
83
CLIP GTV PLN-100207K
...
85
TUBE T PLN-120199X
...
86
COLLAR PLN-121177X
...
87
SPACER LT PLN-101496X
...
88
WASHER T PLN-19132007
...
90
WASHER PLN-121748X
...
91
CAP PLN-121232X
...
96
SUB= 74930632 PLN-74760632

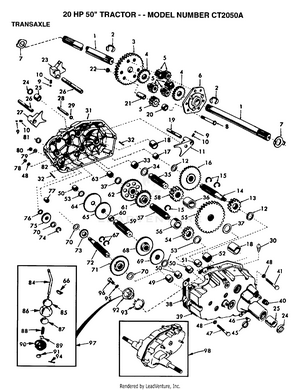

TRANSAXLE

...
...
1
SHAFT.AXLE.T PLN-4197R
...
2
KLIP RING PLN-12000034
...
3
FINAL GEAR T PLN-4199R
...
4
DIFF GEAR T PLN-4216R
...
5
DIFF PINION T PLN-4215R
...
6
DIFF CARRIER T PLN-4217R
...
7
WASHER T PLN-6256H
...
8
BOLT PLN-74020652
...
9
SUB= 100482K PLN-7392M
...
10
SUB= 145359 PLN-137261
...
11
SHIFT FORK T PLN-4985R
...
12
WASHER .T PLN-6266H
...
13
RED PINION T PLN-4212R
...
14
GEAR SHAFT T PLN-4196R
...
15
SNAP RING T PLN-6276H
...
16
GEAR T PLN-633A63
...
17
"T, BEARING" PLN-8118M
...
18
BEARING PLN-8740H1
...
19
SHAFT PLN-122238X
...
20
SPACER T PLN-4218R
...
21
PINION RS PLN-6252H1
...
22
GRIPCO NUT PLN-7810H
...
23
SHIFT FORK T PLN-4986R
...
24
OIL SEAL STD PLN-7393R
...
25
BRNG. T PLN-992R1
...
26
SHAFT T PLN-6216H
...
27
FORK T PLN-6262H
...
28
SHIFT SHAFT PLN-122254X
...
29
SEAL T PLN-6269H
...
30
VALVE M PLN-5855H
...
31
SUB= 532137976 PLN-137976
...
32
PIN T PLN-6277H
...
33
NEEDLE BRNG T PLN-4225R
...
34
RACE T PLN-7396H
...
35
GEAR SHAFT T PLN-4198R
...
36
SUB= 532004200 PLN-4200R
...
37
RACE T PLN-7395H
...
38
GASKET PLN-121878X
...
39
SUB= 532137974 PLN-137974
...
40
PLUG PIPE PLN-13320400
...
41
BOLT PLN-74780526
...
45
SEAL T PLN-6271H
...
46
SUB= 13020200 PLN-13060200
...
47
HEX BOLT PLN-74780524
...
48
LOCKWASHER PLN-10040500
...
49
"TI, BEARING" PLN-4895H
...
50
NEEDLE BRNG T PLN-4222R
...
51
NEEDLE BRNG T PLN-1529R
...
52
"STD, BEARING" PLN-8119M
...
53
BRNG RACE PLN-4220R
...
54
RED PINION T PLN-4209R
...
55
RED GEAR T PLN-4213R
...
56
PINION SPACER T PLN-4442R
...
57
GEAR SHAFT T PLN-4195R
...
58
GEAR SHAFT T PLN-4194R
...
60
SPACER T PLN-7528R
...
61
RED PINION T PLN-4208R
...
62
RED GEAR T PLN-4207R
...
63
RACE T PLN-7398H
...
64
LOW SPEED GEA T PLN-4203R
...
65
REVERSE GEAR T PLN-4204R
...
66
KEY T PLN-2898J
...
67
RING STD PLN-4926H
...
68
INTERMED GEAR T PLN-4205R
...
69
SUB= 532004206 PLN-4206R
...
70
"T, BEARING" PLN-1370H
...
71
CLUSTER GEAR T PLN-633A69
...
72
INPUT SHAFT T PLN-208J
...
73
LO SPEED PINION T PLN-4201R
...
74
SUB= 2225J PLN-12000002
...
75
IDLER GEAR T PLN-1153R
...
76
RACE T PLN-7395H
...
77
BRNG T PLN-3990H
...
78
NUT.HEX.5/16-18 PLN-73220500
...
79
WASHER T PLN-1167R
...
80
NUT PLN-73360700
...
81
SEAL STD PLN-6270H
...
82
SHAFT T PLN-7384H
...
84
GEAR SHIFT LVR T PLN-5384J
...
85
CAP T PLN-2978J
...
86
COVER AND PIN T PLN-633A85
...
87
SUB= 8739H1 PLN-8739H
...
88
SPRING TI PLN-4924H
...
89
WASHER PLN-19151516
...
90
WASHER PLN-19151516
...
90
SEAL T PLN-110542X
...
91
WASHER PLN-19181511
...
92
GEAR SHIFT GA T PLN-75J
...
93
GASKET T PLN-6274H
...
94
COTTER PIN PLN-76020412
...
95
LOCKWASHER PLN-10040500
...
96
BOLT PLN-74760514
...
97
GEAR SHFT LVR T PLN-633A109
...
98
TRANSAXLE.6SP.GT PLN-137982
