Husqvarna CT18544A (1996) Tractor

Model: CT18544A (1996)

Back To Assemblies

Save Part Not Listed?
product name

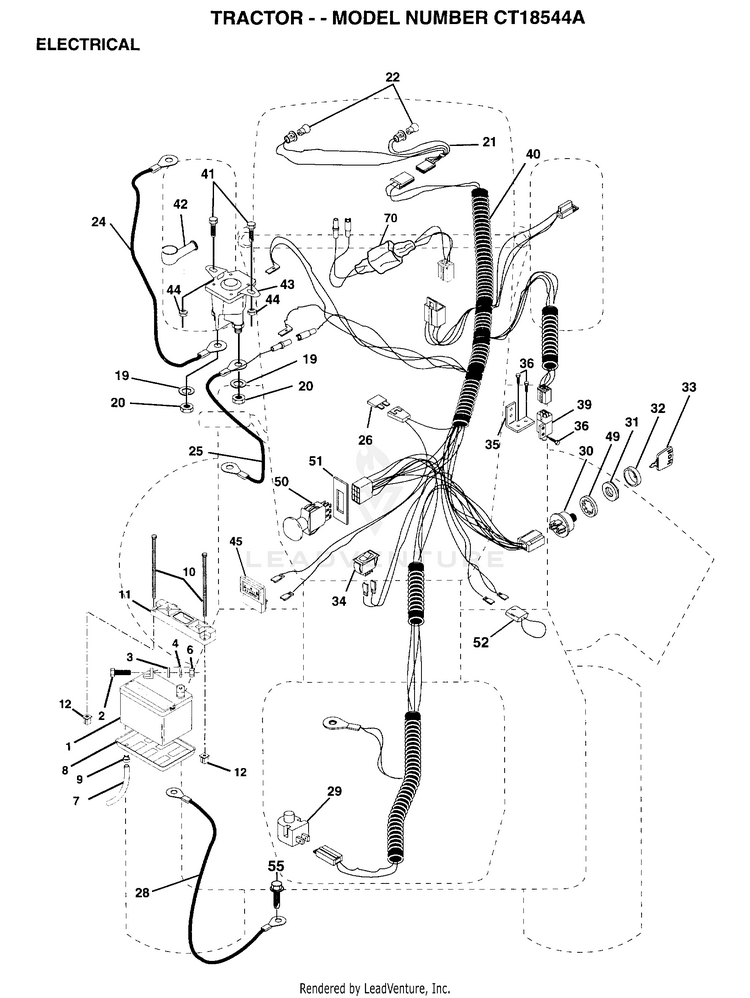

ELECTRICAL

...
...
1
SUB= 123899X HUS-146140
...
2
BOLT LT HUS-74760412
...
3
WASHER HUS-19091016
...
4
LOCKWASHER HUS-10040400
...
6
SUB= 50675 HUS-73220400
...
7
"DRAIN TU T, BATT" HUS-7697J
...
8
"TRAY T, BATTERY" HUS-7603J
...
9
HOSE CLAMP T HUS-109596X
...
10
SUB= 150177 HUS-145211
...
11
SUB= 150109 HUS-145209
...
12
SUB= 150177 HUS-145769
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
HARNESS.ASM.HDLIG HUS-147430
...
22
HEADLAMP BULB HUS-4152J
...
24
"CABLE T, BATTERY" HUS-4799J
...
25
CABLE.6GA.22W/16W HUS-146148
...
26
FUSE HYT HUS-108824X
...
28
CABLE.GRND.6GA.21 HUS-145491
...
29
SWITCH SEAT HUS-121305X
...
30
SUB= 163088 HUS-144921
...
31
SUB= 145774 HUS-140400
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY MLD GEN DELTA HUS-140401
...
34
SWITCH LT HUS-110712X
...
35
BRACKET LT HUS-108236X
...
36
SCREW HUS-17021008
...
39
SWITCH INTERLOCKT HUS-109553X
...
40
HARNESS.ING.ELEC. HUS-145493
...
41
BOLT HXHD FIN HUS-71110408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
44
NUT HXKEP 1/4X20 HUS-73640400
...
45
SUB= 122822X HUS-121433X
...
49
LOCKWASHER HUS-11151000
...
50
SUB= 154959 HUS-140404
...
51
RING RETAIN PTO HUS-140405
...
52
PROTECTION LOOP HUS-141940
...
55
SCREW LT HUS-17490508
...
70
HARN.ENG.TRI-CKT HUS-146096
