Husqvarna CT1844F (1993) Tractor

Model: CT1844F (1993)

Back To Assemblies

Save Part Not Listed?
product name

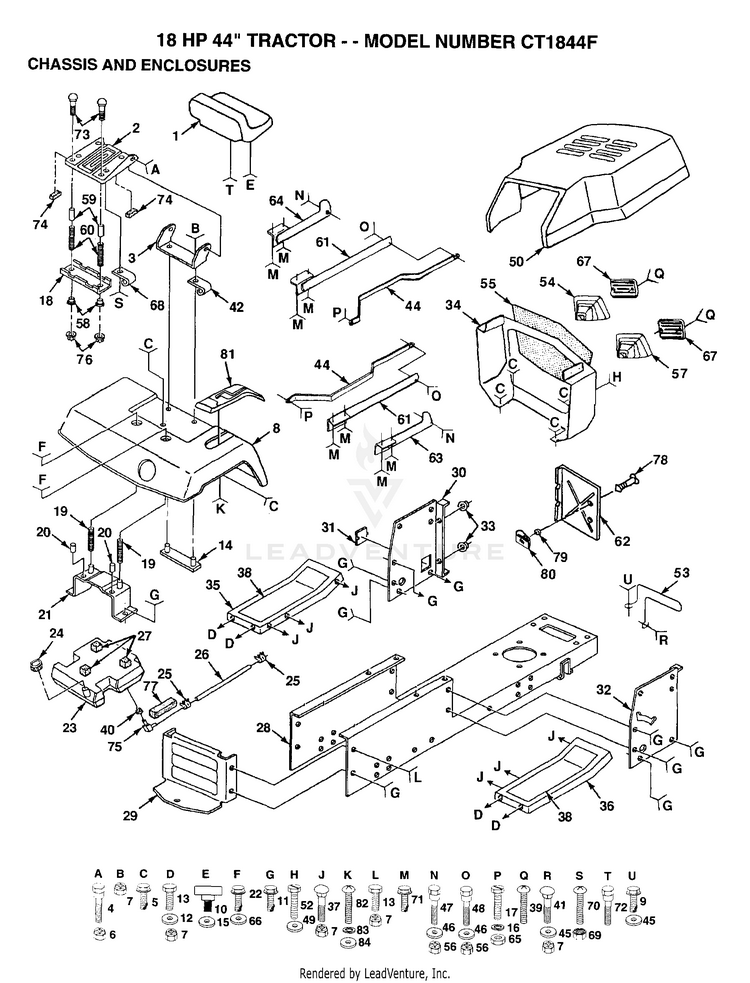

CHASSIS AND ENCLOSURES

...
...
1
SUB= 140121 HUS-127440
...
2
SUB= 155925 HUS-131451
...
3
SUB= 140551 HUS-126656X
...
4
SUB= 139888 HUS-105529X
...
5
SCREW LT HUS-17490608
...
6
SUB= 73690500 HUS-73680500
...
7
SUB= 73690600 HUS-73680600
...
8
FENDER HUS-123784X419
...
9
SCREW GTV HUS-17490616
...
10
"KNOB 1/2"" YT" HUS-120068X
...
11
SCREW HUS-17490612
...
12
WASHER HUS-19131312
...
13
SUB= 74780612 HUS-74760612
...
14
SUB= 140675 HUS-105511X
...
15
WASHER HUS-19171912
...
16
LOCKWASHER HUS-10040400
...
17
BOLT LT HUS-74760412
...
18
BRKT SWITCH HUS-121246X
...
19
SPRING COMPRESSIO HUS-124181X
...
20
NUT-PUSH YT HUS-105531X
...
21
BRKT.ASM.FENDER HUS-137113
...
22
SCREW LT HUS-17490508
...
23
SUB= 151346 HUS-127334X
...
24
SUB= 158990 HUS-123549X
...
25
HOSE CLAMP HUS-123487X
...
26
LINE, FUEL HUS-7384R
...
27
PAD-SPACER LT HUS-106082X
...
28
CHASSIS HUS-127166X
...
29
DRAW BAR HUS-123785X
...
30
PANEL.DASH.LH HUS-138644
...
31
COVER ACCESS HUS-121794X
...
32
PANEL.DASH.RH HUS-138643
...
33
SUB= 9151R HUS-110436X
...
34
GRILL T HUS-5351J419
...
35
SUB= 145244X419 HUS-105465X419
...
36
FOOTREST RH HUS-105464X419
...
37
BOLT HUS-72110606
...
38
FOOTREST PAD HUS-133671
...
39
SCREW HUS-17990808
...
40
BUSHING OUTLET T HUS-3645J
...
41
BOLT D HUS-72110608
...
42
CLIP T HUS-2751R
...
44
NLA HUS-109587X
...
45
WASHER HYT HUS-19131616
...
46
WASHER HUS-19090816
...
47
BOLT T HUS-7605J
...
48
"BOLT,SHOULDER" HUS-124549X
...
49
SUB= 19071018 HUS-8019J
...
50
SUB= 3607J419 HUS-3607J366
...
52
SCREW HUS-17511208
...
53
MUFFLER GUARD HUS-135029
...
54
SUB= 7606J361 HUS-7606J366
...
55
SCREEN GRILL GTV HUS-101235L
...
56
SUB= 73690400 HUS-73680400
...
57
SUB= 7607J361 HUS-7607J366
...
58
BUSHING HUS-121248X
...
59
SPACER SPLIT HUS-121249X
...
60
SPRING COMPRESSED HUS-123740X
...
61
STRAP ASSY-REAR T HUS-677A432
...
62
HEAT SHIELD HUS-133746
...
63
STRAP ASSY T HUS-677A876
...
64
STRAP ASSY T HUS-677A875
...
65
SUB= 50675 HUS-73220400
...
66
WASHER HUS-19131614
...
67
LENS T HUS-109671X
...
68
CLIP T HUS-4171R
...
69
"NUT,KEPS" HUS-73951000
...
70
SUB= 71031008 HUS-74641008
...
71
SUB= 17521312 HUS-17411310
...
72
"BOLT,SHOULDER" HUS-127018X
...
73
SUB= 872050411 HUS-72050411
...
74
STRIP FORM HUS-121251X
...
75
STEM.TANK.FUEL HUS-139277
...
76
SUB= 73900400 HUS-123976X
...
77
PAD IDLER TI HUS-109227X
...
78
STUD.1/4.TURN HUS-123650X
...
79
RETAINER LT HUS-105838X
...
80
RECEPTACLE LT HUS-105839X
...
81
CONSOLE SHIFTER HUS-123825X
...
82
SCREW HUS-74640806
...
83
"WASHER,LOCK" HUS-10100800
...
84
WASHER HUS-19060718
