product name

Husqvarna CT1844F (1993) Tractor

Model: CT1844F (1993)

Back To Assemblies

Save Part Not Listed?
product name

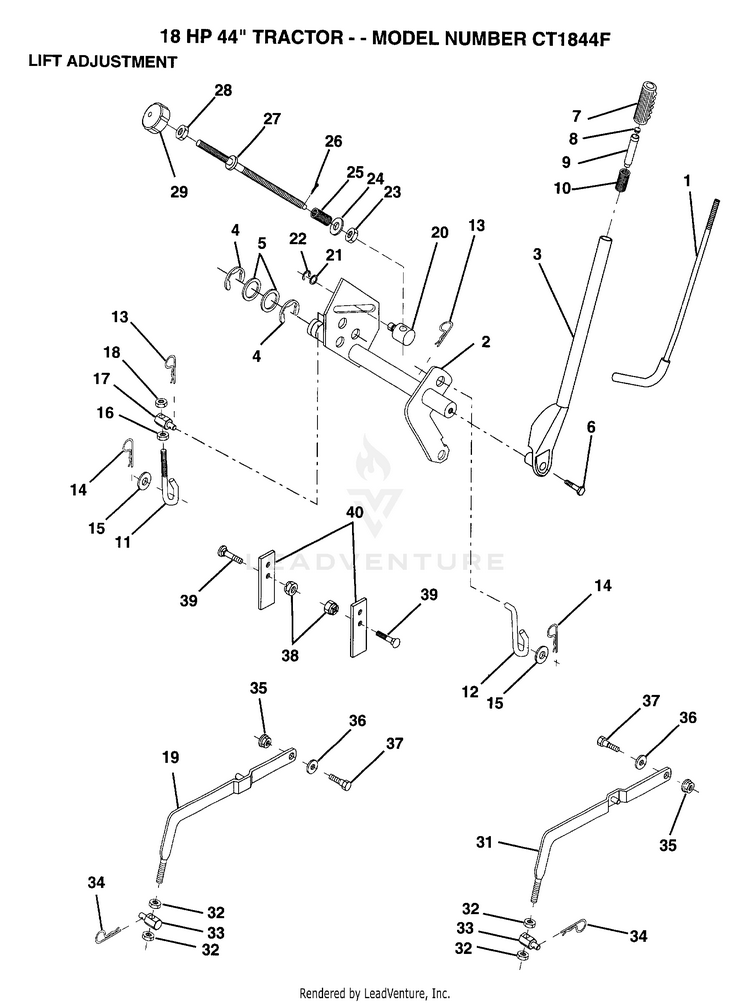

LIFT ADJUSTMENT

...
...
1
LEVER ROD LT HUS-121006X
...
2
SUB= 532131926 HUS-131926
...
3
SUB= 123096X HUS-121002X
...
4
E-RING HUS-12000022
...
5
WASHER HUS-19292016
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124385X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
PIVOT PIN T HUS-110448X
...
12
LIFT LINK LT HUS-110029X
...
13
SUB= 85902 HUS-4939M
...
14
SPRING.RETAINER HUS-4921H
...
15
WASHER T HUS-19171516
...
16
NUT HUS-73360700
...
17
SUB= 132793 HUS-110447X
...
18
NUT LOCK YTH HUS-73710700
...
19
LH SUSP ARM ASM HUS-121599X
...
20
TRUNION LT HUS-110810X
...
21
WASHER HUS-19151216
...
22
KLIP RING HUS-12000037
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
ROD LIFT LT HUS-110729X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
31
RH SUSP ARM ASM HUS-121598X
...
32
NUT HUS-73220800
...
33
SUB= 130171 HUS-106308X
...
34
SPRING H HUS-9135R
...
35
NUT SPECIAL T HUS-73980600
...
36
WASHER T HUS-110739X
...
37
"BOLT, SHOULDER LT" HUS-105848X
...
38
SUB= 73690600 HUS-73680600
...
39
SUB= 72110608 HUS-72140608
...
40
UPSTOP HUS-121252X
