Husqvarna CT1844F (1993) Tractor

Model: CT1844F (1993)

Back To Assemblies

Save Part Not Listed?
product name

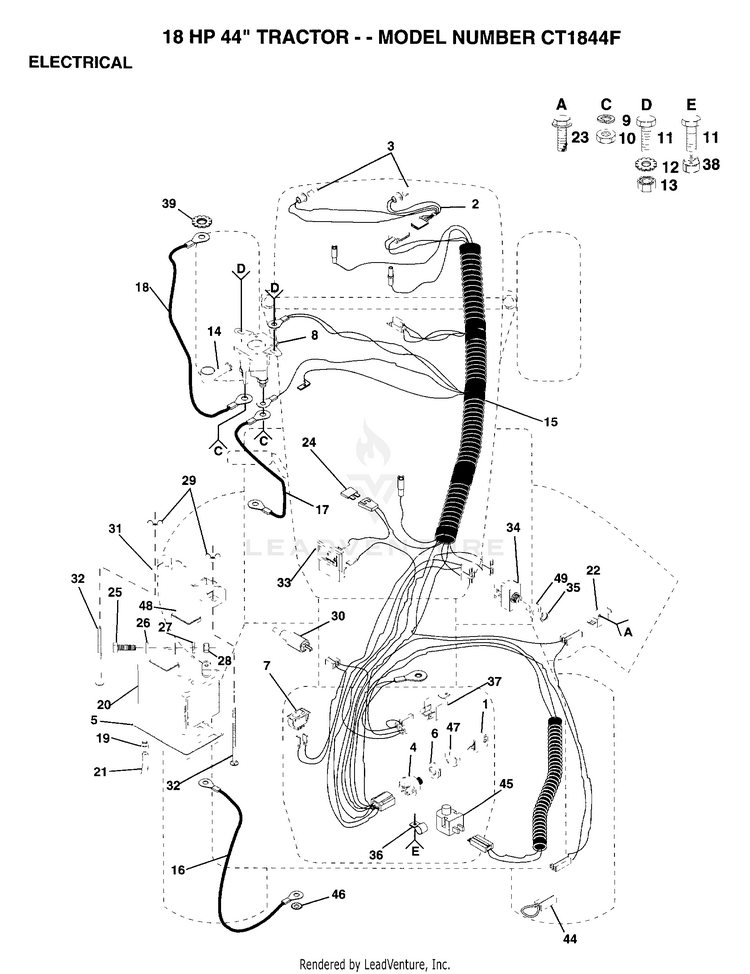

ELECTRICAL

...
...
1
KEY HUS-122147X
...
2
"HARNESS,LIGHT SOC" HUS-136850
...
3
SUB= 4152J HUS-7662J
...
4
SUB= STD365402 HUS-4406R
...
5
"TRAY T, BATTERY" HUS-7603J
...
6
NUT IGNITION HUS-124211X
...
7
SWITCH LT HUS-110712X
...
8
SUB= 146154 HUS-138406
...
9
SUB= 10040400 HUS-10090400
...
10
NUT HUS-73350400
...
11
BOLT HUS-74780408
...
12
LOCKWASHER HUS-11050400
...
13
NUT HUS-73510400
...
14
SUB= 154336 HUS-131563
...
15
HARNESS.IGN.B&S HUS-137757
...
16
CABLE T HUS-4207J
...
17
CABLE-BATTERY T HUS-4206J
...
18
"CABLE T, BATTERY" HUS-4799J
...
19
HOSE CLAMP T HUS-109596X
...
20
SUB= 123899X HUS-121537X
...
21
"DRAIN TU T, BATT" HUS-7697J
...
22
SWITCH-INTER. GT HUS-104445X
...
23
SCREW HUS-17021008
...
24
FUSE HYT HUS-108824X
...
25
BOLT LT HUS-74760412
...
26
WASHER HUS-19091016
...
27
LOCKWASHER HUS-10040400
...
28
SUB= 50675 HUS-73220400
...
29
SUB= 146525 HUS-123198X
...
30
DIODE ASM. HUS-135665
...
31
SUB= 150109 HUS-102476X
...
32
BOLT HUS-72240460
...
33
SUB= 122822X HUS-121433X
...
34
"SWITCH,PTO" HUS-126017X
...
35
HEX NUT T HUS-4022J
...
36
CLIPT HUS-235R
...
37
RELAY ASSY T HUS-109748X
...
38
SUB= 73690400 HUS-73680400
...
39
LOCKWASHER HUS-11150400
...
44
SUB= 141940 HUS-102501X
...
45
SWITCH SEAT HUS-121305X
...
46
LOCKWASHER HUS-11050600
...
47
SUB= 141226 HUS-123620X
...
48
"CAP,BATTERY " HUS-121264X
...
49
WASHER HUS-19171216
