Husqvarna CT1844E (1993) Tractor

Model: CT1844E (1993)

Back To Assemblies

Save Part Not Listed?
product name

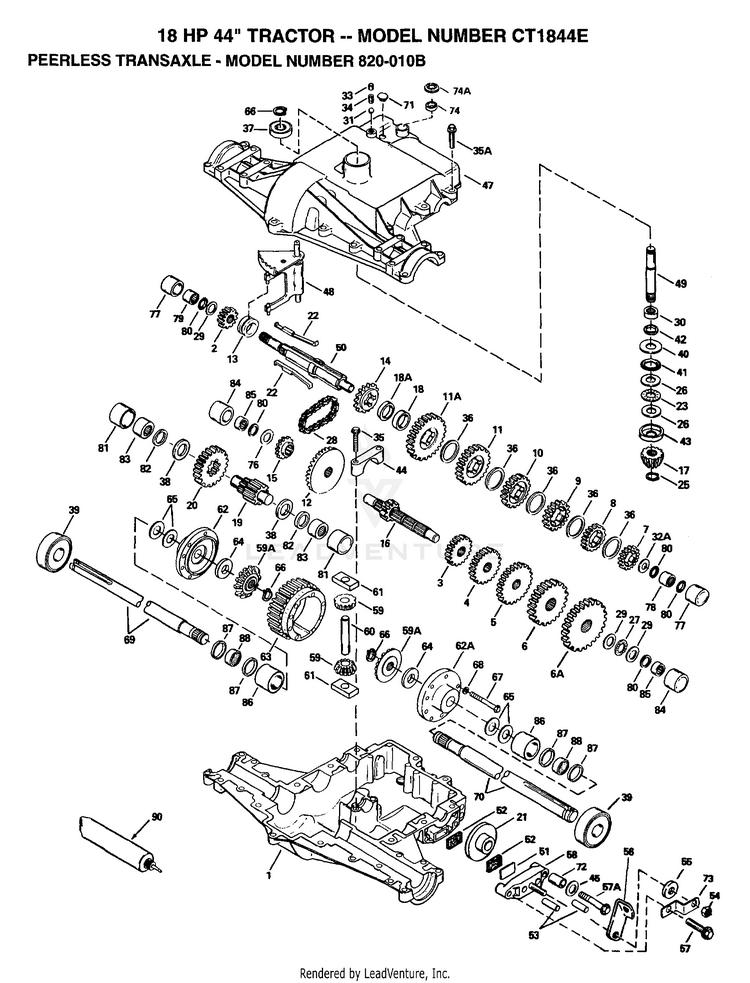

PEERLESS TRANSAXLE

...
...
1
CASE TRANSAXLE HUS-770088
...
2
GEAR, SPUR, 15T HUS-778253
...
3
GEAR, SPUR, 12 TEETH HUS-778211
...
4
GEAR, SPUR, 15T HUS-778199
...
5
GEAR, SPUR, 20T HUS-778200
...
6
GEAR, SPUR, 28T HUS-778202
...
6A
GEAR, SPUR, 31T HUS-778208
...
7
GEAR, SPUR, 19 TEETH HUS-778209
...
8
GEAR, SPUR, 22T HUS-778203A
...
9
GEAR, SPUR, 30T HUS-778205A
...
10
GEAR, SPUR, 35T HUS-778206A
...
11
GEAR, SPUR, 37 TEETH HUS-778207A
...
11A
GEAR, SPUR, 41T HUS-778216A
...
12
GEAR BEVEL, 33T HUS-778246
...
13
COLLAR SHIFT HUS-784216
...
14
SPROCKET 18T (REV) HUS-786123
...
15
SPROCKET 9T HUS-786082
...
16
SHAFT COUNTER HUS-776291
...
17
BEVEL PINION, 13T HUS-778245
...
18
SPACER, .350/.340 THICK HUS-786121
...
18A
SPACER, .276/.268 THICK HUS-786122
...
19
SHAFT, OUTPUT, 9T HUS-776275
...
20
GEAR, OUTPUT, 35T HUS-778247
...
21
DISK BRAKE HUS-790043
...
22
KEY HUS-792123A
...
23
BEARING THRUST HUS-780084
...
25
RETAINING RING HUS-788040
...
26
WASHER THRUST HUS-780051
...
27
THRUST BEARING HUS-780071
...
28
CHAIN, ROLLER HUS-786081
...
29
WASHER THRUST HUS-780072
...
30
BEARING NEEDLE HUS-780155
...
31
BALL STEEL, 5/16" DIA. HUS-792077
...
32A
WASHER, THRUST HUS-780109
...
33
SCREW, 3/8-16 X 3/8" HUS-792078
...
34
SPRING HUS-792079
...
35
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
35A
SCREW HEX HD 5/16-18 X 1-1/4 HUS-792129
...
36
WASHER THRUST HUS-780108
...
37
BEARING BALL HUS-780119
...
38
WASHER THRUST HUS-780128
...
39
BEARING BALL HUS-780050
...
40
WASHER HUS-780165
...
41
"O" RING HUS-788077
...
42
OIL SEAL 3/4 HUS-788042
...
43
WASHER CUPPED HUS-780166
...
44
BEARING CAP HUS-786131
...
45
WASHER FLAT HUS-792128
...
47
COVER TRANSAXLE HUS-772098A
...
48
ROD AND FORK ASSY SHIFT HUS-784342
...
49
SHAFT INPUT HUS-776274
...
50
SHAFT BRAKE HUS-776313
...
51
PLATE BRAKE PAD HUS-790007
...
52
PAD BRAKE HUS-790006
...
53
PIN DOWEL HUS-786026
...
54
LOCKNUT 5/16-24 HUS-792075
...
55
WASHER, FLAT HUS-792076
...
56
LEVER BRAKE HUS-790047
...
57
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
57A
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
57A
SCREW FLNG HEX 1/4-20 X 2-1/4 HUS-792085
...
58
HOLDER BRAKE PAD HUS-790025
...
59
PINION, 10T HUS-778197
...
59A
GEAR BEVEL HUS-778198
...
60
PIN DRIVE HUS-786019
...
61
BLOCK DRIVE HUS-786027
...
62
CARRIER DIFF THREADED HOLES HUS-774833
...
62A
CARRIER DIFF HUS-774834
...
63
GEAR, RING, 31T HUS-778248
...
64
WASHER HUS-780107
...
65
WASHER THRUST HUS-780042
...
66
RING STRAP HUS-792018
...
67
SCREW, 1/4-20 X 2-1/4 HUS-792020
...
68
WASHER LOCK 1/4 HUS-792006
...
69
AXLE, 12-5/16" LONG HUS-774832
...
70
AXLE, 16-3/16" LONG HUS-774831
...
71
PLUG, THRDED, 9/16-18 HUS-792074
...
72
SPACER HUS-786067
...
73
BRKT BRAKE LEVER HUS-786086
...
76
WASHER HUS-780153
...
77
SLEEVE HUS-786144
...
78
BEARING NEEDLE HUS-780150
...
79
BEARING NEEDLE HUS-780152
...
80
"O" RING HUS-792001
...
81
SLEEVE STEPPED HUS-786142
...
82
RING SQ CUT HUS-788071
...
83
BEARING NEEDLE CAPPED HUS-780168
...
84
SLEEVE STEPPED HUS-786143
...
85
BEARING NEEDLE CAPPED HUS-780151
...
86
SLEEVE STEPPED HUS-786145
...
87
RING SQ CUT HUS-788070
...
88
BEARING NEEDLE HUS-780031
...
90
GREASE BENTONITE, 32 OZ. HUS-788067B
