Husqvarna CT1844E (1993) Tractor

Model: CT1844E (1993)

Back To Assemblies

Save Part Not Listed?
product name

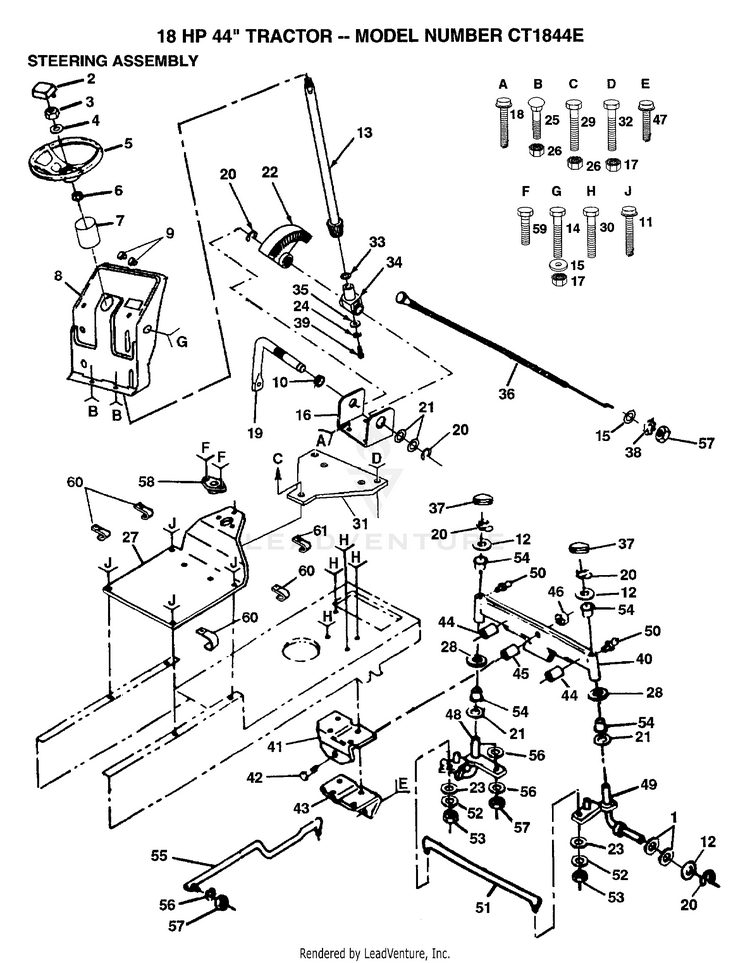

STEERING

...
...
1
WASHER HUS-121749X
...
2
ST WHL INSERT CAP HUS-133742
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150547 HUS-133741
...
6
ADAPTER LT HUS-100711L
...
7
SLEEVE LTV HUS-100714L
...
8
DASH HUS-122341X
...
9
PLUG-DASH T HUS-8022J
...
10
NYLINER T HUS-109816X
...
11
SCREW LT HUS-17490608
...
12
WASHER HUS-121748X
...
13
SHAFT&GEAR STR T HUS-128755
...
14
SUB= 74780612 HUS-74760612
...
15
WASHER HUS-19131316
...
16
"BRKT,STEERING" HUS-124036X
...
17
NUT HUS-73510600
...
18
SCREW HUS-17490612
...
19
SUB= 918127501 HUS-127501
...
20
RING HUS-12000029
...
21
WASHER .T HUS-6266H
...
22
GEAR SECTOR HUS-136874
...
23
WASHER M HUS-19111216
...
24
LOCKWASHER HUS-10040400
...
25
SCREW HUS-74180512
...
26
NUT HUS-73510500
...
27
SADDLE HUS-124588X014
...
28
WASHER HUS-19272016
...
29
SUB= 74780612 HUS-74760612
...
30
SCREW SPECIAL HUS-122819X
...
31
SUB= 140181 HUS-106965X
...
32
BOLT HUS-74760616
...
33
THRUST WASHER HUS-57079
...
34
SUPPORT.SHAFT HUS-124035X
...
35
SUB= 532126684 HUS-126684X
...
36
CHOKE CONTROL HUS-132779
...
37
CAP HUS-121232X
...
38
LOCKWASHER HUS-11050600
...
39
"SCREW,SPECIAL" HUS-71070410
...
40
FRONT AXLE HUS-108075X
...
41
SUPPORT-SADDL T HUS-105663X
...
42
BOLT LT HUS-74761060
...
43
SUPPORT.SADDLE.FT HUS-105664X
...
44
AXLE PIN HUS-132624
...
45
BEARING HUS-110438X
...
46
"NUT-LOC,FLANGE LT" HUS-73901000
...
47
SCREW LT HUS-17490508
...
48
SPINDLE LH HUS-135227
...
49
SPINDLE RH HUS-135228
...
50
ZERK M HUS-6855M
...
51
TIE ROD HUS-130467
...
52
LOCKWASHER HUS-10040500
...
53
NUT.LOCK.5/16-24 HUS-73810500
...
54
COL. SRTG. BEAR. HUS-3366R
...
55
SUB= 532130468 HUS-130468
...
56
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
57
SUB= 7810H HUS-73610600
...
58
SUB= 155108 HUS-1554J
...
59
SUB= 98000165 HUS-17431008
...
60
CLIP T HUS-2751R
...
61
INSUL CLIP T HUS-5320R
