Husqvarna CT1844E (1993) Tractor

Model: CT1844E (1993)

Back To Assemblies

Save Part Not Listed?
product name

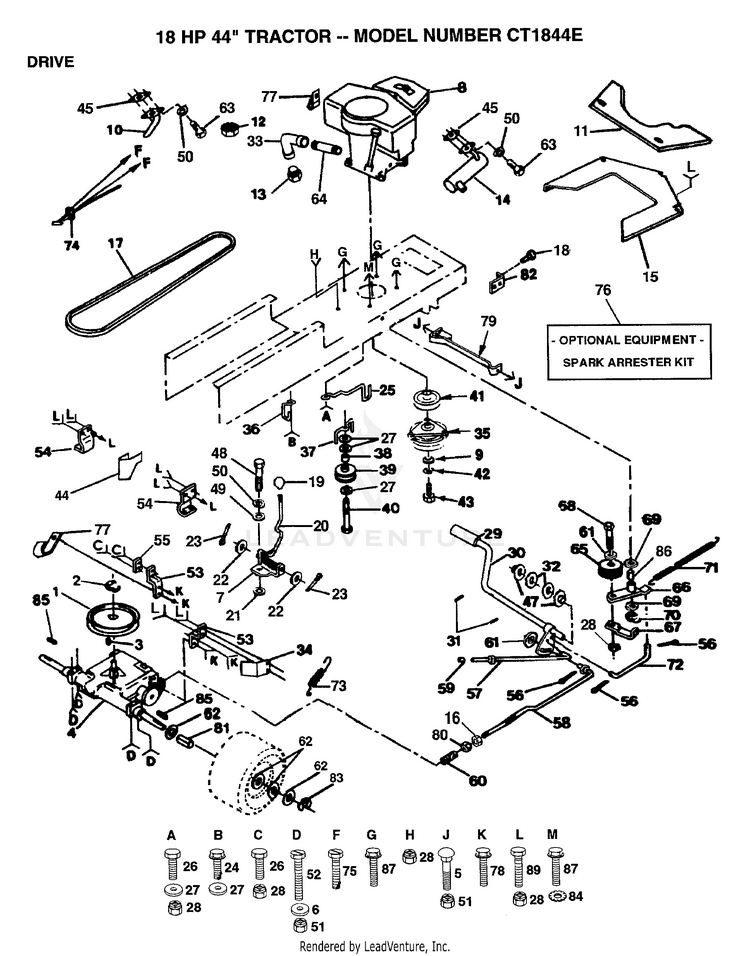

DRIVE

...
...
1
PULLEY TRANSAXLE HUS-121327X
...
2
RING HUS-12000004
...
3
SUB= 2228M1 HUS-2228M
...
4
TRANSAXLE 6 SP HUS-820-010B
...
5
BOLT HUS-72140506
...
6
WASHER HUS-19111214
...
7
PLATE SHIFT LT HUS-106919X
...
8
ENGINE B&S 18HP HUS-422707
...
9
WASHER HUS-126197X
...
10
EXHAUST TUBE T HUS-100229L
...
11
REAR BAFFLE T HUS-109740X
...
12
NUT HUS-73510600
...
14
MUFFLER HYT HUS-108373X
...
15
SHIELD HEAT FRT HUS-123190X
...
16
NUT HUS-73350600
...
17
V BELT HUS-123554X
...
18
SCREW HUS-17021008
...
19
CONTROL KNOB LT HUS-106279X
...
20
ROD SHIFTER T HUS-124378X
...
21
WASH-SHFT PLT LT HUS-105701X
...
22
WASHER HUS-19151216
...
23
PIN COTTER 1/8 HUS-76020416
...
24
SCREW HUS-17490612
...
25
KEEPER.BELT.ENG.L HUS-129921
...
26
BOLT HUS-74760616
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
SUB= 149001 HUS-122424X
...
31
SUB= 2882J HUS-1572H
...
32
WASHER LT HUS-19211616
...
33
ELBOW HUS-13200300
...
34
"KEEPER,BELT RH" HUS-127290
...
35
SUB= 142600 HUS-126112X
...
36
SUB= 140312 HUS-136715
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
PULLEY.IDLER.FLAT HUS-123674X
...
40
BOLT HUS-74760644
...
41
PULLEY ENGINE HUS-136906
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 150280 HUS-71170768
...
44
"KEEPER,BELT LH" HUS-127289
...
45
SUB= 272250 HUS-8545J
...
47
NYLON BEARING HUS-120183X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER LT HUS-19091210
...
50
LOCKWASHER HUS-10040400
...
51
SUB= 73690500 HUS-73680500
...
52
BOLT HEX HUS-74780544
...
53
STRAP TORQUE HUS-122109X
...
54
BRACKET LT HUS-109167X
...
55
PLATE-STRAP LT HUS-106157X
...
56
COTTER PIN HUS-76020412
...
57
BRAKE PARK ROD HUS-133261
...
58
ROD BRAKE HUS-121862X
...
59
SUB= 71673 HUS-7733J
...
60
SPRING ROD LT HUS-106888X
...
61
WASHER HUS-19131316
...
62
WASHER HUS-123800X
...
63
SUB= 74780414 HUS-74780412
...
64
PIPE NIPPLE LT HUS-13280336
...
65
SUB= 139245 HUS-127783
...
66
ARM IDLER HUS-123789X
...
67
RETAIN BELT HUS-123205X
...
68
SUB= 74930624 HUS-74760624
...
69
WASHER LT HUS-110812X
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
72
"LINK, CLUTCH T" HUS-105710X
...
73
SUB= 146682 HUS-110422X
...
74
SUB= 133439 HUS-132773
...
75
SCREW LT HUS-17720410
...
76
SPARK ARREST KIT HUS-132922
...
77
CLIP T HUS-2751R
...
78
SCREW HUS-17490512
...
79
SUB= 109172X HUS-109169X
...
80
NUT HUS-73800600
...
81
SPACER HYT HUS-108097X
...
82
BRACKET LT HUS-108236X
...
83
E RING HYT HUS-12000053
...
84
LOCKWASHER HUS-11050600
...
85
SQ KEY STD HUS-9396E
...
86
"LY, BEARING" HUS-105706X
...
87
SCREW LT HUS-17490624
...
89
SUB= 74780612 HUS-74760612
