Husqvarna CT1844C (1992) Tractor

Model: CT1844C (1992)

Back To Assemblies

Save Part Not Listed?
product name

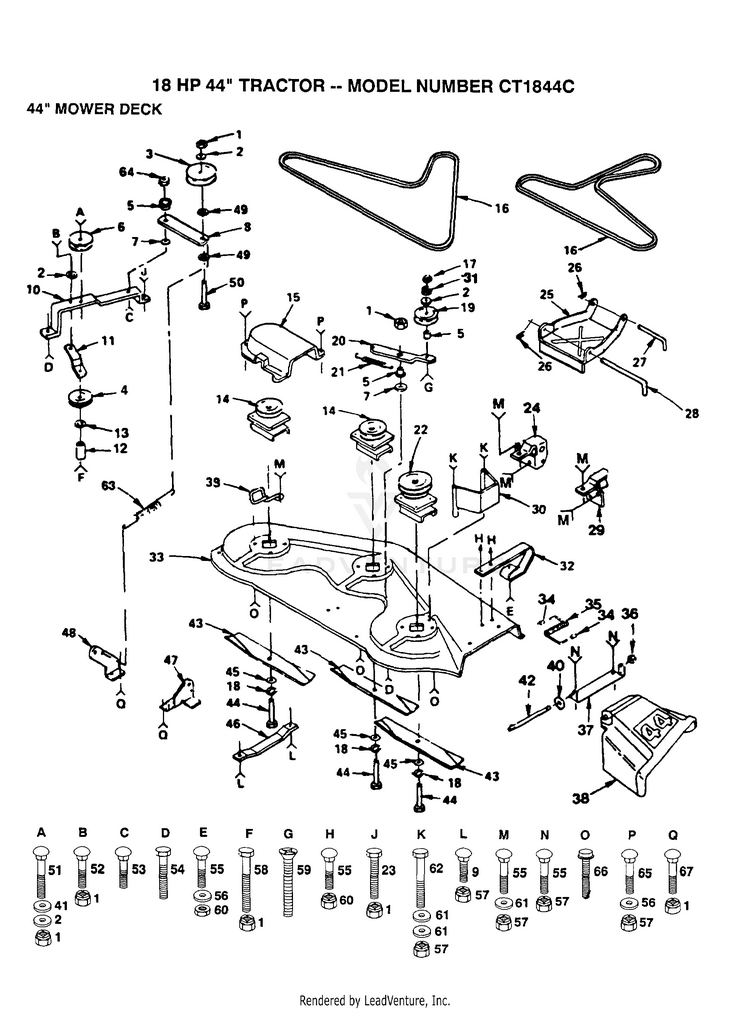

MOWER DECK

...
...
1
SUB= 73690600 HUS-73680600
...
2
WASHER HUS-19131614
...
3
PULLEY IDLER HUS-121316X
...
4
IDLER-FLAT T HUS-102403X
...
5
SPACER RETAINER HUS-106902X
...
6
IDLER-INSIDE T HUS-677A451
...
7
"WASHER, WEAR LT" HUS-106513X
...
8
ARM IDLER HUS-121425X
...
9
BOLT HUS-72110505
...
10
"SUPPORT YT, BAR" HUS-106523X
...
11
BRACE-IDLER YT HUS-106522X
...
12
SPACER HUS-121236X
...
13
WASHER HUS-19131316
...
14
SUB= 136819 HUS-121658X
...
15
GUARD YT HUS-106214X
...
16
V-BELT HUS-106085
...
17
NUT.HEX.3/8-16UNC HUS-73220600
...
18
SUB= 10040600 HUS-10030600
...
19
IDLER.FLAT.GTV HUS-102932X
...
20
ARM-IDLER YT HUS-106526X
...
21
SPRING T HUS-7644J
...
22
JACKSHAFT HUS-121705X
...
23
BOLT HUS-74760616
...
24
BRACKET LH YT HUS-106511X
...
25
"STOP, LINK PARAL" HUS-129762
...
26
SPRING.RETAINER HUS-4921H
...
27
"ROD, FRT. PARAL T" HUS-105744X
...
28
HINGE PIN T HUS-109835X
...
29
BRACKET RH YT HUS-106512X
...
30
GUARD BELT HYT HUS-108119X
...
31
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
32
SUB= 136321 HUS-8418J
...
33
HOUSING MOWER HUS-121423
...
34
CAP-SLEEVE LT HUS-105304X
...
35
SUB= 123713X HUS-106734X
...
36
NUT PUSH M HUS-110452X
...
37
SUB= 137607 HUS-109743X
...
38
DEFLECTOR SHIELD HUS-109785X
...
39
BELT RETIANER HUS-121352X
...
40
WASHER HUS-19111016
...
41
WASHER HUS-19131410
...
42
ROD-HINGE T HUS-106735X
...
43
SUB= 25034 HUS-106635X
...
44
BOLT.3/8-24X1-1/2 HUS-74610624
...
45
WASHER HUS-19132012
...
46
RUNNER-LH M HUS-7631J
...
47
BRKT SUSP REAR RH HUS-123807X
...
48
BRKT SUSP REAR LH HUS-123808X
...
49
WASHER HUS-19131210
...
50
BOLT HUS-72140620
...
51
BOLT HUS-72140614
...
52
SUB= 72110608 HUS-72140608
...
53
BOLT HUS-72140612
...
54
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
55
BOLT HUS-72140506
...
56
WASHER HUS-19111116
...
57
SUB= 73690500 HUS-73680500
...
58
BOLT - HEX 3/8 - 16 X 3 HUS-74760648
...
59
SCREW YT HUS-74110632
...
60
SUB= 68478 HUS-1685H
...
61
WASHER M HUS-19111216
...
62
BOLT HUS-74760580
...
63
"SPRING.EXT.8.5""" HUS-102727X
...
64
LOCKNUT HUS-73930600
...
65
SUB= 72270506 HUS-72110506
...
66
SCREW HUS-17490612
...
67
BOLT HUS-72140606
...
xx
SUB= 532131508 HUS-121826X
