Husqvarna CT1844A (1991) Tractor

Model: CT1844A (1991)

Back To Assemblies

Save Part Not Listed?
product name

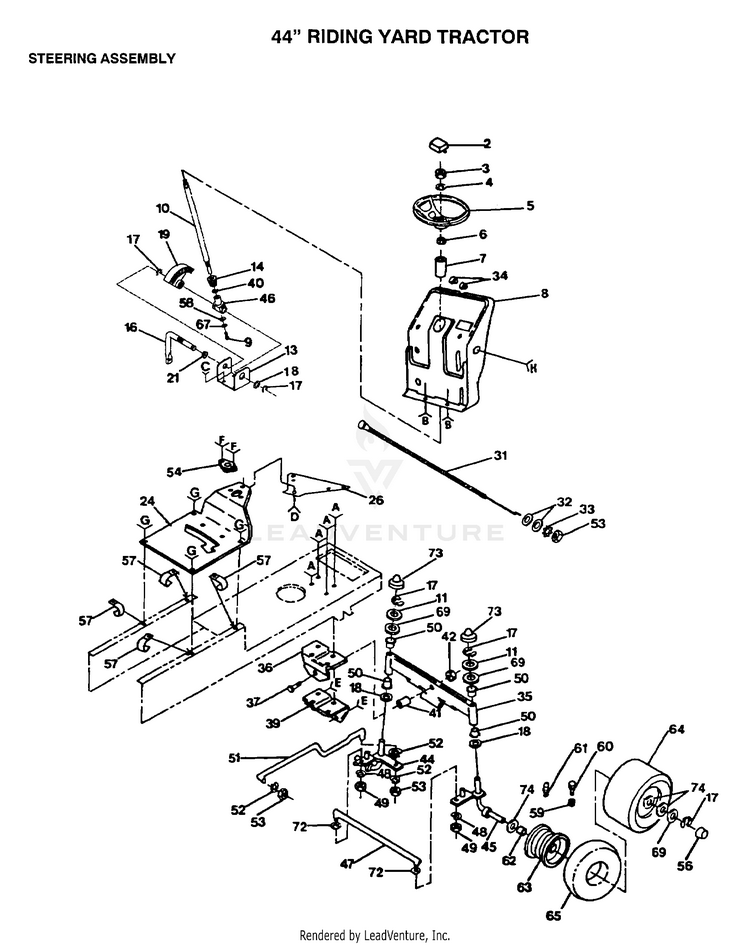

STEERING

...
...
2
INSERT-WHEEL LT HUS-100710L
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150547 HUS-100713N
...
6
ADAPTER LT HUS-100711L
...
7
SLEEVE LTV HUS-100714L
...
8
DASH HUS-122341X
...
9
"SCREW,SPECIAL" HUS-71070410
...
10
SUB= 128755 HUS-124041X
...
11
WASHER HUS-19272016
...
13
"BRKT,STEERING" HUS-124036X
...
14
"GEAR,PINION" HUS-124037X
...
16
SUB= 156365 HUS-124033X
...
17
RING HUS-12000029
...
18
WASHER .T HUS-6266H
...
19
SUB= 136874 HUS-124034X
...
21
NYLINER T HUS-109816X
...
24
SADDLE HUS-124588X014
...
26
SUB= 140181 HUS-106965X
...
31
SUB= 132779 HUS-121525X
...
32
WASHER HUS-19131316
...
33
LOCKWASHER HUS-11050600
...
34
PLUG-DASH T HUS-8022J
...
35
FRONT AXLE HUS-108075X
...
36
SUPPORT-SADDL T HUS-105663X
...
37
BOLT LT HUS-74761060
...
39
SUPPORT.SADDLE.FT HUS-105664X
...
40
THRUST WASHER HUS-57079
...
41
BEARING HUS-110438X
...
42
SUB= 73901000 HUS-73601000
...
44
SPINDLE-LH LT HUS-105656X
...
45
SUB= 130524 HUS-105654X
...
46
SUPPORT.SHAFT HUS-124035X
...
47
ROD TIE HUS-121334X
...
48
LOCKWASHER HUS-10040500
...
49
NUT.LOCK.5/16-24 HUS-73810500
...
50
COL. SRTG. BEAR. HUS-3366R
...
51
SUB= 532130468 HUS-124032X
...
52
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
53
SUB= 7810H HUS-73610600
...
54
SUB= 155108 HUS-1554J
...
56
HUB CAP HUS-104757X
...
57
CLIP T HUS-2751R
...
58
SUB= 532126684 HUS-126684X
...
59
VALVE CAP HUS-59192
...
60
VALVE STEM LT HUS-65139
...
61
FITTING LT HUS-278H
...
62
"FLANGE, BEARING" HUS-9040H
...
63
SUB= 106732X427 HUS-106732X311
...
64
SUB= 122073X HUS-126162X
...
65
TUBE.5.3/4.5/6 HUS-59904
...
67
LOCKWASHER HUS-10040400
...
69
WASHER HUS-121748X
...
72
WASHER M HUS-19111216
...
73
CAP HUS-121232X
...
74
WASHER HUS-121749X
...
xx
SUB= 127075 HUS-109325X
...
xx
DECAL DASH HUS-121892X
