Husqvarna CT1642A (1994) Tractor

Model: CT1642A (1994)

Back To Assemblies

Save Part Not Listed?
product name

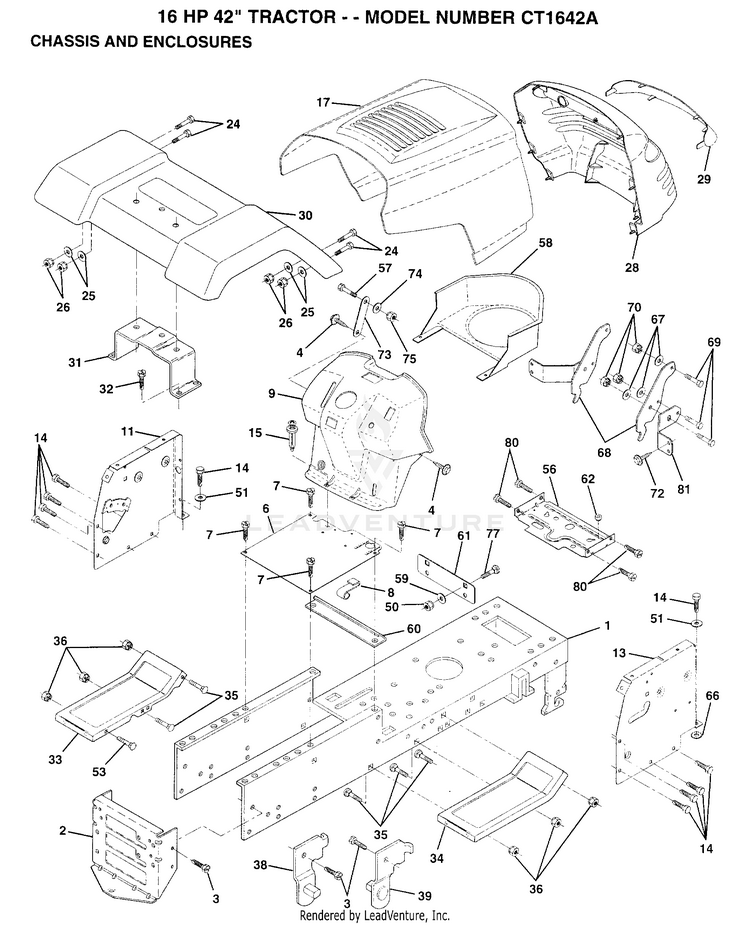

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
SCREW HEX CRT HUS-17490412
...
6
SUB= 145206X431 HUS-140169
...
7
SCREW HUS-17490612
...
8
CLIP T HUS-2751R
...
9
SUB= 532142465 HUS-140072
...
11
PANEL ASM DASH HUS-140311
...
13
SUB= 146959 HUS-140178
...
14
SCREW LT HUS-17490608
...
15
RIVET.PUSH.PLATE HUS-138096
...
17
HOOD.PNT.STEEL HUS-139394X419
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
SUB= 157373 HUS-140141
...
29
LENS GRILLE HUS-140273
...
30
FENDER.PNT.LT HUS-140001X419
...
31
BRACKET SUPT FEND HUS-139976
...
32
SCREW HUS-17490612
...
33
FOOTREST LH HUS-105476X419
...
34
FOOTREST HUS-105475X419
...
35
BOLT HUS-72110606
...
36
NUT HUS-73800600
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
50
NUT HUS-73800600
...
51
WASHER HUS-19131216
...
53
SUB= 72110608 HUS-72140608
...
56
SUB= 140281X431 HUS-140281
...
57
SUB= 74780414 HUS-74780412
...
58
DUCT.AIR.B&S.18HP HUS-140547
...
59
WASHER HUS-19171416
...
60
SPACER FENDER LT HUS-139977
...
61
PLATE EXTEN FEND HUS-139978
...
62
SUB= 532124028 HUS-124028X
...
66
LOCKWASHER HUS-11050600
...
67
WASHER HUS-19091416
...
68
HING PICK-OFF HD HUS-140219
...
69
BOLT LT HUS-74760412
...
70
SUB= 73690400 HUS-73680400
...
72
SUB= 91817030814 HUS-17030814
...
73
BRACE SUPT DASH HUS-142779
...
74
WASHER HUS-19091416
...
75
NUT HUS-73800400
...
77
SUB= 72110608 HUS-72140608
...
80
SCREW HUS-17490512
...
81
BRACKET GRILLE HUS-143007
