Husqvarna CT1642A (1994) Tractor

Model: CT1642A (1994)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CONTROL.THR.33. HUS-140309
...
2
SCREW LT HUS-17720410
...
3
ENGINE, B&S HUS-402707
...
4
SUB= 149723 HUS-137978
...
5
EXHAUST ASM LH HUS-136989
...
6
SUB= 144068 HUS-136988
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SHIELD HEAT LT HUS-143600
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 74780414 HUS-74780412
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW HUS-17490620
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 161911 HUS-140280
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19132012
...
37
LINE FUEL HUS-137040
...
39
SCREW HEX CRT HUS-17490412
...
40
WASHER HUS-19091416
...
42
SUB= 532132780 HUS-132780
...
43
SUB= 7810H HUS-73610600

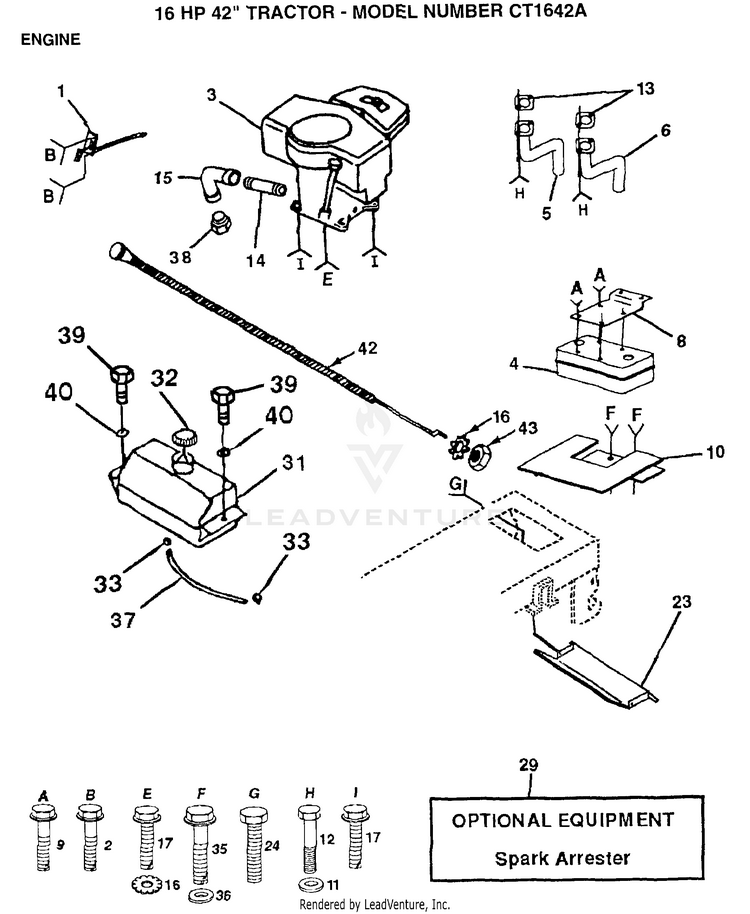

Schematic Image Zoomed
