Husqvarna CT153 - 96051001500 (2011-03) Tractors/Ride Mower

Model: CT153 - 96051001500 (2011-03)

Back To Assemblies

Save Part Not Listed?
product name

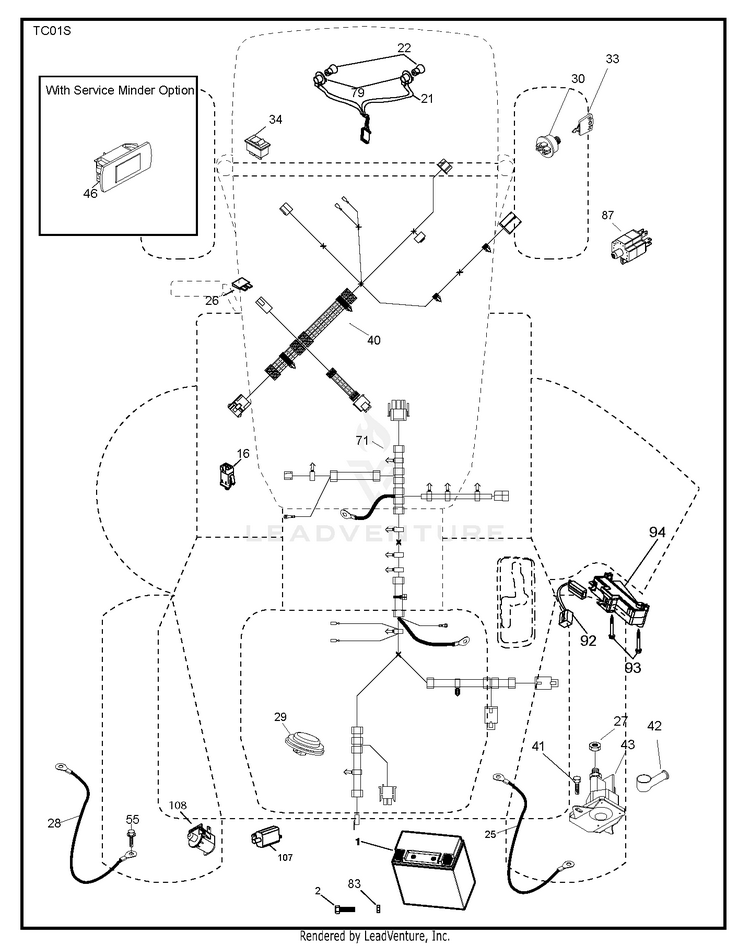

ELECTRICAL

...
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
83
NUT SQUARE M6, 11X8.5 ZPB HUS-594086501
...
108
SWITCH.SNAPMOUNT.NC HUS-532421062
...
42
COVER.TERMINAL.RED HUS-532154336
...
93
Bolts HUS-596039601
...
22
LIGHTBULB HUS-532004152
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
94
MODULE.REVERSE.ROS HUS-532191834
...
107
SWITCH.FBI.CRD HUS-583100701
...
25
CABLE.BATTERY.24.RED.8AWG HUS-583516901
...
28
HUS-532437163
...
79
BULB HOLDER ASM. HUS-532175242
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
34
SWITCH LT HUS-532110712
...
71
HUS-532437160
...
43
Solenoids HUS-582042802
...
1
AGM BATTERY HUS-536147701
...
40
HARNESS.DASH.SRD HUS-583384801
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
87
SWITCH.RAILMOUNT.NO-NC-NC HUS-583385701
...
2
Bolts HUS-596320101
...
41
Screws HUS-596437001
