Husqvarna CT14542D (1997) Tractor

Model: CT14542D (1997)

Back To Assemblies

Save Part Not Listed?
product name

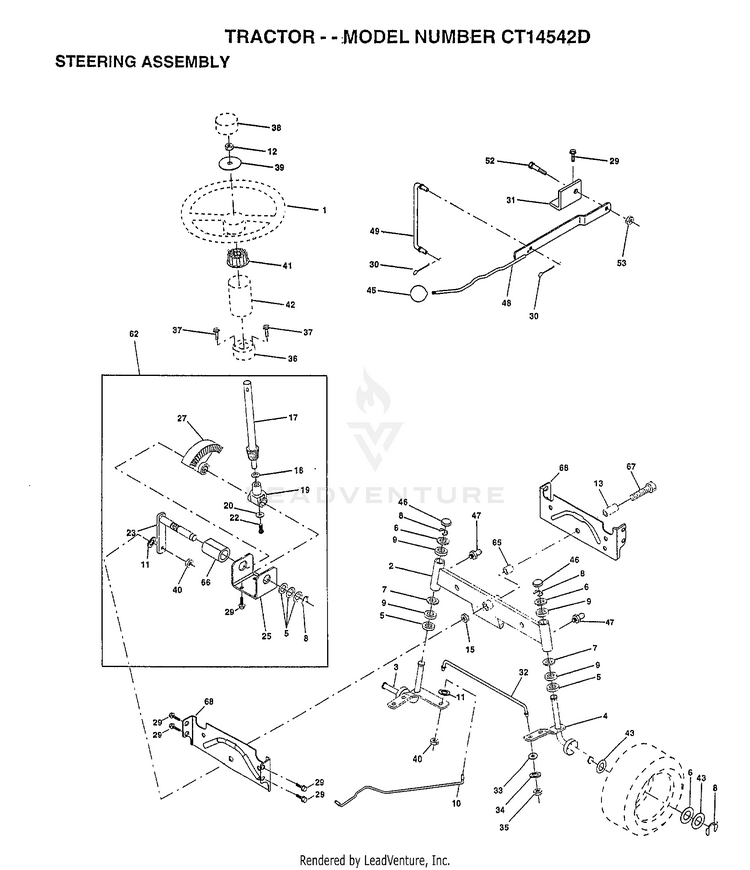

STEERING ASSEMBLY

...
...
1
WHEEL STR AYP BLK HUS-140044
...
2
AXLE ASM HUS-154427
...
3
SPINDLE.ASM.LH HUS-156483
...
4
"SPINDLE ASM,RH" HUS-157473
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
9
COL. SRTG. BEAR. HUS-3366R
...
10
DRAGLINK-STAMPED HUS-156438
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
SUB= 73360800 HUS-73940800
...
13
BEARING AXLE HUS-154779
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
17
SHAFT ASM STEERNG HUS-156543
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT HUS-124035X
...
20
SUB= 532126684 HUS-126684X
...
21
LOCKWASHER HUS-10040400
...
22
SCREW HEX SOC1/4- HUS-71200410
...
23
SUB= 918127501 HUS-127501
...
25
BRKT-STEERING HUS-154406
...
27
GEAR SECTOR HUS-136874
...
29
SCREW HUS-17490612
...
30
COTTER PIN HUS-76020412
...
31
BRKT.PVT.MAN.LVR. HUS-138171
...
32
ROD.TIE.19.75 HUS-139929
...
33
WASHER M HUS-19111216
...
34
LOCKWASHER HUS-10040500
...
35
NUT.LOCK.5/16-24 HUS-73810500
...
36
BUSHING.STRG.3/4 HUS-145207
...
37
"SCREW-TT,10-32 FL" HUS-152927
...
38
CAP STEER AYP HUS-140045
...
39
WASHER HUS-100712K
...
40
GRIPCO NUT HUS-7810H
...
41
ADAPTER LT HUS-100711L
...
42
BOOT SHAFT STEER HUS-140216
...
43
WASHER HUS-121749X
...
45
KNOB T (1/2-HOLE) HUS-106933X
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
48
LEVER.ASM.CLUTCH HUS-146841
...
49
LINK CLTCH W/NUTS HUS-131291
...
52
"BOLT, SHOULDER LT" HUS-106451X
...
53
SUB= 73690600 HUS-73680600
...
62
KIT STEERING ASM HUS-156595
...
65
SPACER AXLE HUS-154780
...
66
"BEARING-ARM,PITMA" HUS-154404
...
67
BOLT HUS-74781044
...
68
BRACE AXLE HUS-154429
