Husqvarna CT14542B (1996) Tractor

Model: CT14542B (1996)

Back To Assemblies

Save Part Not Listed?
product name

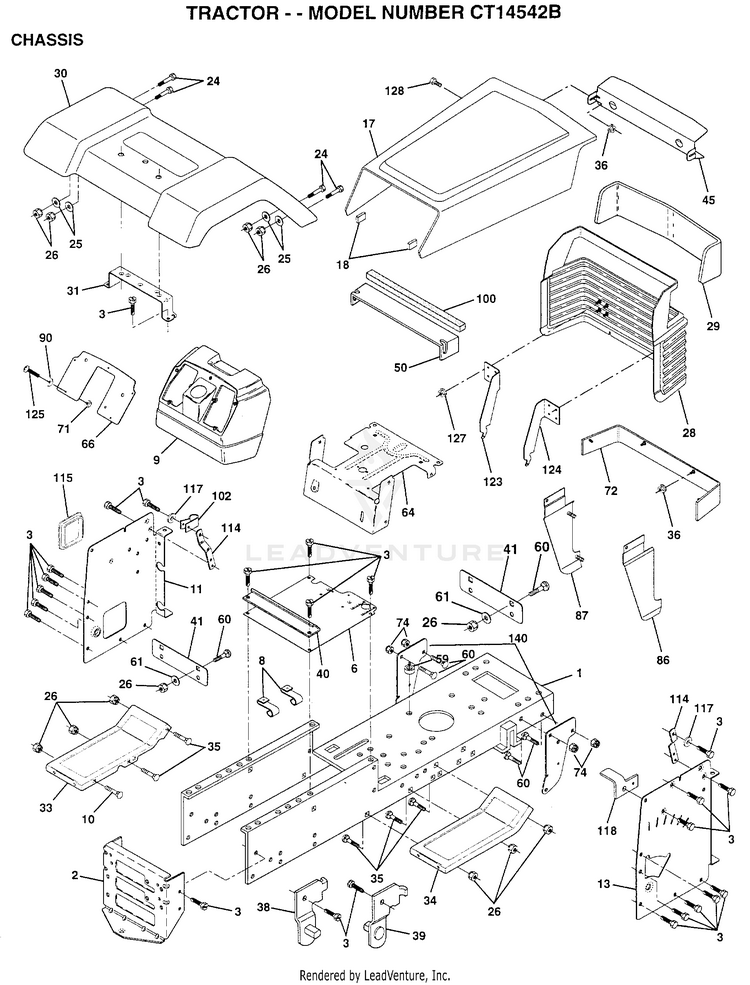

CHASSIS

...
...
1
CHASSIS WLDMT 11G HUS-151169
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH.PLASTIC.BLK HUS-145203
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH. HUS-145218
...
13
PANEL.DASH.RH. HUS-145217
...
17
HOOD/GRILLE ASM HUS-123801X550
...
18
SUB= 532126938 HUS-126938X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE ASM WELD HUS-140671
...
29
LENS T HUS-110898X
...
30
FENDER PNT HUS-140001X550
...
31
BRACKET SUPT FEND HUS-139976
...
33
FOOTREST.LH.PERF. HUS-105476X550
...
34
FOOTREST.RH.PERF. HUS-105475X550
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
45
SUB= 918132257 HUS-132257
...
50
"BAFFLE,HOOD" HUS-124046X
...
59
SUB= 9151R HUS-110436X
...
60
BOLT HUS-72140606
...
61
WASHER HUS-19171416
...
64
DASH.LOWER.LT HUS-150272
...
66
PLATE DASH SILKSC HUS-140943X011
...
71
NUT HXKEP 1/4X20 HUS-73640400
...
72
STRAP FENDER ASM HUS-110350X550
...
74
SUB= 73690600 HUS-73680600
...
86
PANEL SIDE RH ASM HUS-123764X550
...
87
PANEL SIDE LH ASM HUS-123765X550
...
90
WASHER PM HUS-19091216
...
100
FOAM STRIP T HUS-109458X
...
102
CLIP T HUS-2751R
...
114
BRACKET.SUPT.DASH HUS-145349
...
115
COVER ACCESS HUS-121794X
...
117
WASHER.SERRATED. HUS-144283
...
118
BRACKET.CLUTCH.MC HUS-145595
...
123
BRACKET.PICK.LH. HUS-149037
...
124
BRACKET.PICK.RH. HUS-149036
...
125
SCREW HUS-74180412
...
127
PAL NUT HUS-120579X
...
128
SCREW SPECIAL HUS-124201X
...
140
SUB= 158739 HUS-150556
...
xx
PLUG BUTTON T HUS-5479J
