Husqvarna CT131 - 96061030300 (2010-02) Riding Tractor

Model: CT131 - 96061030300 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

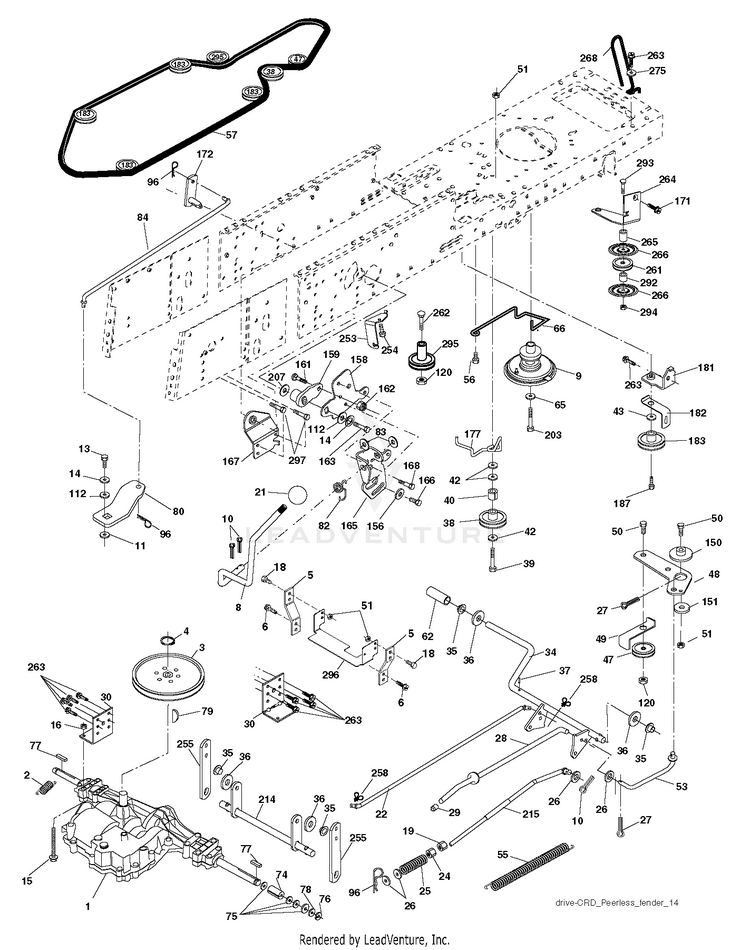

DRIVE

...
...
11
WASH-SHFT PLT LT HUS-532105701
...
172
SHAFT.ASM.SHIFT.FRT.CRD HUS-584324101
...
120
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
181
BRKT.PULLY.V-V-IDL.GRD.CRD HUS-583099101
...
163
Screws HUS-596230901
...
19
Nuts HUS-596322601
...
28
ROD, PARKING BRAKE HUS-532175765
...
10
Pins HUS-596029601
...
57
V-BELT.KEV.111" HUS-532165631
...
292
HUS-532404607
...
171
Bolts HUS-596564001
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
159
HUB.SHIFT HUS-532444304
...
264
BRACKET.IDLER.CHASS.NORAM.2010 HUS-583467201
...
215
HUS-532410142
...
253
HUS-532175028
...
47
PULLEY IDLER HUS-532139245
...
275
Washers HUS-596140201
...
83
BUSHING HUS-734117771
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
75
WASHER HUS-532121749
...
6
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
38
PULLEY.FLAT HUS-532165936
...
9
HUS-532408579
...
182
SERVICE KIT KEEPER.BELT.2.5".V HUS-529846301
...
76
E-RING LT HUS-812000001
...
165
SERVICE KIT BRACKET BRACKET.PI HUS-531149501
...
74
SPACER AXLE HUS-532137057
...
187
BOLT.5/16-18X1.25 HUS-817580520
...
266
SHIELD.IDLER.MOWER.CRD. HUS-583119101
...
55
SPRING, RETURN LT HUS-532105709
...
5
STRAP TORQUE HUS-532121520
...
295
PULLEY IDLER COMPOSITE HUS-532179114
...
42
GSPH HUS-596134901
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
296
HUS-532420920
...
4
RETAINING RING LT HUS-812000028
...
167
BRACKET.SUPT.SHIFT.CRD HUS-532165588
...
96
RETAINER M HUS-532004497
...
255
BRACE.SHAFT.BRAKE.MTG.CRD HUS-583070301
...
265
SPACER.NORAM.CRD HUS-583261101
...
22
ROD.BRAKE.MAIN.CRD HUS-583070201
...
21
KNOB T (1/2-HOLE) HUS-532106933
...
80
ARM SHIFT HUS-532145090
...
162
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
82
SHIFT SPRING HUS-532165711
...
254
SCREW 3/8-16X1 HUS-817000616
...
79
KEY STD (1373) DANA HUS-532125096
...
27
Pins HUS-596029501
...
177
KEEPER HUS-532165932
...
294
Nuts HUS-596219001
...
50
GSPW Bolts HUS-596136101
...
35
BEARING.NYLON HUS-532120183
...
15
Bolts HUS-595316601
...
168
BOLT.SHOULDER.5/16-18X HUS-532165492
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
39
BOLT HUS-874760644
...
36
Washers HUS-596933401
...
297
Screws HUS-596564002
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
18
Bolts HUS-596564401
...
48
BELLCRANK, CLUTCH HUS-532154407
...
29
PLUNGER CAP HUS-532071673
...
51
Nuts HUS-596322601
...
214
SHAFT.ASM.BRAKE.CRD HUS-583070401
...
8
ROD.SHIFT.LT/CRD X431 HUS-585139901
...
30
BRACKET TRANSAXLE HUS-532130807
...
150
BUSHING.BELLCRANK.GRD.DR HUS-532165850
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
262
BOLT HUS-872110622
...
112
Washers HUS-596039801
...
43
Washers HUS-596039901
...
1
TRANSAXLE PEERLESS 206-546 HUS-000000000
...
156
Washers HUS-596218801
...
268
GUARD.MUFFLER HUS-583122001
...
2
SPRING,BRAKE RETURN HUS-532146682
...
77
SQUARE KEY HUS-532123583
...
203
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
293
BOLT.RDHD SQNK 3/8-16 X 3-1/2 HUS-872140628
...
258
CLIP RETAINER HUS-532178062
...
183
PULLEY.V-IDLER. HUS-532199534
...
13
Bolts HUS-596136601
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
34
SHAFT, FOOT PEDAL HUS-532175578
...
78
WASHER HUS-532121748
...
161
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
56
SCREW.3/8-16 HUS-817060620
...
84
LINK HUS-532165621
...
151
Washers HUS-596135501
...
207
WASHER NYL HUS-532169845
...
261
CLG HUS-597025001
...
16
Hardware HUS-596040501
...
3
PULLEY TRANSAXLE.7" HUS-584450701
...
25
SPRING, BRAKE ROD HUS-532151332
...
62
PAD, FOOT PEDAL HUS-510089501
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
65
Washers HUS-596238901
...
40
SPACER T HUS-532124965
...
166
Bolts HUS-594094101
