Husqvarna CT131 - 96061022301 (2008-11) Riding Tractor

Model: CT131 - 96061022301 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

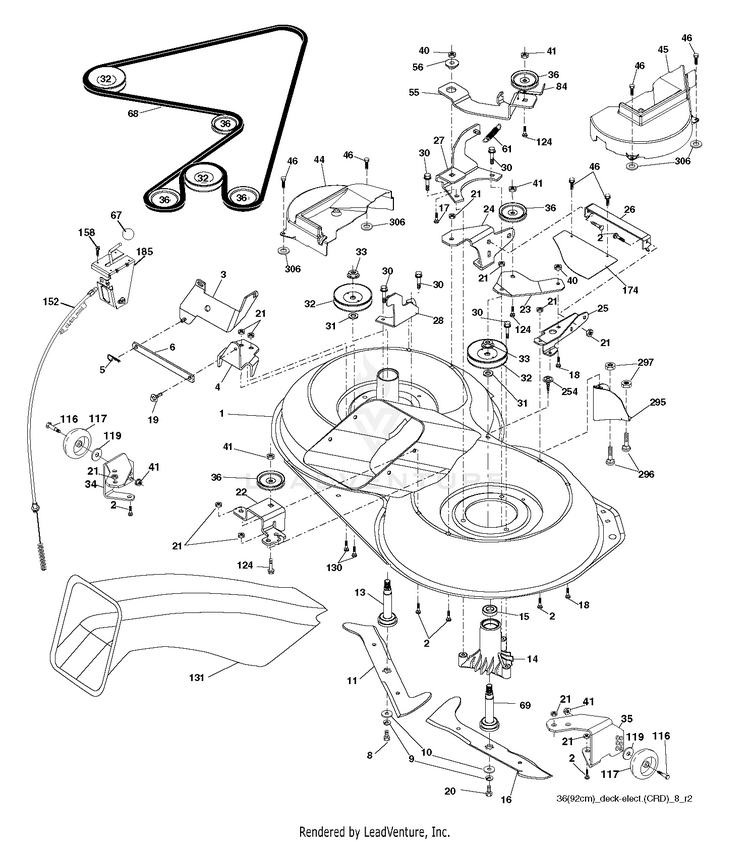

MOWER DECK / CUTTING DECK

...
...
19
BOLT SHD 5/16-18 HUS-532132827
...
69
SHAFT.ASM.W/LWR.BRG.RH.THREAD HUS-532165482
...
33
Nuts HUS-596134801
...
15
BEARING HUS-532110485
...
152
HUS-532176074
...
9
Washers HUS-596238701
...
2
GSPW Bolts HUS-595901601
...
26
BRACE.SUSP.FRONT.CRD/36.2006 HUS-583259301
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
254
SCREW 3/8-16X1 HUS-817000616
...
306
PALNUT 1/4 HUS-532423062
...
61
SPRING.TENSION.92.CRD.2006 HUS-583252601
...
16
NEEDS DESCRIPTION HUS-532186386
...
20
BOLT.3/8-24X1.25GR8. LHTHRD HUS-583117001
...
3
BRACKET HUS-532165569
...
27
BRACKET HUS-532165568
...
25
BRACKET HUS-532165244
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
23
BRACKET HUS-532165446
...
44
NEEDS DESCRIPTION HUS-532420752
...
119
GSPH HUS-596134901
...
24
BRACKET HUS-532165242
...
8
BOLT.3/8-24X1.25 GR8 HUS-583116901
...
55
ARM.IDLER.92.CRD./2006 HUS-583252901
...
295
NEEDS DESCRIPTION HUS-532412171
...
28
BRACKET HUS-532165567
...
13
KIT MANDREL W/NUT HUS-532137646
...
22
NEEDS DESCRIPTION HUS-532199590
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
45
NEEDS DESCRIPTION HUS-532420753
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
- - -
NEEDS DESCRIPTION (Std. Deck - Order separately gauge wheel components Key nos. 116-119) HUS-532422785
...
36
PULLEYS HUS-593787801
...
11
NEEDS DESCRIPTION HUS-532186385
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
68
BELT.DRIVE.92CM.CRD.2006 HUS-532402008
...
21
Hardware HUS-596040501
...
5
RETAINER-SPRNG RB HUS-532124670
...
116
Bolts HUS-596434404
...
158
Screws HUS-596437001
...
- - -
MANDREL SAM.CRD.LH.THRD HUS-583118301
...
4
BRACKET HUS-532165558
...
- - -
MANDREL.ASM.CRD Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included) HUS-583118201
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
17
Bolts HUS-595901101
...
40
Nuts HUS-596322601
...
131
CHUTE BAGGER HUS-532165661
...
34
NEEDS DESCRIPTION HUS-532400107
...
35
NEEDS DESCRIPTION HUS-532400106
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
41
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
174
NEEDS DESCRIPTION HUS-532400241
...
18
Bolts HUS-596136001
...
6
BAR.SWAY.92.CRD HUS-532165557
...
124
GSPW Bolts HUS-596136101
...
1
NEEDS DESCRIPTION HUS-532400108
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
84
Keepers HUS-597024901
...
130
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
296
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
297
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
10
WASHER.BLADE HUS-532140296
