Husqvarna CT131 - 96061022301 (2008-11) Riding Tractor

Model: CT131 - 96061022301 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
132
SHIELD.SIDE.CRD.FR.RH HUS-583383301
...
133
SHIELD.SIDE.CRD.FR.LH HUS-583383201
...
119
GUARD.ENGINE.CRD.LH HUS-583254301
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
4
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
31
TANK.FUEL.FRT.N/CAP.2.0GAL.DAP HUS-532407551
...
46
Washers HUS-596135301
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
120
GUARD.ENGINE.CRD.RH HUS-583254201
...
121
CLIPS HUS-532196688
...
123
SCREW, 5/16-18 X 1/2 HUS-817670508
...
72
Screws HUS-596134201
...
135
PALNUT.5/16" HUS-583400601
...
2
Screws HUS-596437001
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
78
SCREW.3/8-16 HUS-817060620
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
33
HOSE CLAMP HUS-532123487
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
KNOB.ERGO.EXTENDED.RED (1 2) HUS-532190695
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
38
VALUE.OIL.DRAIN HUS-532428287
...
134
PALNUT 1/4 HUS-532423062
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
122
SCREW.1/4-20X5/8 HUS-532137729

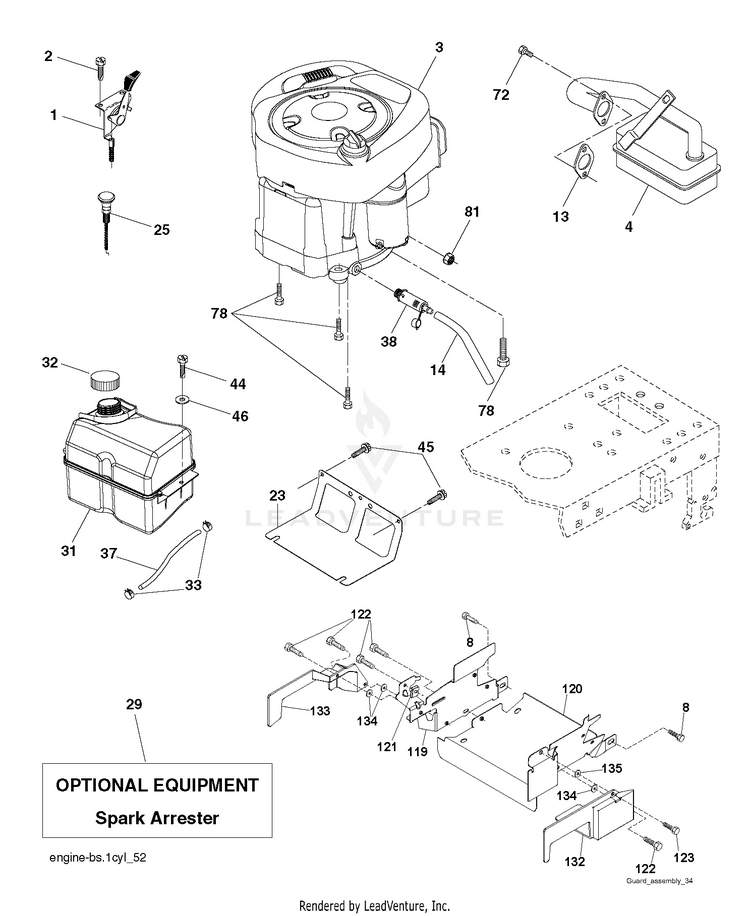

Schematic Image Zoomed
