Husqvarna CT131 - 96061022204 (2010-02) Riding Tractor

Model: CT131 - 96061022204 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

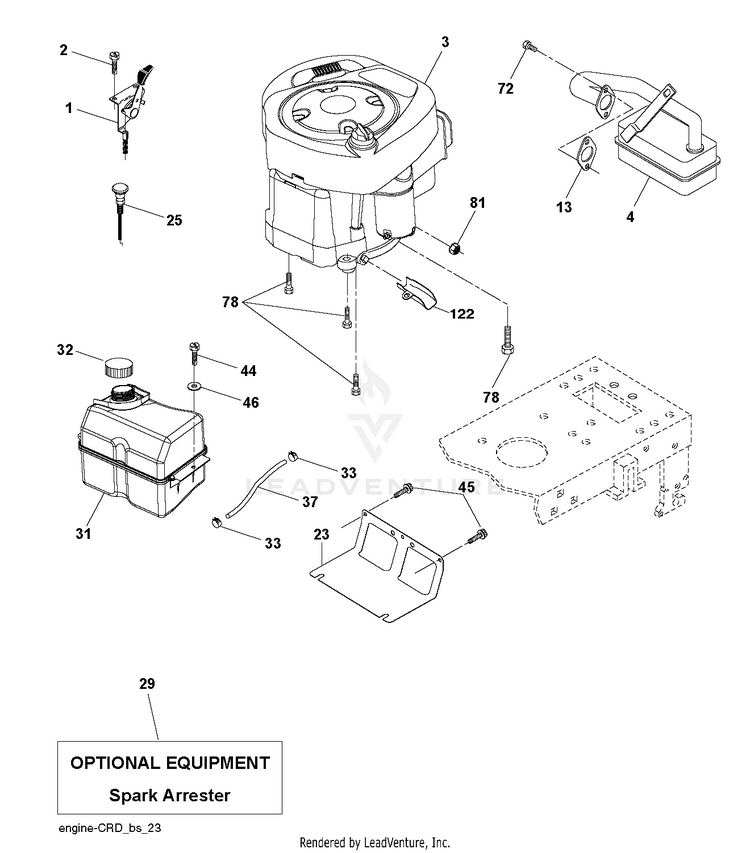

ENGINE

...
...
72
Screws HUS-596134201
...
31
TANK.FUEL.FRT.N/CAP.2.0GAL.DAP HUS-532407551
...
25
KNOB.ERGO.EXTENDED.RED (1 2) HUS-532190695
...
46
Washers HUS-596135301
...
2
Screws HUS-596437001
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
3
B&S MODEL 219807-1402-B1 HUS-000000000
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
4
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
122
EXTENSION DRAIN OIL HUS-532421922
...
33
HOSE CLAMP HUS-532123487
...
78
SCREW.3/8-16 HUS-817060620
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
